Top » Piese de schimb » PIESE BLACK & DECKER » BCSTR918B Type 1

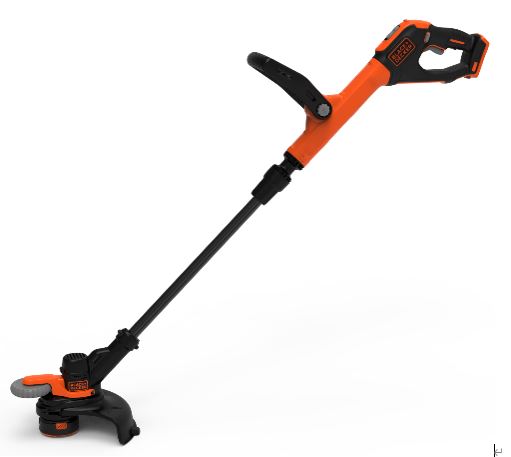

TRIMMER BLACK+DECKER BCSTR918B Type 1
[BCSTR918B Type 1]
TRIMMER BLACK+DECKER BCSTR918B Type 1
Click pentru a mari
Imagini suplimentare
TRIMMER BLACK+DECKER BCSTR918B Type 1
Click pentru a mari
TRIMMER BLACK+DECKER BCSTR918B Type 1
Click pentru a mari

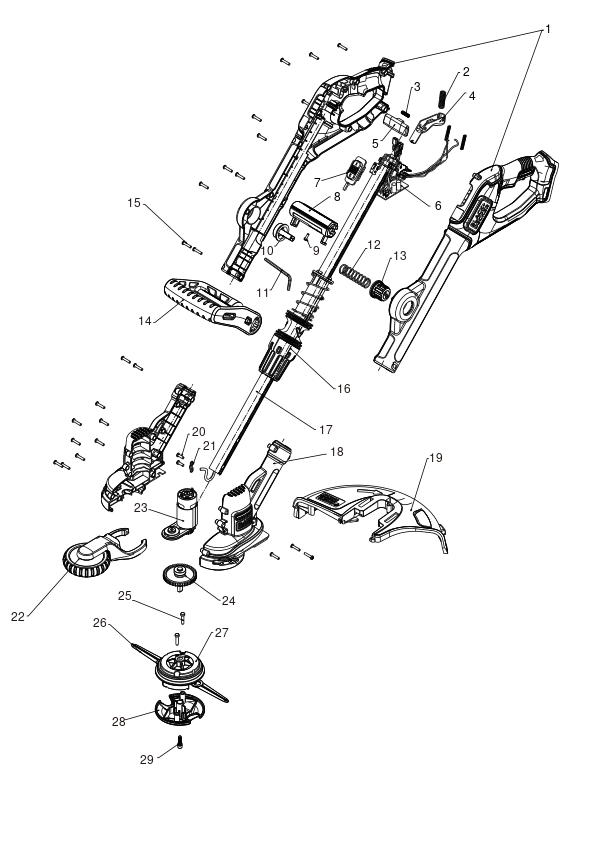

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE (N645355) 12361 RON
2 1 1 SPRING (90532295) 558 RON
3 1 1 SPRING COMPRESSION (90559867) 588 RON
4 1 1 TRIGGER (90621578) 588 RON
5 1 1 LOCK BUTTON (90621579) 588 RON
6 1 1 MODULE (NA321469) 15469 RON
7 1 1 BUTTON (90621582) 588 RON
8 1 1 HOUSING SA (NA486691) 1772 RON
9 1 1 SCREW (330019-31) 588 RON
10 1 1 BUTTON (90556608) 588 RON
11 1 1 WRENCH,HEX (90628309) 588 RON
12 1 1 SPRING (90559866) 588 RON
13 1 1 BUTTON (90554396-01N) 588 RON
14 1 1 HANDLE SA (90625191) 2796 RON
15 1 25 Screw M3.5X16 T15 (330019-03) 558 RON
16 1 1 COLLET (90626674) 2796 RON
17 1 1 TUBE SA (NA519089) 4355 RON
18 1 1 MOTOR HOUSING SA (90626114-01) 4355 RON
19 1 1 GUARD SA (NA556014) 4355 RON
20 1 2 SCREW (373158) 558 RON
21 1 1 CLAMP CORD CORNER (329301-00) 558 RON
22 1 1 WHEEL SA (NA518649) 2182 RON
23 1 1 MOTOR SA AND MOUNT (90636500) 12361 RON
24 1 1 SHAFT SA (NA597360) 741 RON
25 1 2 SCREW (90614124-02) 588 RON
26 1 2 BLADE (NA361285) 588 RON
27 1 1 HOUSING (NA384527) 4827 RON
28 1 1 COVER (NA361286) 1630 RON
29 1 1 BOLT (NA366622) 588 RON
