Top » Piese de schimb » PIESE BLACK & DECKER » STC1820PC Type 2

TRIMER CU FIR BLACK+DECKER STC1820PC Type 2
[STC1820PC Type 2]
TRIMER CU FIR BLACK+DECKER STC1820PC Type 2
Click pentru a mari
Imagini suplimentare
TRIMER CU FIR BLACK+DECKER STC1820PC Type 2
Click pentru a mari
TRIMER CU FIR BLACK+DECKER STC1820PC Type 2
Click pentru a mari
TRIMER CU FIR BLACK+DECKER STC1820PC Type 2
Click pentru a mari

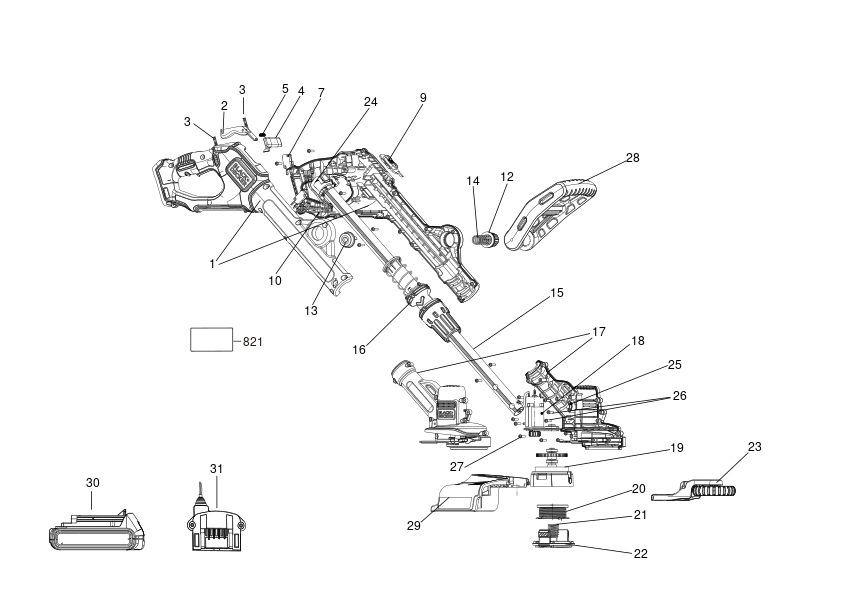

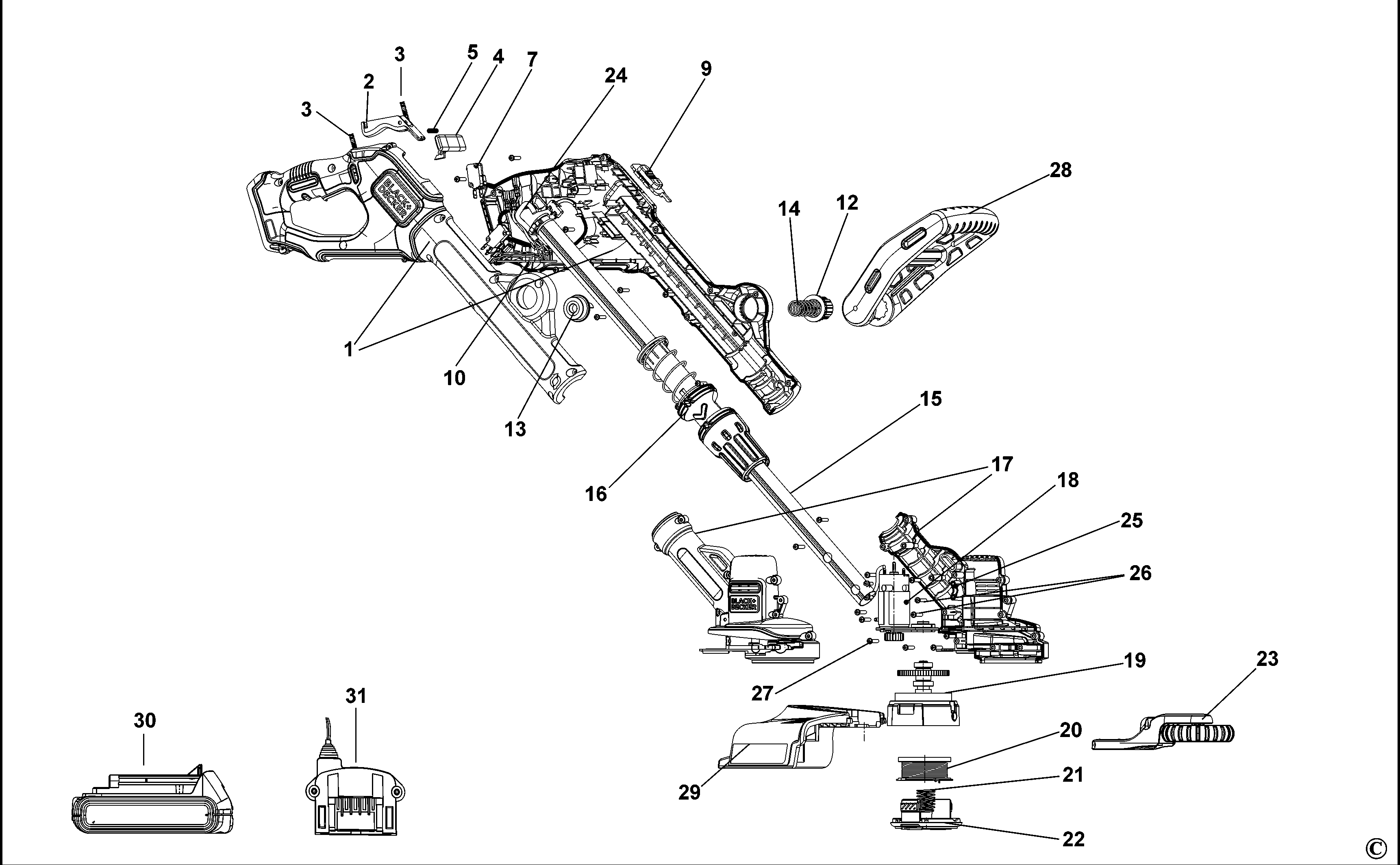

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE (N645355) 12361 RON
2 1 1 TRIGGER (90621578) 588 RON
3 1 2 SPRING (244053-00) 558 RON
4 1 1 LOCK BUTTON (90621579) 588 RON
5 1 1 SPRING COMPRESSION (90559867) 588 RON
7 1 1 SWITCH (90553427) 2124 RON
9 1 1 BUTTON (90621582) 588 RON
10 1 1 SWITCH AND PCB SA (N547256) 12361 RON
10 1 1 NB452884 - Indisponibil
12 1 1 BUTTON (90554396-01N) 588 RON
13 1 1 BUTTON (90556608) 588 RON
14 1 1 SPRING (90559866) 588 RON
15 1 1 TUBE SA (90621686) 3954 RON
16 1 1 COLLET (90626674) 2796 RON
17 1 1 MOTOR HOUSING SA (90626114-01) 4355 RON
18 1 1 MOTOR SA AND MOUNT (90636498) 12361 RON
18 1 1 NB452884 - Indisponibil
19 1 1 SPINDLE AND GEAR SA (90636499) 741 RON
20 1 1 SPOOL AND LINE (90601198N) 1772 RON
21 1 1 SPRING (90566944) 558 RON
22 1 1 COVER SPOOL (385022-03N) 82 RON
23 1 1 WHEEL SA (90624612) 2556 RON
24 1 1 CABLE (90624719-01) 5370 RON
25 1 1 CLAMP CORD CORNER (329301-00) 558 RON
26 1 2 SCREW (373158) 558 RON
27 1 22 Screw M3.5X16 T15 (330019-03) 558 RON
28 1 1 HANDLE SA (90625191) 2796 RON
29 1 1 GUARD SA (90630969) 4355 RON
30 1 1 BATTERY 18V - 2.0AH - 36WH (N879820) 40734 RON
30 1 1 90617054 - Indisponibil
31 1 1 CHARGER SA (90590289-05) 15469 RON
31 1 1 90590289-01 - Indisponibil
821 1 1 RATING LABEL (NA012123) 588 RON
