Top » Piese de schimb » PIESE BLACK & DECKER » STC1820EPC Type 2

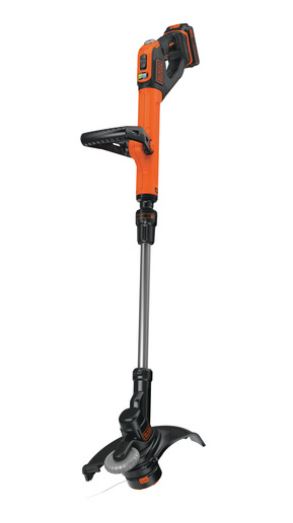

TRIMER CU FIR BLACK+DECKER STC1820EPC Type 2
[STC1820EPC Type 2]
TRIMER CU FIR BLACK+DECKER STC1820EPC Type 2
Click pentru a mari
Imagini suplimentare
TRIMER CU FIR BLACK+DECKER STC1820EPC Type 2
Click pentru a mari
TRIMER CU FIR BLACK+DECKER STC1820EPC Type 2
Click pentru a mari

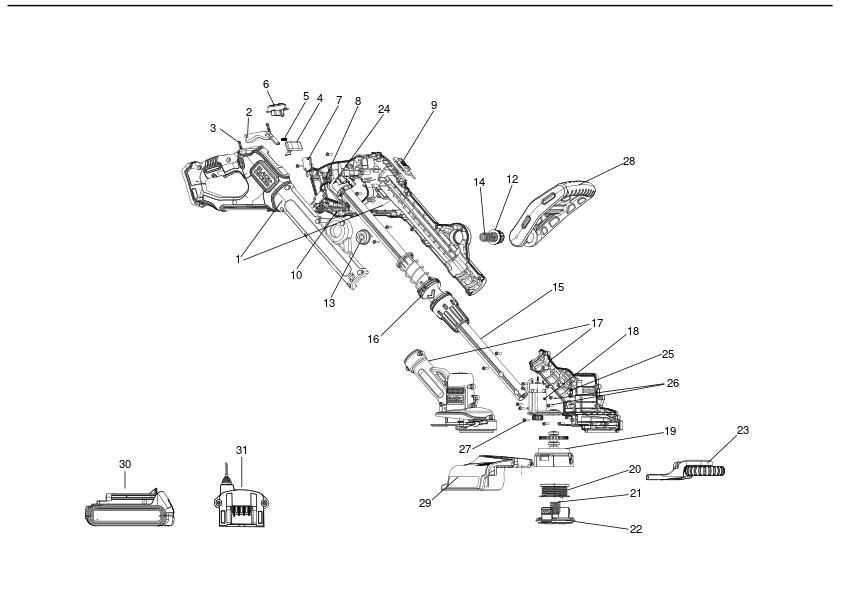

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE SA (N582159) 12361 RON
2 1 1 TRIGGER (90621578) 588 RON
3 1 2 SPRING (244053-00) 558 RON
4 1 1 LOCK BUTTON (90621579) 588 RON
5 1 1 SPRING COMPRESSION (90559867) 588 RON
6 1 1 BUTTON (90621581) 668 RON
7 1 1 SWITCH (90553427) 2124 RON
8 1 1 LEADWIRE (90625490) 944 RON
9 1 1 BUTTON (90621582) 588 RON
10 1 1 SWITCH AND PCB SA (N547256) 12361 RON
12 1 1 BUTTON (90554396-01N) 588 RON
13 1 1 BUTTON (90556608) 588 RON
14 1 1 SPRING (90559866) 588 RON
15 1 1 TUBE SA (90621686) 3954 RON
16 1 1 COLLET (90626674) 2796 RON
17 1 1 MOTOR HOUSING SA (90626114-01) 4355 RON
18 1 1 MOTOR SA AND MOUNT (90636500) 12361 RON
19 1 1 SPINDLE AND GEAR SA (90636499) 741 RON
20 1 1 SPOOL AND LINE (90601198N) 1772 RON
21 1 1 SPRING (90623660) 588 RON
22 1 1 COVER (90624846) 82 RON
23 1 1 WHEEL SA (90624612) 2556 RON
24 1 1 CABLE (N645486) 4355 RON
25 1 1 CLAMP CORD CORNER (329301-00) 558 RON
26 1 2 SCREW (373158) 558 RON
27 1 22 Screw M3.5X16 T15 (330019-03) 558 RON
28 1 1 HANDLE SA (90625191) 2796 RON
29 1 1 GUARD SA (90630969) 4355 RON
30 1 1 BATTERY 18V - 2.0AH - 36WH (N879820) 40734 RON
31 1 1 CHARGER SA (90590287-06) 16689 RON
