TRIMER CU FIR BLACK+DECKER GLC3630L25 Type 1
[GLC3630L25 Type 1]

Imagini suplimentare

Click pentru a mari

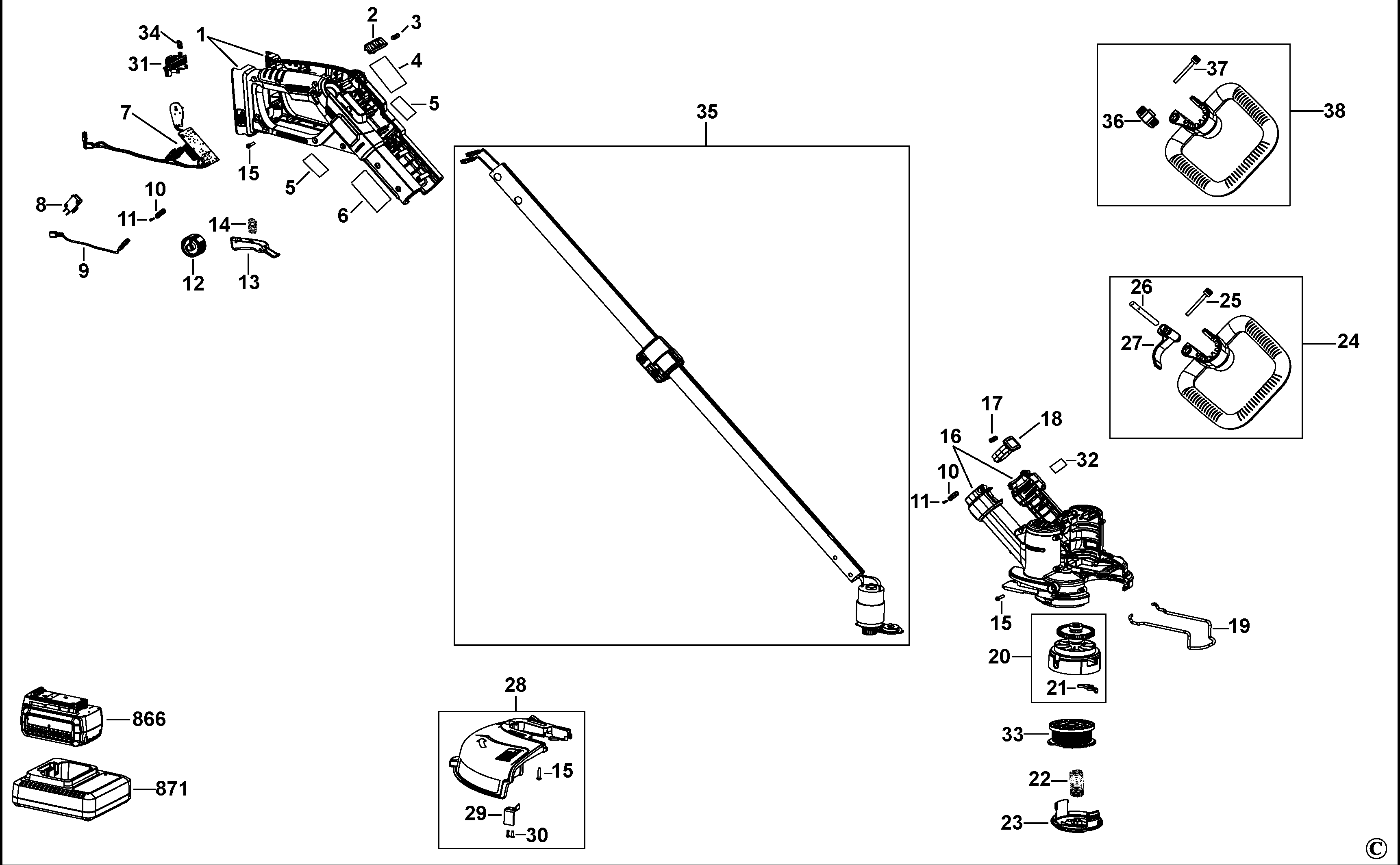

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)	Cumpara
1	1	1	CLAMSHELL SET (90567868N)	66⁸⁸ RON
2	1	1	ACTUATOR (90572573)	5⁵⁸ RON
3	1	1	SPRING (90548007)	5⁵⁸ RON
4	1	1	LABEL (90573660)	5⁵⁸ RON
5	1	2	BRAND LABEL (90573659)	5⁵⁸ RON
6	1	1	N643677	-	Indisponibil
7	1	1	PCB SA (90624000)	232⁴⁴ RON
8	1	1	SWITCH (90569937)	23⁴⁷ RON
9	1	1	LEAD SA (90576510)	8⁹³ RON
10	1	2	CLAMP CORD CORNER (329301-00)	5⁵⁸ RON
11	1	4	SCREW (373158)	5⁵⁸ RON
12	1	1	WHEEL SPEED (90572142)	8⁹³ RON
13	1	1	TRIGGER (90567876)	5⁵⁸ RON
14	1	1	SPRING (244053-00)	5⁵⁸ RON
15	1	19	SCREW (747329)	5⁵⁸ RON
16	1	1	CLAMSHELL SET (90570298N)	90¹² RON
17	1	1	SPRING (90550451)	5⁵⁸ RON
18	1	1	BUTTON (90570833)	7⁸¹ RON
19	1	1	GUIDE (90571330)	11¹⁷ RON
20	1	1	SPINDLE & GEAR SA (90579838)	68²¹ RON
21	1	1	ACTUATOR (90560220)	5⁵⁸ RON
22	1	1	SPRING (90566944)	5⁵⁸ RON
23	1	1	COVER SPOOL (385022-03N)	8² RON
24	1	1	HANDLE SA (90570529)	79⁴⁰ RON
25	1	1	000000-00	-	Indisponibil
26	1	1	PIN (90570514)	14⁵² RON
27	1	1	000000-00	-	Indisponibil
28	1	1	90575864N	-	Indisponibil
28	1	1	GUARD SA (90575864)	41³⁷ RON
29	1	1	BLADE (90559116)	7⁸¹ RON
30	1	2	SCREW (681914-00)	5⁵⁸ RON
31	1	1	TERMINAL BLOCK (90568745)	30¹⁸ RON
32	1	1	LABEL (90573894)	5⁵⁸ RON
33	1	1	SPOOL AND LINE (90564281N)	17⁷² RON
34	1	2	SPRING (90516498)	5⁵⁸ RON
35	1	1	HANDLE TUBE SA (90582104)	375⁷⁹ RON
36	1	1	WING NUT (90570279-01)	8⁹³ RON
37	1	1	BOLT (90580088)	5⁵⁸ RON
38	1	1	HANDLE SA (90580099)	50³¹ RON
866	1	1	BATTERY 36V - 2.5AH - 90WH-BL2536-XJ (N879836)	1138²² RON
866	1	1	N651373	-	Indisponibil
871	1	1	CHARGER 36V (90616337-01)	272⁸⁷ RON
