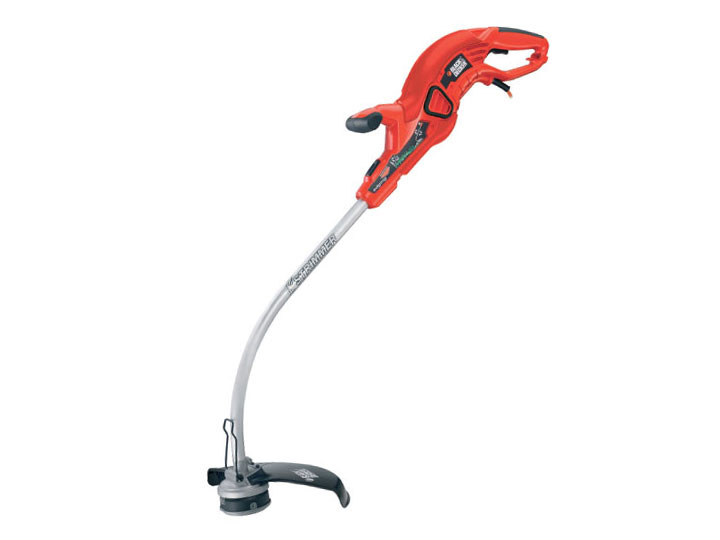

TRIMER CU FIR BLACK+DECKER GL716 Type 1
[GL716 Type 1]
TRIMER CU FIR BLACK+DECKER GL716 Type 1
Click pentru a mari
Imagini suplimentare
TRIMER CU FIR BLACK+DECKER GL716 Type 1
Click pentru a mari
TRIMER CU FIR BLACK+DECKER GL716 Type 1
Click pentru a mari

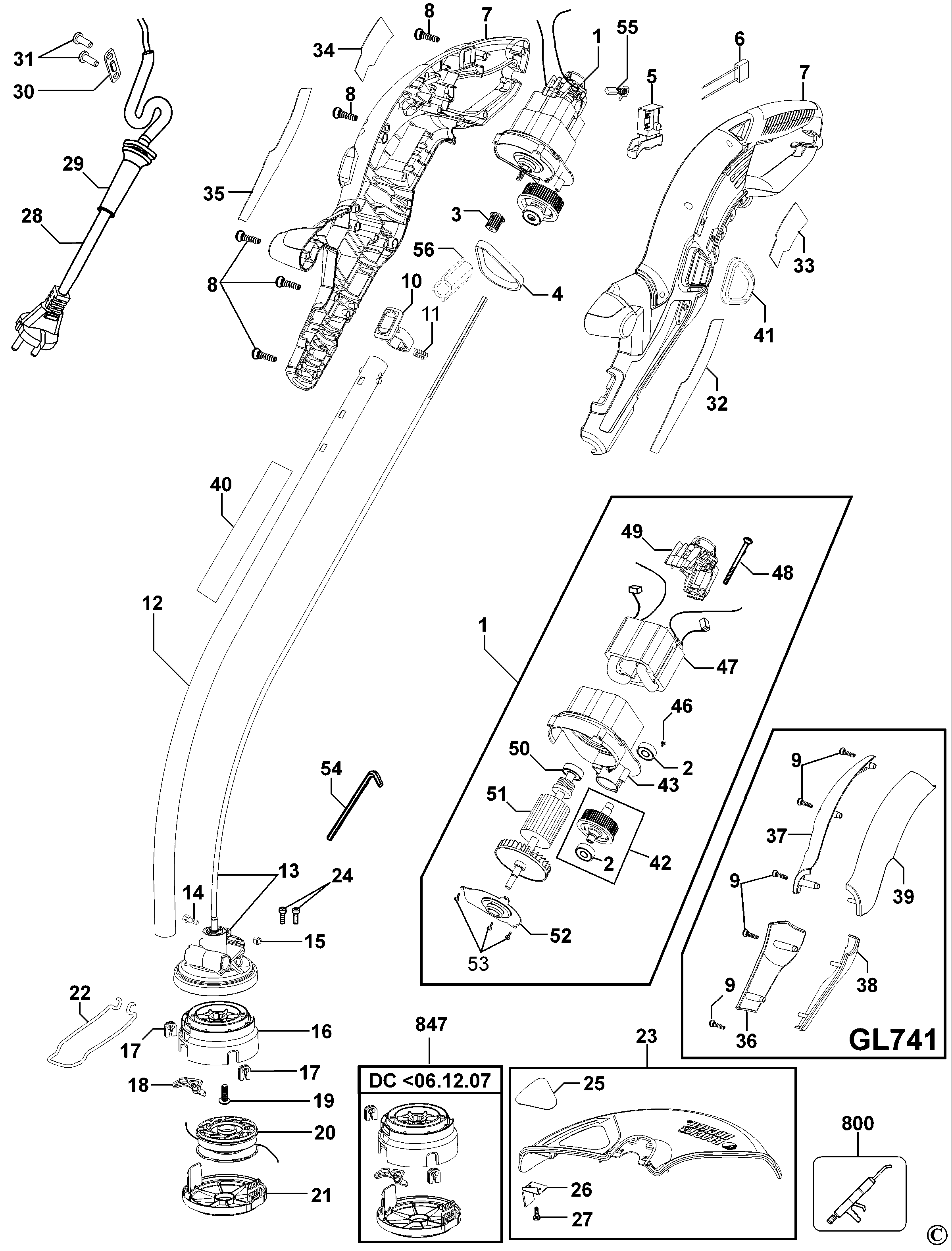

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR SA (492236-01) 53015 RON
1 1 1 MOTOR SA (90564816) 28296 RON
1 1 1 492236-03 - Indisponibil
2 1 2 574853-15 - Indisponibil
3 1 1 DRIVE PULLEY (478626-00) 893 RON
4 1 1 BELT GL716 GL741 (477486-00) 2795 RON
4 1 1 BELT (90552006) 2347 RON
5 1 1 SWITCH (479734-00) 2124 RON
6 1 1 CAPACITOR (793189-04) 893 RON
7 1 1 CLAMSHELL (479731-00) 12861 RON
8 1 15 SCREW (747329) 558 RON
10 1 1 BUTTON (478517-01) 781 RON
11 1 1 SPRING (580936-00) 558 RON
12 1 1 TUBE SA (478527-01) 10512 RON
13 1 1 FLEXIBLE SHAFT (492239-00) 14315 RON
14 1 1 BOLT (798754-03) 558 RON
15 1 1 NUT M5 (477344-00) 558 RON
16 1 1 HOUSING (478728-00) 2124 RON
16 1 1 HOUSING (90529877) 2347 RON
17 1 2 EYELET (478730-00) 781 RON
17 1 2 EYELET (495570-00) 781 RON
18 1 1 LEVER (479750-00) 558 RON
19 1 1 "SCREW M5 * 14""" (371954-01) 558 RON
20 1 1 SPOOL SA (478742-00) 2795 RON
20 1 1 SPOOL & LINE GL716 GL741 (478742-04) 3018 RON
20 1 1 SPOOL SA (90553688) 2124 RON
21 1 1 478732-00 - Indisponibil
21 1 1 478732-02 - Indisponibil
21 1 1 000000-06 - Indisponibil
21 1 1 COVER SPOOL (90529055-01) 2124 RON
21 1 1 COVER SPOOL (90529055-00) 2124 RON
22 1 1 GUIDE (479698-00) 1788 RON
23 1 1 "GUARD 12""" (477488-00) 2795 RON
23 1 1 "GUARD 12""" (479749-00) 3466 RON
24 1 2 SERVICE KIT (495681-00) 3018 RON
24 1 2 SCREW (330024-06) 588 RON
25 1 1 LABEL (489903-01) 781 RON
26 1 1 BLADE (487837-00) 781 RON
27 1 1 SCREW (681914-00) 558 RON
28 1 1 799370-21 - Indisponibil
29 1 1 CORD PROTECTOR (770235) 558 RON
30 1 1 CORD CLAMP (821070-00) 558 RON
30 1 1 CLAMP CORD (821070) 558 RON
31 1 2 SCREW NO.6 X 12.7 (821057) 558 RON
32 1 1 LABEL (477494-01) 105 RON
33 1 1 BRAND LABEL (477492-01) 781 RON
34 1 1 RATING PLATE (477495-04) 781 RON
34 1 1 RATING PLATE (1006353-03) 781 RON
35 1 1 LABEL (477491-01) 105 RON
40 1 1 TUBE BRAND LABEL (580099-00) 7940 RON
41 1 1 FRAME (479406-00) 893 RON
42 1 1 478515-00 - Indisponibil
43 1 1 478623-00 - Indisponibil
46 1 2 491791-00 - Indisponibil
47 1 1 492242-01 - Indisponibil
47 1 1 492242-00 - Indisponibil
48 1 2 000000-00 - Indisponibil
49 1 1 478622-00 - Indisponibil
50 1 1 BEARING (478621-00) 1229 RON
50 1 1 Ball Bearing. CW DW810 (605040-07) 1788 RON
51 1 1 492250-01 - Indisponibil
52 1 1 479735-00 - Indisponibil
53 1 3 000000-00 - Indisponibil
54 1 1 HEX KEY 3 MM (487848-01) 558 RON
55 1 1 BRUSH PAIR 230V (1005006-00) 4472 RON
56 1 1 SUPPORT. REAR (479952-00) 781 RON
800 1 1 GREASE (492241-00) 6821 RON
847 1 1 SPOOL SA (90536853) 4472 RON
