TRIMER CU FIR BLACK+DECKER GL651SB Type 1
[GL651SB Type 1]

Imagini suplimentare

Click pentru a mari

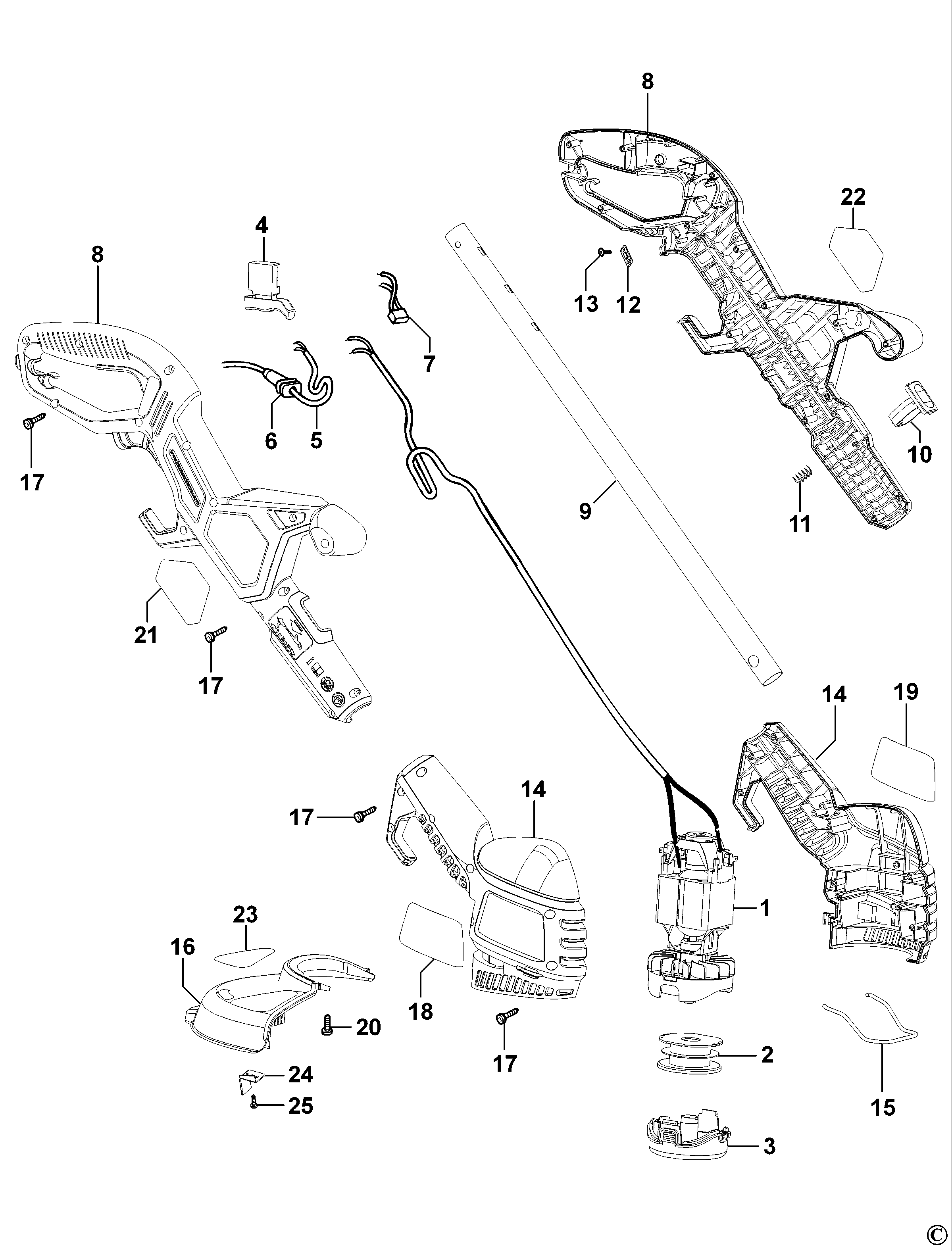

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)	Cumpara
1	1	1	MOTOR SA 230V (90510156)	343³⁶ RON
2	1	2	SPOOL & LINE GL680 GL350 GL670 (575462-00)	30¹⁸ RON
3	1	1	COVER SPOOL GL350 (90511610)	21²⁴ RON
4	1	1	SWITCH (479734-00)	21²⁴ RON
5	1	1	799370-21	-	Indisponibil
6	1	1	CORD PROTECTOR (770235)	5⁵⁸ RON
7	1	1	CAPACITOR (793189-04)	8⁹³ RON
8	1	1	CLAMSHELL PAIR (90505526)	115¹⁹ RON
9	1	1	TUBE (90505520)	41³⁷ RON
9	1	1	90515849	-	Indisponibil
10	1	1	ACTUATOR (90505515)	10⁵ RON
11	1	1	SPRING (580936-00)	5⁵⁸ RON
12	1	1	CLAMP CORD CORNER (329301-00)	5⁵⁸ RON
13	1	2	SCREW NO.6 X 12.7 (821057)	5⁵⁸ RON
14	1	1	HOUSING PAIR (90505510)	128⁶¹ RON
15	1	1	GUIDE (90505519)	10⁵ RON
16	1	1	GUARD 250MM (90507566)	34⁶⁶ RON
17	1	22	SCREW (747329)	5⁵⁸ RON
18	1	1	RATING PLATE (90511749)	7⁸¹ RON
19	1	1	BRAND LABEL (90505533)	7⁸¹ RON
20	1	1	SCREW NO 6*19 (371803)	5⁵⁸ RON
21	1	1	BRAND LABEL (90505536)	8⁹³ RON
22	1	1	BRAND LABEL (90505535)	8⁹³ RON
23	1	1	LABEL (489903-01)	7⁸¹ RON
24	1	1	BLADE (90507569)	7⁸¹ RON
24	1	1	BLADE (90541495)	7⁸¹ RON
25	1	2	SCREW (681914-00)	5⁵⁸ RON
