Top » Piese de schimb » PIESE BLACK & DECKER » BCSTA536 Type 1

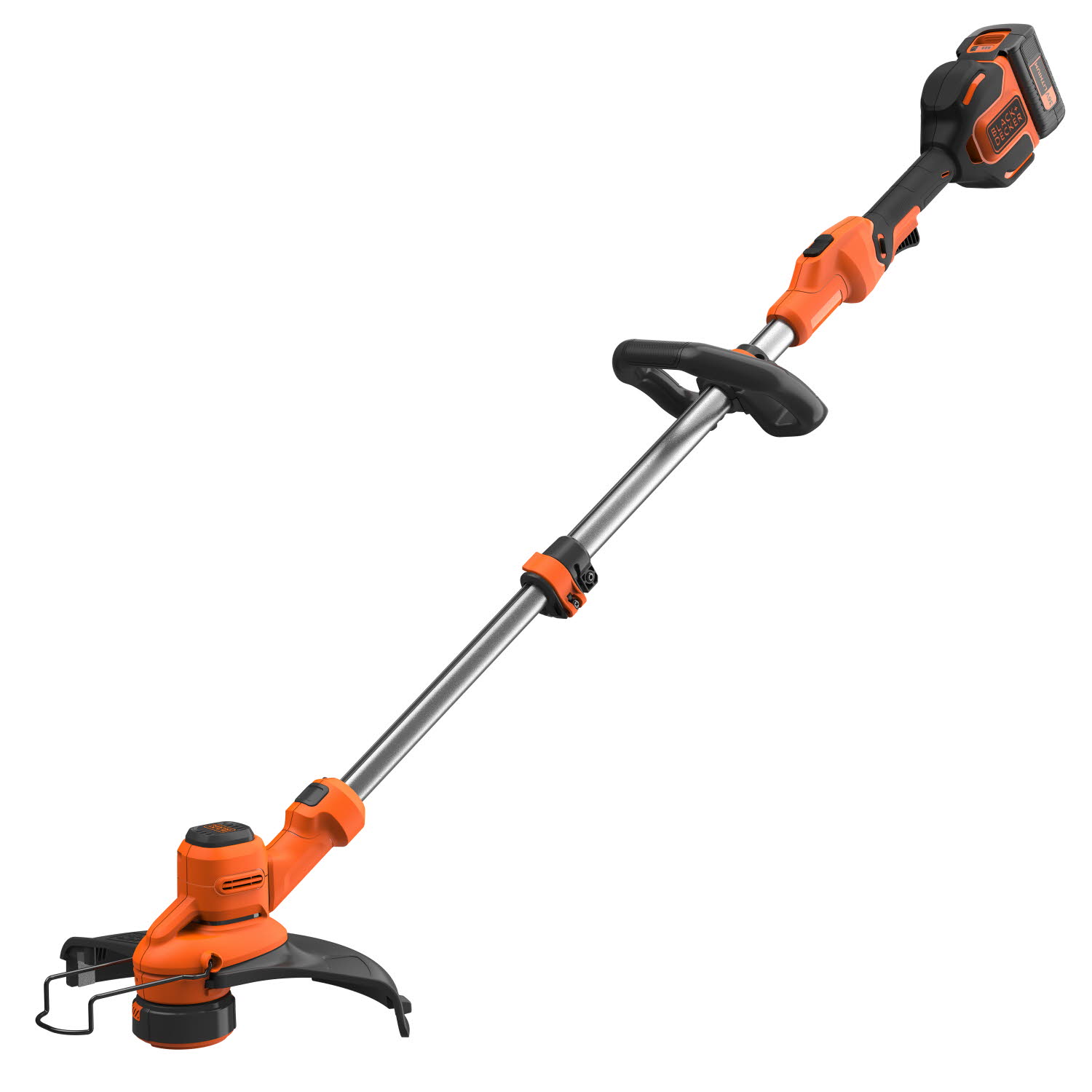

TRIMER CU FIR BLACK+DECKER BCSTA536 Type 1
[BCSTA536 Type 1]
TRIMER CU FIR BLACK+DECKER BCSTA536 Type 1
Click pentru a mari
Imagini suplimentare
TRIMER CU FIR BLACK+DECKER BCSTA536 Type 1
Click pentru a mari
TRIMER CU FIR BLACK+DECKER BCSTA536 Type 1
Click pentru a mari

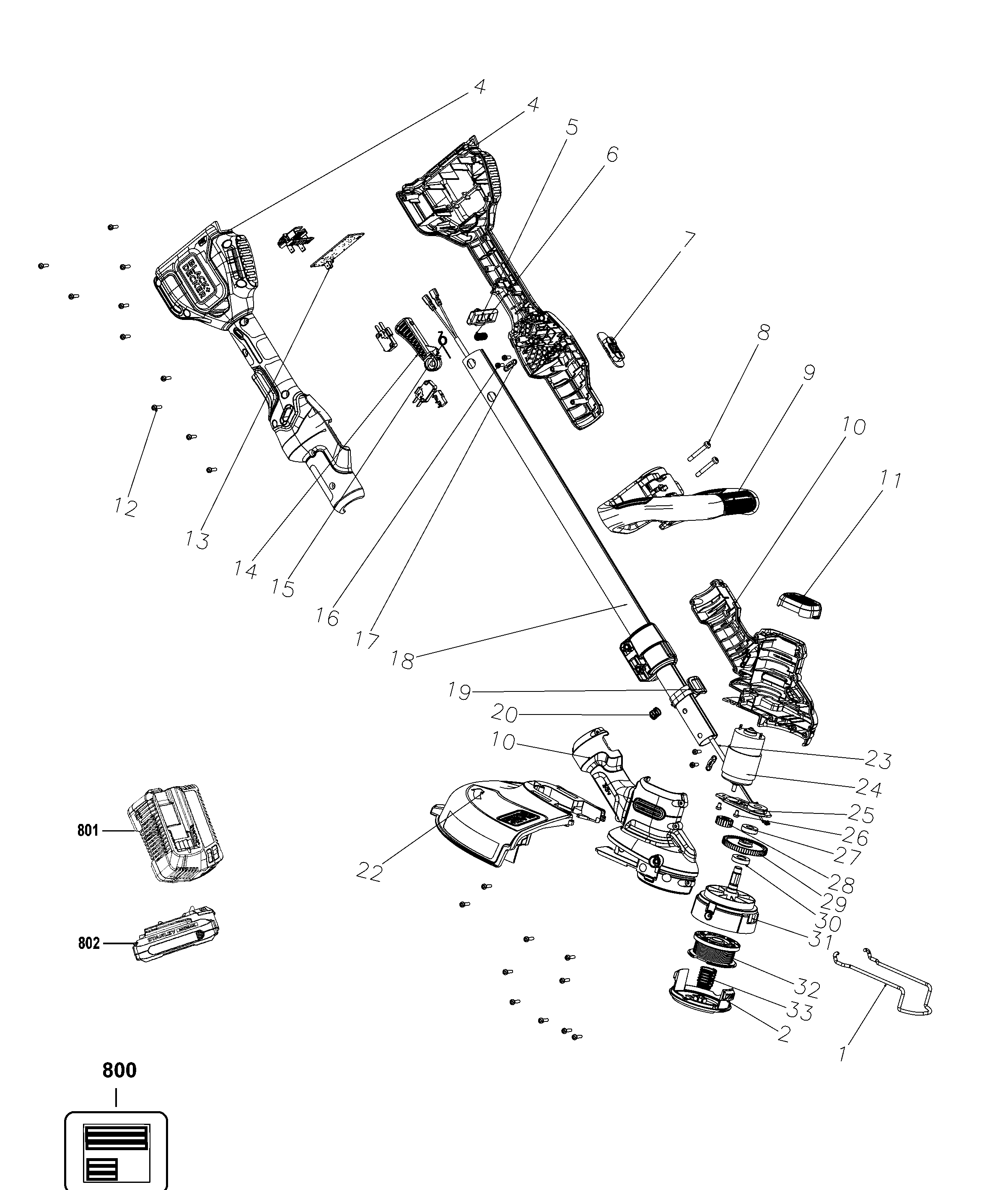

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GUIDE (90571331C) 114 RON
2 1 1 COVER SPOOL (385022-03N) 82 RON
4 1 1 HANDLE SA (N744770) 10241 RON
5 1 1 BUTTON LOCK-OFF (N696027) 668 RON
6 1 1 SPRING (N599047) 588 RON
7 1 1 BUTTON (N692258) 588 RON
8 1 1 SCREW (90579167) 588 RON
9 1 1 HANDLE (N744766) 5370 RON
10 1 1 HOUSING SA (N688203) 4827 RON
11 1 1 CAP (N688407) 944 RON
12 1 20 Screw M3.5X16 T15 (330019-03) 558 RON
13 1 1 PCB SA (N733532) 27287 RON
14 1 1 TRIGGER (N744767) 668 RON
15 1 1 SPRING (90612024) 588 RON
16 1 4 SCREW (373158) 558 RON
17 1 2 CLAMP CORD (821070) 558 RON
18 1 1 POLE PIECE SA (N744765) 20216 RON
19 1 1 BUTTON (90570833) 781 RON
20 1 1 SPRING (90550451) 558 RON
22 1 1 GUARD SA (N770557) 4355 RON
23 1 1 CABLE (N745161) 9012 RON
24 1 1 MOTOR (90588547) 18568 RON
25 1 1 BEARING PLATE (90570258-01) 82 RON
26 1 1 SCREW (90577146) 588 RON
27 1 1 BEARING (330003-38) 6688 RON
28 1 1 PINION (90575586) 668 RON
29 1 1 Gear (90551148) 944 RON
30 1 1 BEARING (90559833) 1318 RON
31 1 1 HOUSING GEAR (N501797) 741 RON
32 1 1 SPOOL AND LINE (90564281N) 1772 RON
33 1 1 SPRING (90566944) 558 RON
800 1 1 RATING LABEL (N702133) 588 RON
801 1 1 CHARGER 36V (90616337-02) 44688 RON
802 1 1 BATTERY 36V - 2.0AH - 72WH (N694215) 78485 RON
802 1 1 BATTERY 36V - 2.5AH - 90WH-BL2536-XJ (N879836) 113822 RON
802 1 1 N651373 - Indisponibil
