Top » Piese de schimb » PIESE BLACK & DECKER » GLC3630L Type H1

TRIMER CU ACUMULATOR BLACK+DECKER GLC3630L Type H1
[GLC3630L Type H1]
TRIMER CU ACUMULATOR BLACK+DECKER GLC3630L Type H1
Click pentru a mari
Imagini suplimentare
TRIMER CU ACUMULATOR BLACK+DECKER GLC3630L Type H1
Click pentru a mari
TRIMER CU ACUMULATOR BLACK+DECKER GLC3630L Type H1
Click pentru a mari

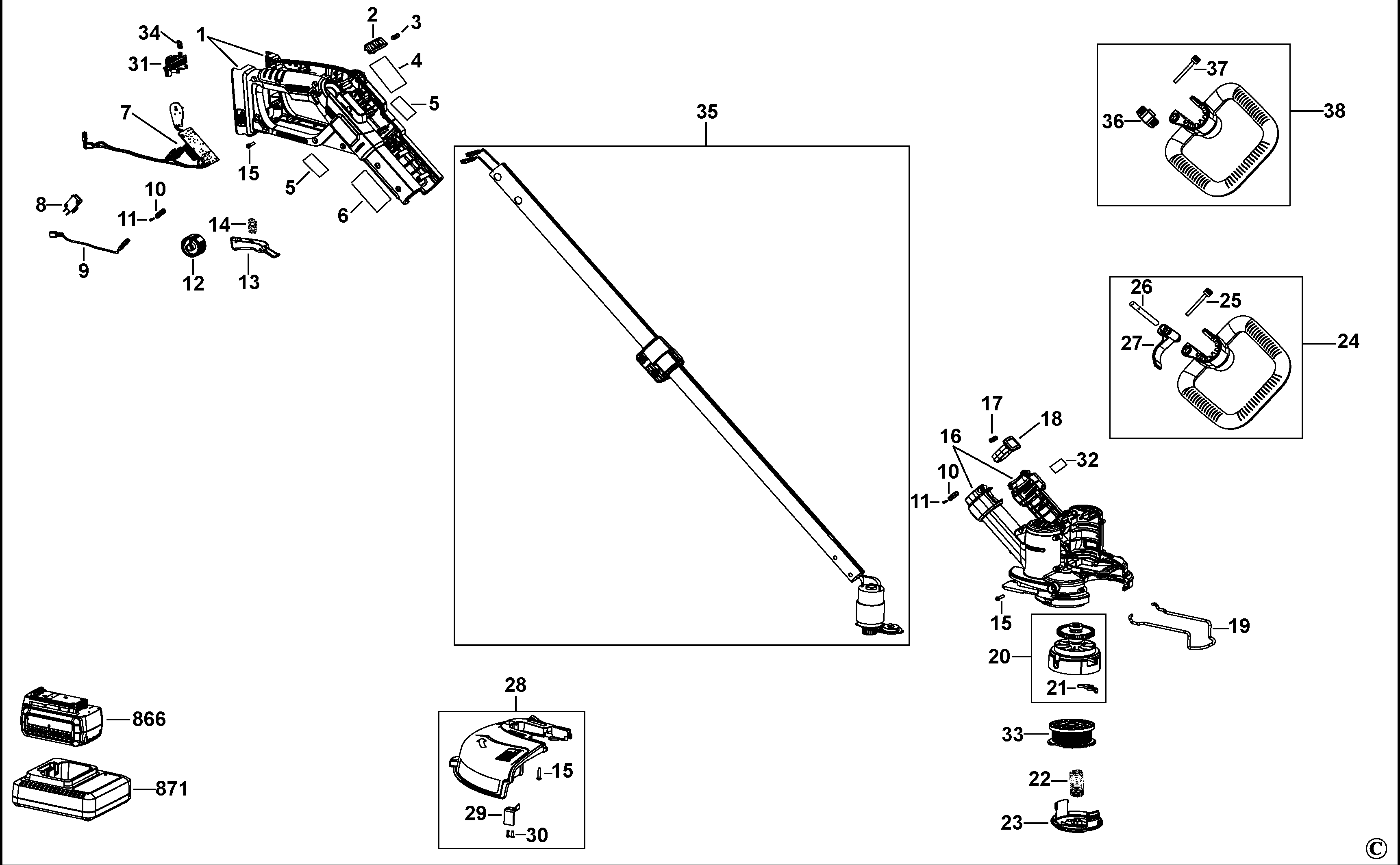

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (90582102) 6821 RON
1 1 1 CLAMSHELL SET (90567868N) 6688 RON
2 1 1 ACTUATOR (90572573) 558 RON
3 1 1 SPRING (90548007) 558 RON
4 1 1 LABEL (90573660) 558 RON
5 1 2 BRAND LABEL (90573659) 558 RON
6 1 1 RATING PLATE (90573662) 781 RON
6 1 1 90603077N - Indisponibil
7 1 1 PCB SA (90624000) 23244 RON
7 1 1 PCB SA (90576509) 20467 RON
8 1 1 SWITCH (90569937) 2347 RON
9 1 1 LEAD SA (90576510) 893 RON
10 1 2 CLAMP CORD CORNER (329301-00) 558 RON
11 1 4 SCREW (373158) 558 RON
12 1 1 WHEEL SPEED (90572142) 893 RON
13 1 1 TRIGGER (90567876) 558 RON
14 1 1 SPRING (244053-00) 558 RON
15 1 19 SCREW (747329) 558 RON
16 1 1 90570298 - Indisponibil
16 1 1 CLAMSHELL SET (90582103) 7940 RON
16 1 1 CLAMSHELL SET (90570298N) 9012 RON
17 1 1 SPRING (90550451) 558 RON
18 1 1 BUTTON (90570833) 781 RON
19 1 1 GUIDE (90571330) 1117 RON
20 1 1 SPINDLE & GEAR SA (90579838) 6821 RON
21 1 1 ACTUATOR (90560220) 558 RON
22 1 1 SPRING (90566944) 558 RON
23 1 1 COVER (385022-03) 1788 RON
23 1 1 COVER SPOOL (385022-03N) 82 RON
24 1 1 HANDLE SA (90570529) 7940 RON
25 1 1 90574054 - Indisponibil
26 1 1 PIN (90570514) 1452 RON
27 1 1 90570513 - Indisponibil
28 1 1 90575864N - Indisponibil
28 1 1 GUARD SA (90575864) 4137 RON
29 1 1 BLADE (90559116) 781 RON
30 1 2 SCREW (681914-00) 558 RON
31 1 1 TERMINAL BLOCK (90568745) 3018 RON
32 1 1 LABEL (90573894) 558 RON
33 1 1 SPOOL & LINE (90564281) 190 RON
33 1 1 SPOOL AND LINE (90564281N) 1772 RON
34 1 2 SPRING (90516498) 558 RON
35 1 1 HANDLE TUBE SA (90582104) 37579 RON
36 1 1 WING NUT (90570279-01) 893 RON
37 1 1 BOLT (90580088) 558 RON
38 1 1 HANDLE SA (90580099) 5031 RON
866 1 1 BATTERY PACK (90567304-00) 153454 RON
866 1 1 BATTERY 36V - 2.0AH - 72WH (N694215) 78485 RON
866 1 1 36V Batteries (90604558) 112630 RON
866 1 1 90624732 - Indisponibil
871 1 1 CHARGER GB (90567393-02) 42277 RON
871 1 1 CHARGER 36V (90616337-02) 44688 RON
871 1 1 CHARGER 36V (90567393-04) 42277 RON
871 1 1 90567393-06 - Indisponibil
