Top » Piese de schimb » PIESE BLACK & DECKER » GLC3000 Type H2

TRIMER CU ACUMULATOR BLACK+DECKER GLC3000 Type H2
[GLC3000 Type H2]
TRIMER CU ACUMULATOR BLACK+DECKER GLC3000 Type H2
Click pentru a mari
Imagini suplimentare
TRIMER CU ACUMULATOR BLACK+DECKER GLC3000 Type H2
Click pentru a mari

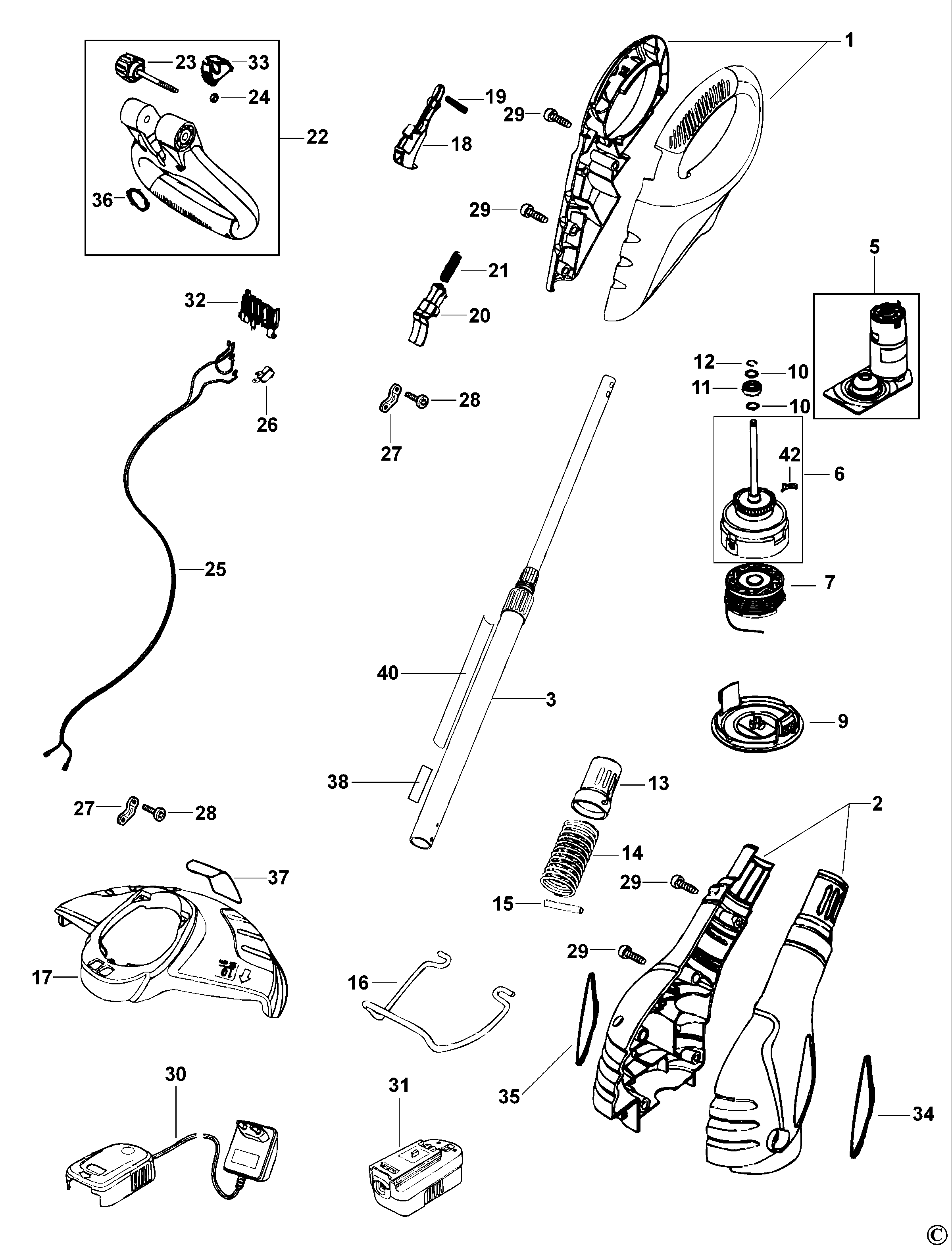

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 5104123-11 - Indisponibil
2 1 1 CLAMSHELL SET (5104155-01) 3466 RON
3 1 1 HANDLE TUBE SA (5104129-02) 7940 RON
5 1 1 MOTOR SA & MOUNT (5104159-11) 15993 RON
6 1 1 SPINDLE SA (5104168-01) 4137 RON
7 1 1 SPOOL & LINE (5104179-01) 190 RON
9 1 1 COVER SPOOL (5104183-03) 781 RON
9 1 1 COVER SPOOL (5104183-01) 781 RON
10 1 2 WASHER SHIM (5104177-00) 558 RON
11 1 1 BEARING (5104178-00) 893 RON
12 1 1 SPRING CLIP (5104176-00) 558 RON
13 1 1 COLLAR (5104134-00) 781 RON
14 1 1 SPRING (5104132-00) 558 RON
15 1 1 LOCK PIN (5104133-00) 558 RON
16 1 1 GUIDE (5104186-00) 105 RON
17 1 1 GUARD SA (5104189-01) 4472 RON
18 1 1 TRIGGER (5104135-01) 781 RON
19 1 1 SPRING (5104136-00) 558 RON
20 1 1 LOCK BUTTON (5104137-01) 558 RON
21 1 1 SPRING (5104138-00) 558 RON
22 1 1 HANDLE SA (5104143-01) 5031 RON
23 1 1 KNOB SA (5104150-00) 893 RON
24 1 1 NUT (5104148-00) 558 RON
25 1 1 LEAD SA (5104140-00) 2347 RON
26 1 1 SWITCH (5104141-00) 3018 RON
27 1 2 CORD CLAMP (5100573-00) 558 RON
28 1 4 SCREW (5103541-00) 558 RON
29 1 12 SCREW (5103541-00) 558 RON
30 1 1 5145093-00 - Indisponibil
31 1 1 5103040-07 - Indisponibil
32 1 1 TERMINAL SA (5104139-00) 781 RON
32 1 1 N925409 - Indisponibil
33 1 1 INSERT (5104153-00) 558 RON
34 1 1 LABEL (5104229-00) 781 RON
35 1 1 RATING PLATE (5104230-04) 558 RON
36 1 1 LABEL (244714-01) 558 RON
37 1 1 LABEL (5104227-00) 781 RON
38 1 1 LABEL (244572-00) 558 RON
40 1 1 LABEL (5104228-00) 558 RON
42 1 1 LEVER (5104175-01) 558 RON
