Top » Piese de schimb » PIESE BLACK & DECKER » GLC2500 Type H3

TRIMER CU ACUMULATOR BLACK+DECKER GLC2500 Type H3
[GLC2500 Type H3]
TRIMER CU ACUMULATOR BLACK+DECKER GLC2500 Type H3
Click pentru a mari
Imagini suplimentare
TRIMER CU ACUMULATOR BLACK+DECKER GLC2500 Type H3
Click pentru a mari

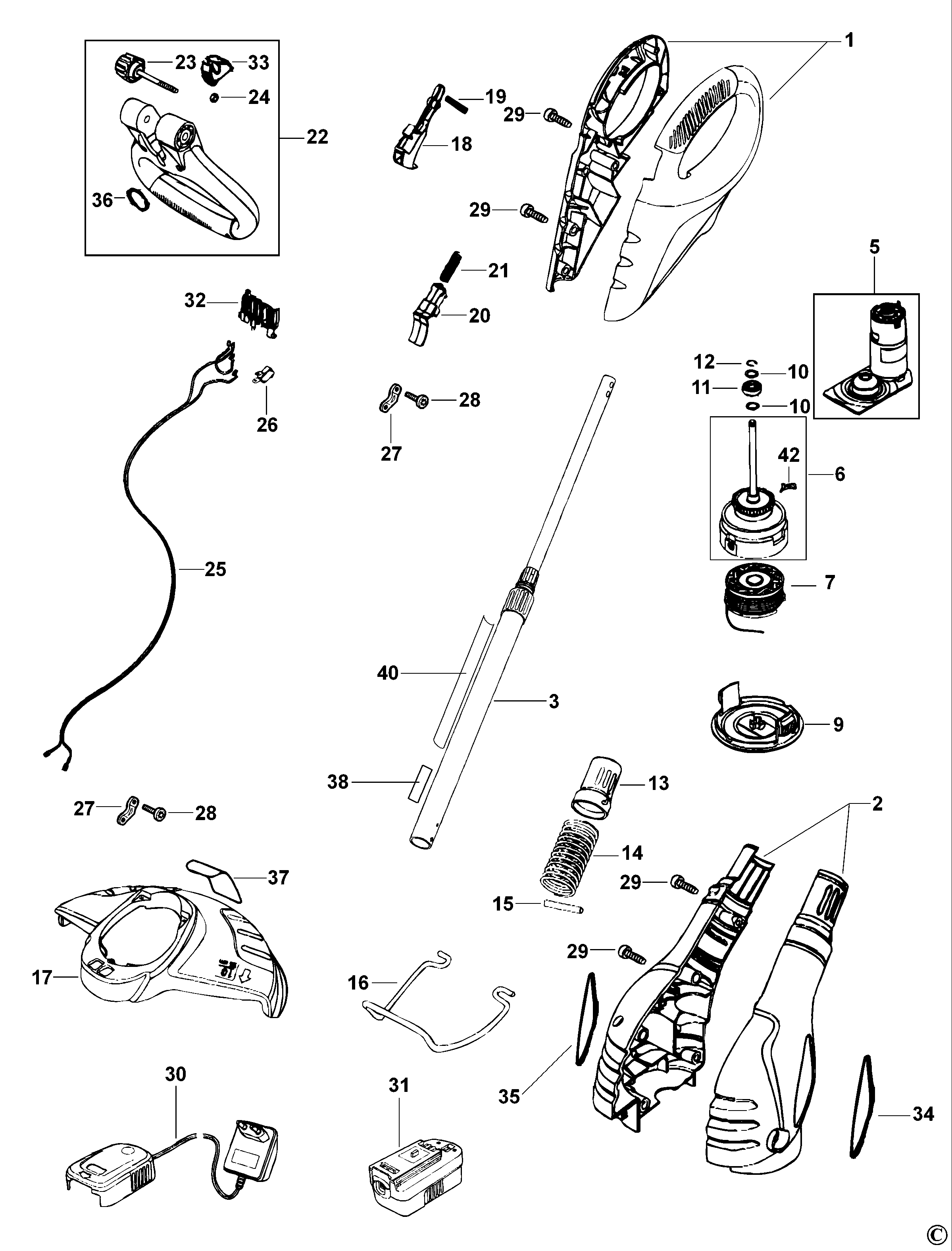

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 90512654 - Indisponibil
1 1 1 CLAMSHELL SET (90512654-04) 6821 RON
2 1 1 CLAMSHELL SET (5104155-00) 4137 RON
3 1 1 HANDLE TUBE SA (5104129-02) 7940 RON
5 1 1 MOTOR SA & MOUNT (5104159-01) 14315 RON
6 1 1 SPINDLE SA (5104168-01) 4137 RON
7 1 1 SPOOL & LINE (5104179-01) 190 RON
9 1 1 COVER SPOOL (5104183-00) 781 RON
9 1 1 COVER SPOOL (5104183-03) 781 RON
10 1 2 WASHER SHIM (5104177-00) 558 RON
11 1 1 BEARING (5104178-00) 893 RON
12 1 1 SPRING CLIP (5104176-00) 558 RON
13 1 1 COLLAR (5104134-00) 781 RON
14 1 1 SPRING (5104132-00) 558 RON
15 1 1 LOCK PIN (5104133-00) 558 RON
16 1 1 GUIDE (5104186-00) 105 RON
17 1 1 GUARD SA (90510096) 5591 RON
18 1 1 TRIGGER (5104135-00) 781 RON
19 1 1 SPRING (5104136-00) 558 RON
20 1 1 LOCK BUTTON (5104137-00) 781 RON
21 1 1 SPRING (5104138-00) 558 RON
22 1 1 HANDLE SA (90526846) 4472 RON
23 1 1 KNOB SA (5104150-00) 893 RON
24 1 1 NUT (5104148-00) 558 RON
25 1 1 LEAD SA (5104140-00) 2347 RON
26 1 1 SWITCH (5104141-00) 3018 RON
27 1 2 CORD CLAMP (5100573-00) 558 RON
28 1 4 SCREW (5103541-00) 558 RON
29 1 12 SCREW (5103541-00) 558 RON
30 1 1 90613804 - Indisponibil
30 1 1 CHARGER SA (90500849-01) 7940 RON
30 1 1 CHARGER 18v RoHS GB (90500849) 9282 RON
31 1 1 BATTERY 18V - 1.5AH S/Fit (5100385-49) 37579 RON
31 1 1 BATTERY 18v S/Fit 1.5Ah (5103553-00) 45297 RON
32 1 1 TERMINAL SA (5104139-00) 781 RON
32 1 1 N925409 - Indisponibil
33 1 1 INSERT (90508846) 558 RON
34 1 1 LABEL (90522917) 558 RON
35 1 1 RATING PLATE (90522918) 781 RON
36 1 1 LABEL (90526682) 558 RON
37 1 1 LABEL (5104227-00) 781 RON
38 1 1 LABEL (90526745) 558 RON
40 1 1 LABEL (90526683) 781 RON
42 1 1 LEVER (5148401-00) 558 RON
