Top » Piese de schimb » PIESE BLACK & DECKER » GW2600 Type 3

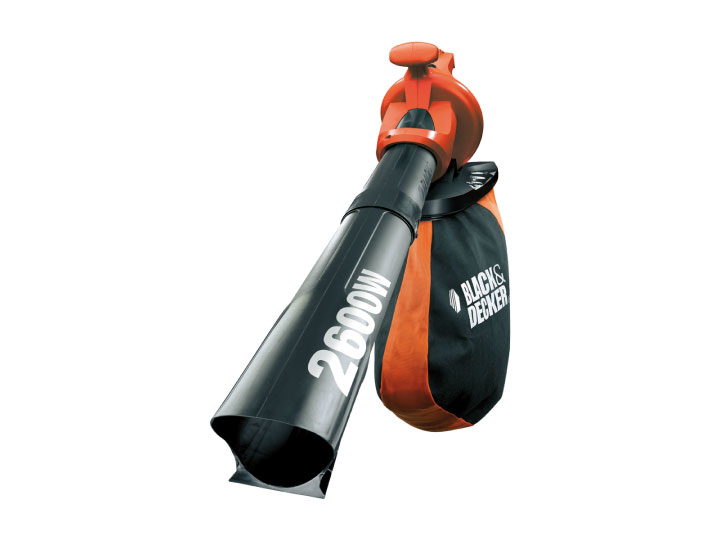

SUFLANTA VAC BLACK+DECKER GW2600 Type 3
[GW2600 Type 3]
SUFLANTA VAC BLACK+DECKER GW2600 Type 3
Click pentru a mari
Imagini suplimentare
SUFLANTA VAC BLACK+DECKER GW2600 Type 3
Click pentru a mari
SUFLANTA VAC BLACK+DECKER GW2600 Type 3
Click pentru a mari

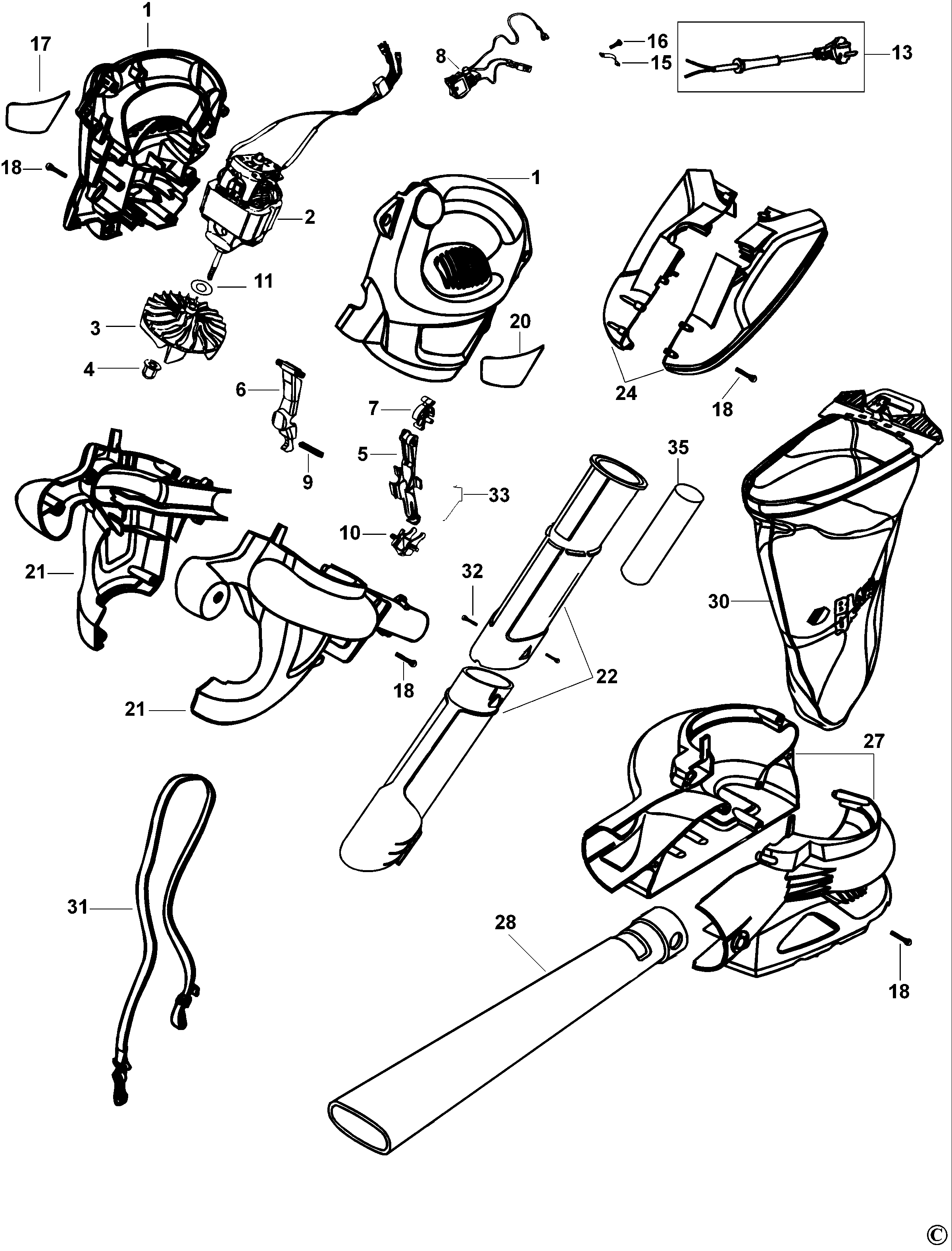

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA CLAMSHELL SET MOTOR (583340-00) 5591 RON
2 1 1 589453-00 - Indisponibil
3 1 1 FAN (587955-00) 3466 RON
4 1 1 NUT PLASTIC CUSTOM (585241-00) 105 RON
4 1 1 NUT LOCKING (90537120) 2347 RON
5 1 1 SLIDER (583345-00) 781 RON
6 1 1 CATCH (583346-00) 105 RON
7 1 1 SWITCH LEVER (583347-00) 781 RON
8 1 1 SA SWITCH & DIODE (586066-00) 5591 RON
9 1 1 SPRING RETURN (583349-00) 558 RON
10 1 1 SWITCH ACTUATOR (583344-00) 781 RON
11 1 1 WASHER (574756-00) 558 RON
13 1 1 CORDSET AND PROTECTOR GB (584929-00) 15993 RON
15 1 1 CLAMP CORD CORNER (329301-00) 558 RON
18 1 26 SCREW (747329) 558 RON
20 1 1 BRAND LABEL (583495-00) 558 RON
21 1 1 SA VACUUM SET (494372-00) 6821 RON
21 1 1 SA VACUUM SET (MOULD) (90533135) 12861 RON
22 1 1 VACUUM TUBE SET (584268-00) 12861 RON
22 1 1 VACUUM TUBE SET (MOULD) (90541879) 6821 RON
24 1 1 BAG TOP CLAMSHELL SET (90541880) 5031 RON
24 1 1 CLAMSHELL SET BAG TOP (584269-00) 5031 RON
27 1 1 SA CLAMSHELL SET BLOWER (494375-00) 6821 RON
28 1 1 BLOW TUBE (583488-00) 4137 RON
28 1 1 TUBE BLOWER TUBE (mould) (90541882) 3018 RON
30 1 1 SA BAG AND HANDLE (PHANT) (90548688) 17335 RON
30 1 1 SA BAG & HANDLE (583505-00) 17335 RON
31 1 1 CARRY STRAP (583493-00) 190 RON
32 1 2 SCREW NO.6 X 12 (748636) 558 RON
33 1 1 SPRING (586642-00) 558 RON
35 1 1 TUBE EXTENSION (493555-00) 1788 RON
