Top » Piese de schimb » PIESE BLACK & DECKER » BEBLV300SB Type 2

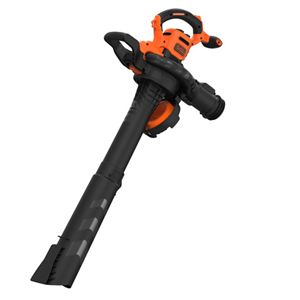

SUFLANTA VAC BLACK+DECKER BEBLV300SB Type 2
[BEBLV300SB Type 2]
SUFLANTA VAC BLACK+DECKER BEBLV300SB Type 2
Click pentru a mari
Imagini suplimentare
SUFLANTA VAC BLACK+DECKER BEBLV300SB Type 2
Click pentru a mari
SUFLANTA VAC BLACK+DECKER BEBLV300SB Type 2
Click pentru a mari
SUFLANTA VAC BLACK+DECKER BEBLV300SB Type 2
Click pentru a mari

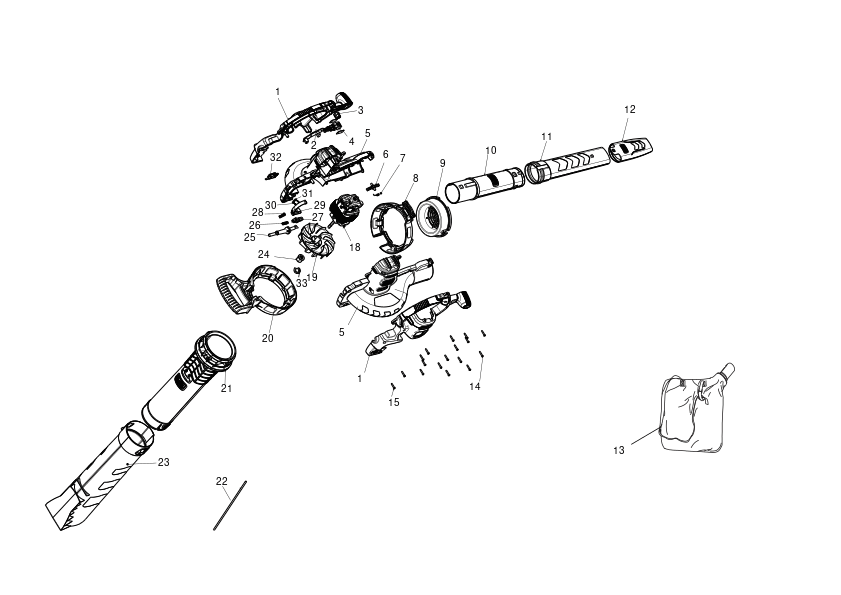

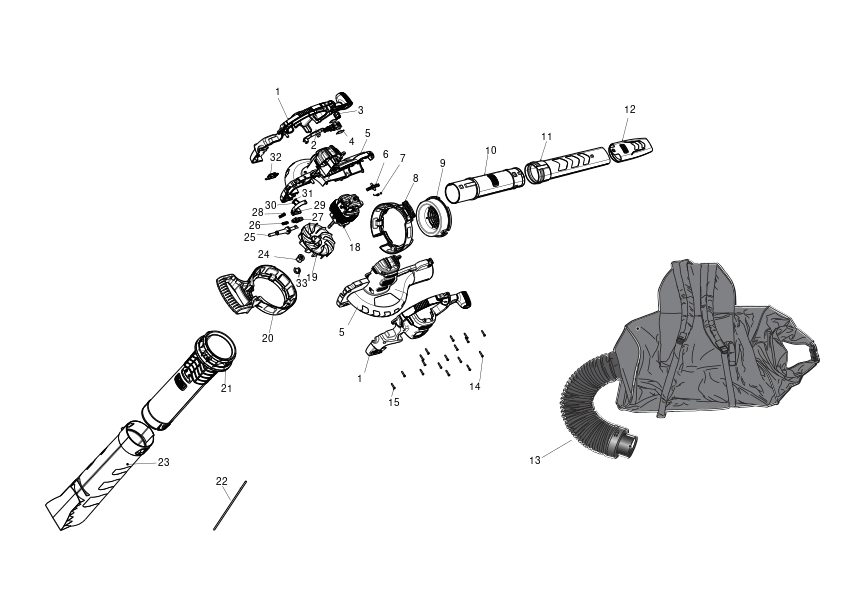

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE SA (N597105) 9012 RON
2 1 1 PCB SA (N593442) 16689 RON
3 1 1 WHEEL (N561910) 588 RON
4 1 2 SELECTOR (N508380) 588 RON
5 1 1 HOUSING SA (N541056) 13697 RON
6 1 1 LATCH (90633866) 588 RON
7 1 1 SPRING TORSION (90636534) 588 RON
8 1 1 COVER (N556474) 2182 RON
9 1 1 GRILLE (N633328) 2182 RON
10 1 1 BASE (N549968) 3268 RON
11 1 1 TUBE (N549969) 3268 RON
12 1 1 TIP (N599785) 1630 RON
13 1 1 BAG SA (N595612) 9012 RON
14 1 7 SCREW (747329) 558 RON
15 1 11 SCREW (N661817) 588 RON
18 1 1 MOTOR SA (N593402) 32327 RON
19 1 1 FAN SA (90593175) 5591 RON
20 1 1 HANDLE (N561299) 3268 RON
21 1 1 BASE (N549967) 3268 RON
22 1 1 LOCK (90642276) 588 RON
23 1 1 TIP (N549971) 4355 RON
24 1 1 LOCK-NUT (90556361) 82 RON
25 1 1 CORDSET (M/PLUG) QS (N593420) 2796 RON
26 1 1 SPRING (90524412) 588 RON
27 1 1 LATCH (N560444) 588 RON
28 1 1 SPRING (N645344) 588 RON
29 1 1 SWITCH (N560441) 588 RON
30 1 2 Screw M3.5 X9.5 (330019-01) 558 RON
31 1 1 CLAMP CORD CORNER (329301-00) 558 RON
32 1 1 SWITCH (N593463) 1933 RON
33 1 1 WASHER (N918098) 588 RON
