Top » Piese de schimb » PIESE BLACK & DECKER » BCBLV36 Type H1

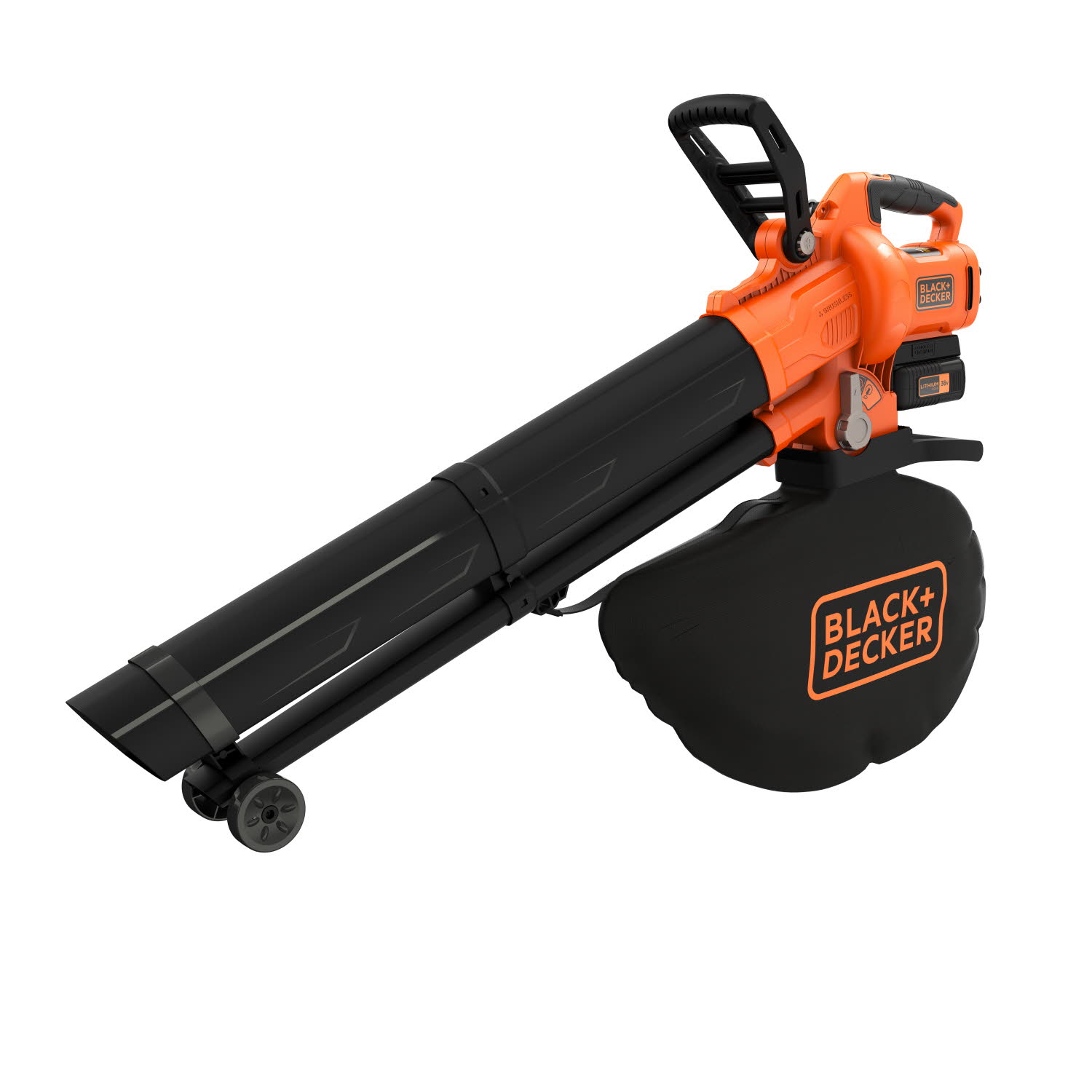

SUFLANTA VAC BLACK+DECKER BCBLV36 Type H1
[BCBLV36 Type H1]
SUFLANTA VAC BLACK+DECKER BCBLV36 Type H1
Click pentru a mari
Imagini suplimentare
SUFLANTA VAC BLACK+DECKER BCBLV36 Type H1
Click pentru a mari
SUFLANTA VAC BLACK+DECKER BCBLV36 Type H1
Click pentru a mari

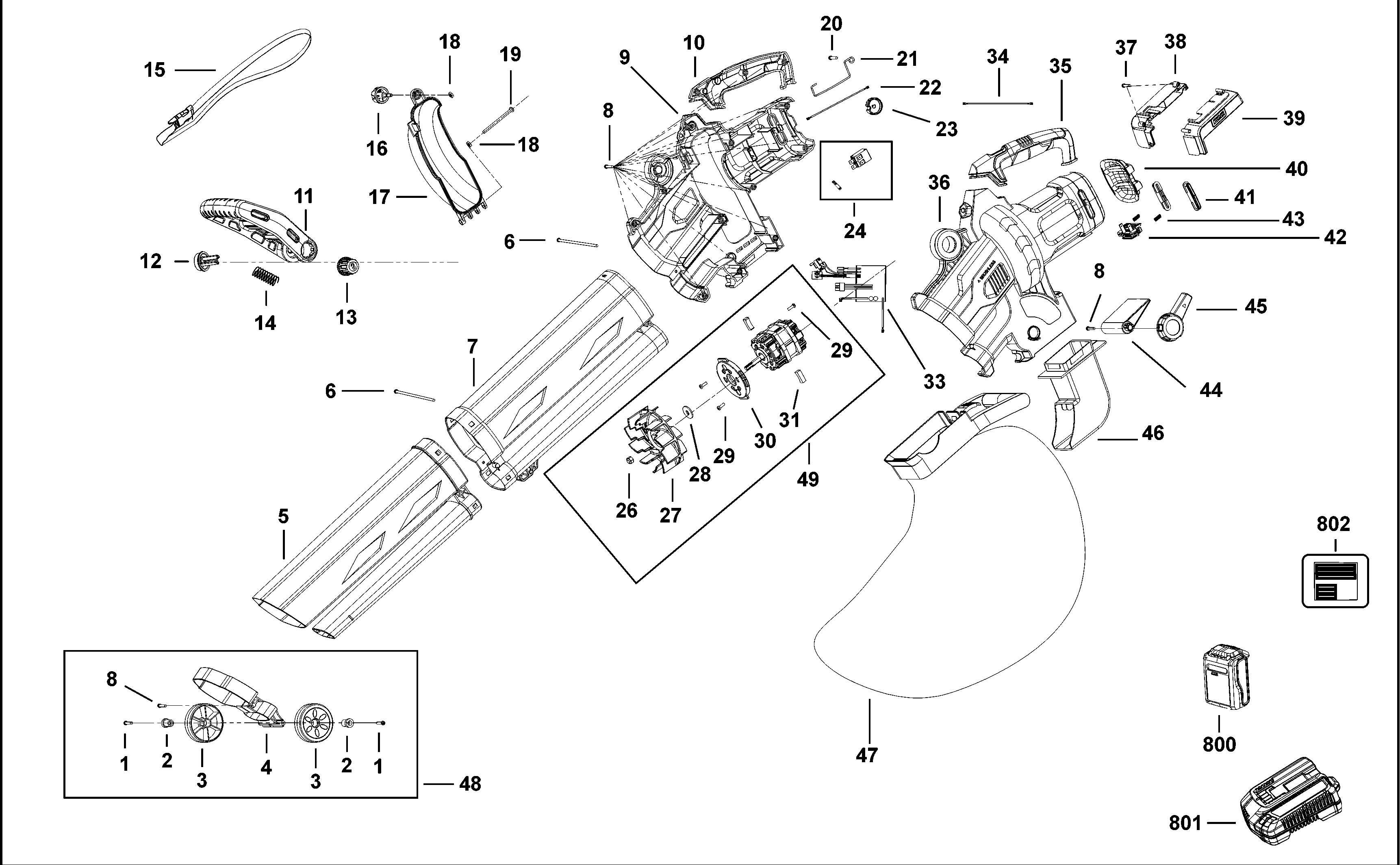

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 SCREW (1004773-52) 588 RON
2 1 2 SHAFT (1004773-53) 588 RON
3 1 2 WHEEL (1004773-54) 114 RON
4 1 1 FRAME (1004773-55) 2182 RON
5 1 1 TUBE LOWER (1004773-56) 12361 RON
6 1 2 SCREW (1004773-57) 588 RON
7 1 1 TUBE UPPER (1004773-58) 13697 RON
8 1 17 SCREW (1004758-91) 588 RON
9 1 1 HOUSING RH (1004773-59) 12361 RON
10 1 1 HANDLE RH (1004773-60) 4355 RON
11 1 1 ADJUSTER HANDLE (1004773-61) 5370 RON
12 1 1 ADJUSTER (1004773-62) 668 RON
13 1 1 BUTTON (1004773-63) 944 RON
14 1 1 SPRING (1004773-64) 944 RON
15 1 1 STRAP (1004773-65) 5370 RON
16 1 1 KNOB (1004773-66) 1933 RON
17 1 1 FAN COVER (1004773-67) 4827 RON
18 1 2 NUT (6010399-32) 588 RON
19 1 1 SCREW (1004773-68) 588 RON
20 1 1 SCREW (1004773-69) 588 RON
21 1 1 LEAD EARTH (1004773-70) 1318 RON
22 1 1 LEAD (1004773-71) 82 RON
23 1 1 KNOB (1004773-72) 588 RON
24 1 1 MICRO SWITCH (1004773-73) 741 RON
26 1 1 NUT (1004773-75) 2556 RON
27 1 1 FAN (1004773-76) 6688 RON
28 1 1 WASHER (1004773-77) 588 RON
29 1 3 SCREW (1004773-78) 588 RON
30 1 1 SUPPORT (1004773-79) 2182 RON
31 1 1 RUBBER PAD (1004707-75) 668 RON
33 1 1 PCB SA (1004773-81) 78485 RON
34 1 1 WIRE (1004773-82) 3268 RON
35 1 1 HANDLE LH (1004773-83) 4355 RON
36 1 1 HOUSING LH (1004773-84) 12361 RON
37 1 2 SCREW (1004773-85) 588 RON
38 1 1 RAIL LH (1004773-86) 2556 RON
39 1 1 RAIL RH (1004773-87) 2556 RON
40 1 1 COVER REAR (1004773-88) 588 RON
41 1 2 COVER (1004773-89) 82 RON
42 1 1 BATTERY CONNECTOR (1004773-90) 4827 RON
43 1 2 SPRING (1004773-91) 588 RON
44 1 1 DEFLECTOR (1004773-92) 588 RON
45 1 1 KNOB (1004773-93) 114 RON
46 1 1 TUBE OUTLET (1004773-94) 5370 RON
47 1 1 BAG SA (1004773-95) 20216 RON
48 1 1 WHEEL SA (1004773-96) 4827 RON
49 1 1 MOTOR SA (1004773-74) 104961 RON
800 1 1 BATTERY 36V - 2.0AH - 72WH (N694215) 78485 RON
800 1 1 BATTERY 36V - 2.5AH - 90WH-BL2536-XJ (N879836) 113822 RON
800 1 1 N651373 - Indisponibil
801 1 1 CHARGER 36V (90616337-02) 44688 RON
802 1 1 RATING PLATE (N718814) 3268 RON
