Top » Piese de schimb » PIESE BLACK & DECKER » KA270K Type 1

SLEFUITOR ORBITAL BLACK+DECKER KA270K Type 1
[KA270K Type 1]
SLEFUITOR ORBITAL BLACK+DECKER KA270K Type 1
Click pentru a mari
Imagini suplimentare
SLEFUITOR ORBITAL BLACK+DECKER KA270K Type 1
Click pentru a mari

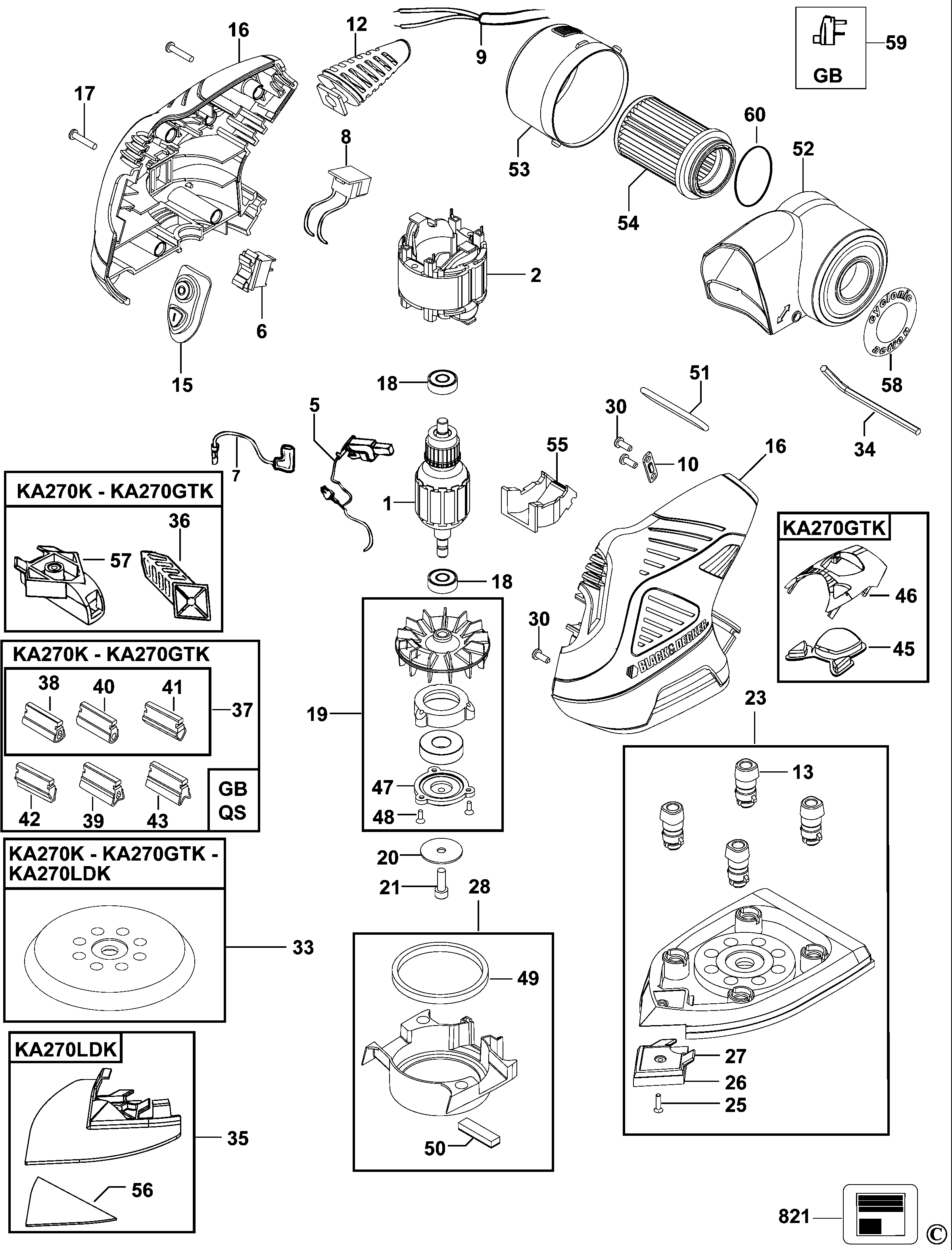

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (576373-38) 14315 RON
2 1 1 FIELD SA (576374-20) 9282 RON
5 1 2 BRUSH & HOLDER KA171 (584751-00) 2124 RON
6 1 1 SWITCH (579050-00) 105 RON
7 1 1 LEADWIRE (581389-00) 105 RON
8 1 1 PCB SA (579210-01) 190 RON
9 1 1 CORDSET (330120-11) 3466 RON
10 1 1 CLAMP CORD CORNER (329301-00) 558 RON
12 1 1 CORD PROTECTOR (477596-00) 781 RON
13 1 4 LEG (807224-01) 781 RON
15 1 1 SWITCH COVER (489522-00) 893 RON
16 1 1 CLAMSHELL (477307-03) 7940 RON
16 1 1 CLAMSHELL (477307-01) 7940 RON
17 1 5 SCREW (747329) 558 RON
18 1 2 BEARING (574853-06) 1452 RON
19 1 1 FAN SA (477744-00) 6821 RON
19 1 1 FAN (477744-00S) 6688 RON
20 1 1 WASHER SA (586405-00) 781 RON
21 1 1 SCREW (797190-00) 558 RON
21 1 1 SCREW (797190) 558 RON
23 1 1 PLATEN (477606-00) 5591 RON
25 1 1 .SCREW KA150K (571081-00) 558 RON
26 1 1 TIP (90558556) 781 RON
26 1 1 FOAM TIP (807945) 781 RON
27 1 1 CARRIER TIP (582097-00) 105 RON
28 1 1 SHROUD SA (479221-00) 2124 RON
30 1 4 SCREW (370748-00) 558 RON
30 1 4 SCREW NO.6 X 12.7 (370748) 558 RON
33 1 1 PLATEN (581103-00) 5031 RON
34 1 1 KEY ALLEN 4MM A/F HEX * 70MM LONG (807043) 558 RON
35 1 1 BASE SA (491420-00) 190 RON
35 1 1 BASE (90554651N) 1933 RON
36 1 1 SA CARRIER FINGER (EURO) (582146-00) 893 RON
37 1 1 PROFILE (579114-01) 4137 RON
38 1 1 PROFILE (579115-00) 2347 RON
38 1 1 ATTACHMENT CONTOUR (375495-00) 2795 RON
39 1 1 PROFILE (579116-00) 2347 RON
39 1 1 ATTACHMENT CONTOUR (375495-01) 2795 RON
40 1 1 PROFILE (579117-00) 2347 RON
41 1 1 ATTACHMENT CONTOUR (375495-04) 2795 RON
41 1 1 PROFILE (579118-00) 2347 RON
42 1 1 ATTACHMENT CONTOUR (375495-05) 2795 RON
42 1 1 PROFILE (579119-00) 2347 RON
43 1 1 PROFILE (579120-00) 2347 RON
43 1 1 ATTACHMENT CONTOUR (375495-02) 2795 RON
45 1 1 PAD (477587-00) 3466 RON
46 1 1 PAD (478566-00) 893 RON
47 1 1 COVER BEARING (477685-00) 2795 RON
47 1 1 90542324 - Indisponibil
48 1 3 SCREW (571081-02) 558 RON
49 1 1 SEAL (478261-00) 893 RON
49 1 1 SEAL (90541953) 558 RON
50 1 1 PAD (478641-00) 781 RON
51 1 1 O RING (479526-00) 558 RON
52 1 1 LID (477602-00) 4137 RON
53 1 1 BOWL (477601-00) 2795 RON
54 1 1 FILTER SA (479535-00) 3018 RON
54 1 1 FILTER SA (479535-00N) 2556 RON
55 1 1 DEFLECTOR (478784-00) 558 RON
56 1 1 BASE (90554651N) 1933 RON
56 1 1 HOOK FASTENER TOP (371932) 190 RON
57 1 1 HOLDER (582098-00) 781 RON
58 1 1 LABEL (488333-00) 781 RON
59 1 1 ADAPTOR SA (588384-00) 2795 RON
60 1 1 O RING (479525-00) 558 RON
821 1 1 RATING PLATE (477599-01) 558 RON
821 1 1 RATING PLATE (90556650) 558 RON
