SLEFUITOR ORBITAL BLACK+DECKER KA198 Type 1
[KA198 Type 1]
SLEFUITOR ORBITAL BLACK+DECKER KA198 Type 1
Click pentru a mari
Imagini suplimentare
SLEFUITOR ORBITAL BLACK+DECKER KA198 Type 1
Click pentru a mari

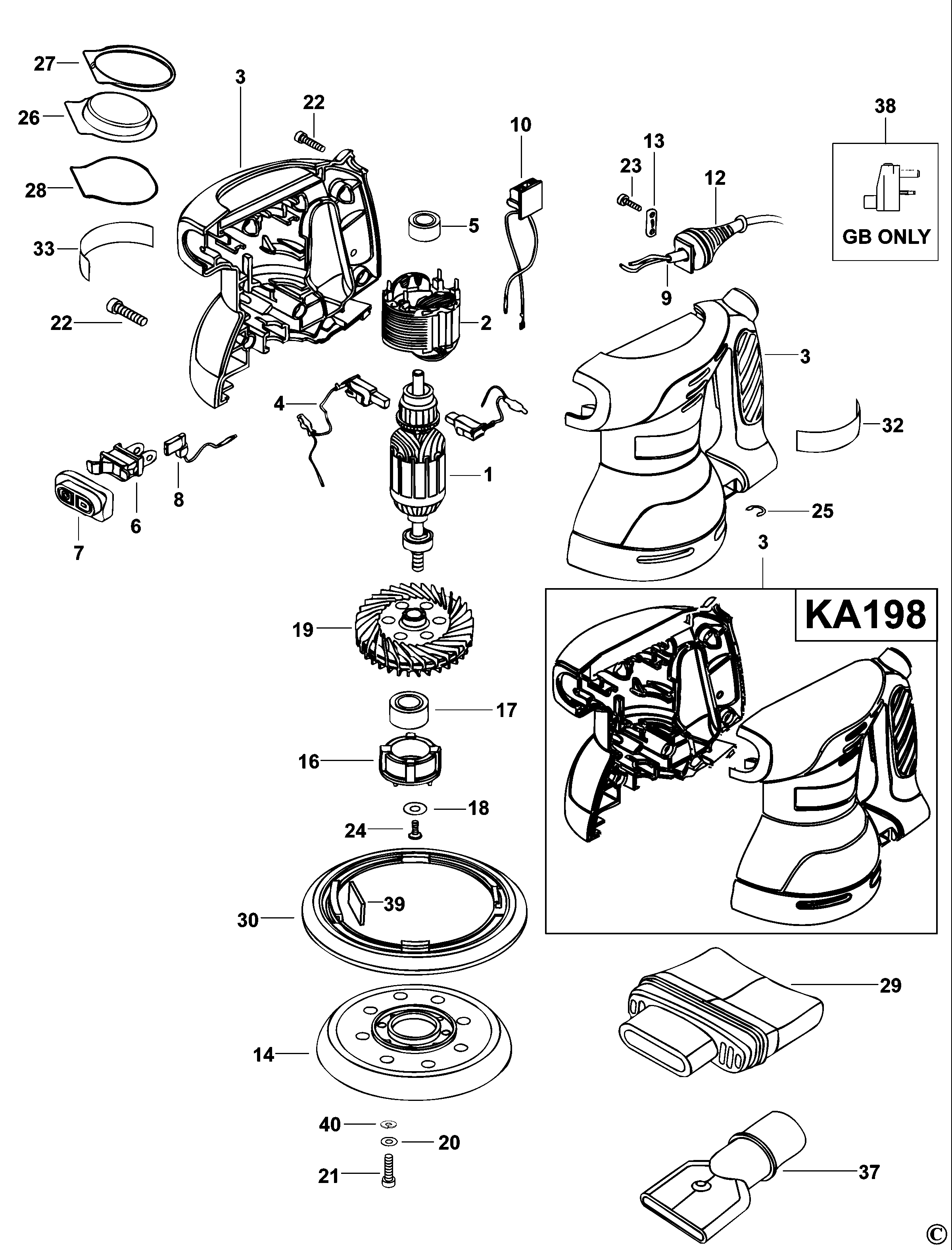

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (589430-00) 14315 RON
2 1 1 FIELD SA (589431-00) 9282 RON
3 1 1 587824-01 - Indisponibil
3 1 1 CLAMSHELL SET (587824-01N) 15469 RON
4 1 2 BRUSH & HOLDER KA171 (584751-00) 2124 RON
5 1 1 BEARING (574853-06) 1452 RON
6 1 1 SWITCH (579050-00) 105 RON
7 1 1 ACTUATOR (808495-04) 781 RON
7 1 1 ACTUATOR (808495-04N) 1318 RON
8 1 1 LEAD SA (389602-02) 781 RON
9 1 1 CORDSET (EURO) (90578995-47) 3466 RON
9 1 1 CORDSET QS (330080-03) 4137 RON
10 1 1 PCB SA (588549-00) 2124 RON
12 1 1 PROTECTOR (148481-00) 558 RON
13 1 1 CLAMP CORD CORNER (329301-00) 558 RON
14 1 1 PLATEN (587295-01) 4472 RON
14 1 1 PLATE KIT (1004522-00) 5591 RON
16 1 1 BEARING HOUSING (587297-00) 893 RON
17 1 1 BEARING (574853-05) 2347 RON
18 1 1 WASHER CONE (151652-00) 558 RON
19 1 1 COUNTERWEIGHT (587298-00) 4137 RON
20 1 4 WASHER PLAIN (330016-01) 558 RON
21 1 4 Screw M3.5X16 T15 (330019-03) 558 RON
22 1 6 SCREW (747329) 558 RON
23 1 2 SCREW NO.6 X 12.7 (370748) 558 RON
24 1 1 SCREW (388405-00) 558 RON
25 1 1 RETAINING RING (122198-00) 558 RON
29 1 1 DUSTBAG (587299-01) 2795 RON
30 1 1 SKIRT (587461-00) 781 RON
32 1 1 BRAND LABEL (587695-00) 558 RON
33 1 1 90540194 - Indisponibil
33 1 1 RATING PLATE (90556577) 558 RON
37 1 1 VACUUM ADAPTOR (587561-00) 105 RON
38 1 1 ADAPTOR SA (588384-00) 2795 RON
39 1 1 BRAKE (579065-00) 781 RON
40 1 4 Washer Lock (098197-11) 558 RON
