SLEFUITOR BLACK+DECKER PL52 Type 2
[PL52 Type 2]
SLEFUITOR BLACK+DECKER PL52 Type 2
Click pentru a mari
Imagini suplimentare
SLEFUITOR BLACK+DECKER PL52 Type 2
Click pentru a mari

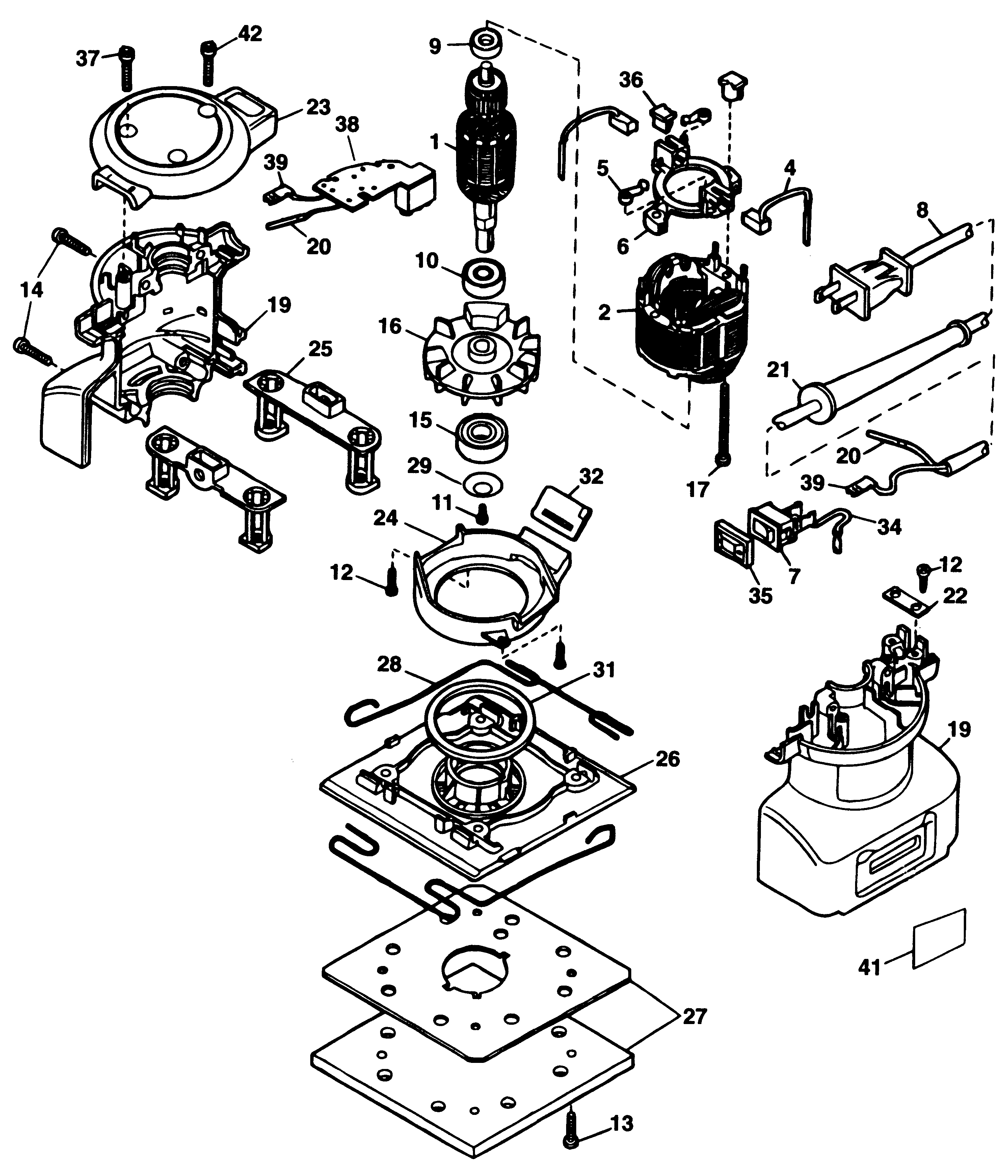

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE & BEARINGS 230V (SERVICE) (578863-01) 28296 RON
1 1 1 ARMATURE (464299-01) 29862 RON
2 1 1 SA FIELD ( SERVICE ) (807254-09) 17335 RON
2 1 1 FIELD (147494-02) 11519 RON
4 1 2 BRUSH 230V SA (445861-13) 2795 RON
4 1 2 445861-05 - Indisponibil
5 1 2 SPRING BRUSH (445860-00) 558 RON
6 1 1 RING (449899-05) 190 RON
7 1 1 SWITCH (144960-00) 1452 RON
7 1 1 SWITCH (656494-00) 1772 RON
8 1 1 93548-13 - Indisponibil
8 1 1 CORDSET (330080-30) 15993 RON
9 1 1 BEARING BALL CW/MFG (605040-05) 1117 RON
9 1 1 BEARING BALL 608 (330003-03) 1452 RON
10 1 1 BEARING BALL (CE) (330003-17) 2795 RON
10 1 1 BEARING BALL (605040-15) 2347 RON
11 1 1 SCREW MACHINE (098012-11) 558 RON
11 1 1 98012-11 - Indisponibil
12 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
13 1 4 SCREW (330024-06) 588 RON
13 1 4 SCREW MACH (464285-00) 558 RON
14 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
15 1 1 87517-00 - Indisponibil
15 1 1 BEARING (330003-25) 2795 RON
15 1 1 BEARING BALL (330003-64) 4137 RON
16 1 1 FAN (464281-00) 2347 RON
17 1 2 SCREW PLASTIC THREAD FORM M3.5 * 45 T15 (330019-08) 558 RON
19 1 1 464279-08 - Indisponibil
19 1 1 464279-14 - Indisponibil
20 1 1 TERMINAL (825209) 558 RON
20 1 1 CONNECTOR (825209-00) 558 RON
21 1 1 N542553 - Indisponibil
21 1 1 PROTECTOR CORD (330005-01) 105 RON
21 1 1 CORD PROTECTOR (N918736) 668 RON
22 1 1 CLAMP (142519-01) 558 RON
22 1 1 CORD CLAMP DW309K (380414-00) 558 RON
23 1 1 151670-02 - Indisponibil
23 1 1 144961-03 - Indisponibil
23 1 1 151670-09 - Indisponibil
24 1 1 SHROUD (144964-00) 1117 RON
25 1 2 144988-01 - Indisponibil
25 1 2 SA FOOT cod vechi 144988-02 (N542568) 2124 RON
25 1 2 FOOT SA (144988-04) 2124 RON
25 1 2 144988-02 - Indisponibil
26 1 1 144967-00 - Indisponibil
26 1 1 PLATEN (151289-00) 3018 RON
26 1 1 PLATEN 1/4 SHEET (N073798) 3466 RON
27 1 1 144968-00 - Indisponibil
27 1 1 SA PAD (151284-00SV) 4355 RON
27 1 1 SA PAD (151284-00) 9282 RON
28 1 2 464243-00 - Indisponibil
28 1 2 CLAMP PAPER (151288-00) 893 RON
29 1 1 WASHER CONE (151652-00) 558 RON
31 1 1 SA SERVICE PACK DUST SEAL (SERVICE) (N100227) 105 RON
31 1 1 SEAL DUST (144974-00) 781 RON
32 1 1 144975-01 - Indisponibil
34 1 1 SA LEAD WIRE (144989-00) 781 RON
35 1 1 COVER SWITCH (144983-07) 558 RON
35 1 1 COVER SWITCH (144983-00) 781 RON
36 1 2 NUT (144956-00) 558 RON
37 1 2 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
37 1 2 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
38 1 1 145283-00 - Indisponibil
38 1 1 SA PCB BOARD (145283-03) 12861 RON
39 1 1 TERMINAL (445964-00) 558 RON
42 1 1 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
846 1 1 PUNCH PAPER (144954-00) 1452 RON
847 1 1 SA BAG DUST (144976-01) 12861 RON
847 1 1 BAD DUST (144976-00) 6821 RON
847 1 1 DUSTBAG (608358-00) 4137 RON
