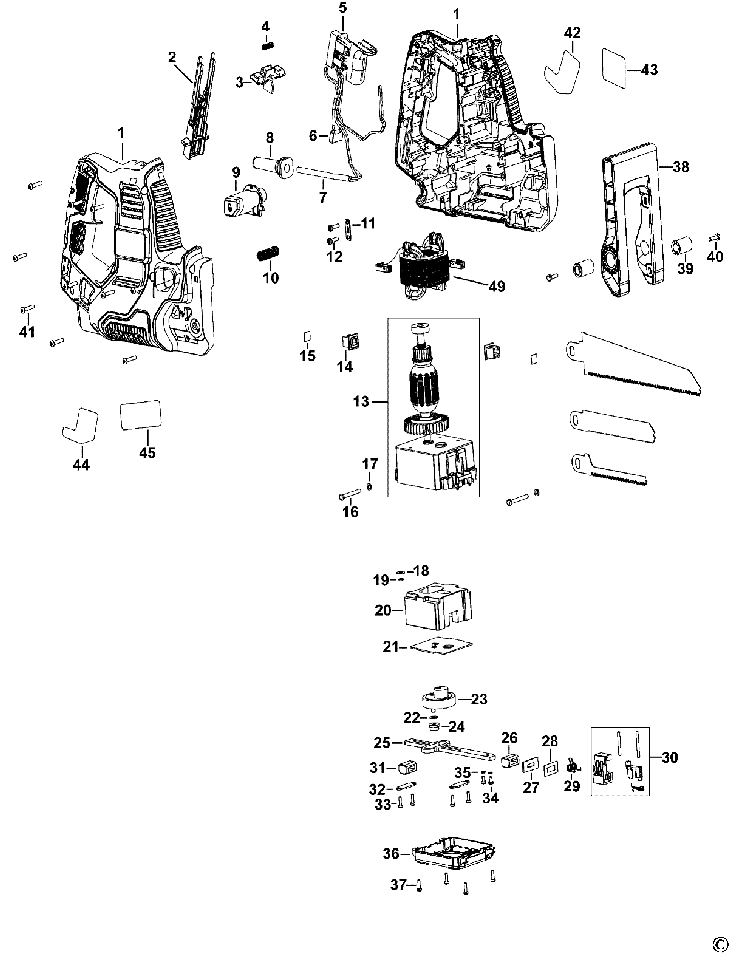

RS890 CUT SAW Type 1
[RS890 Type 1]
RS890 CUT SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (90583808) 12861 RON
2 1 1 ACTUATOR (90588213) 781 RON
3 1 1 90584063N - Indisponibil
4 1 1 90532974 - Indisponibil
5 1 1 SWITCH (90585223) 5591 RON
6 1 1 CAPACITOR (90551199) 105 RON
7 1 1 CORDSET (M/PLUG) GB (90578997-35) 6821 RON
8 1 1 CORD PROTECTOR (770235) 558 RON
9 1 1 BUTTON RELEASE (90585699) 781 RON
10 1 1 SPRING (90581764) 558 RON
11 1 1 CLAMP CORD CORNER (329301-00) 558 RON
12 1 2 SCREW NO.6 X 12.7 (821057) 558 RON
13 1 1 ARMATURE SA (90597935) 20467 RON
14 1 2 BRUSH BOX HOLDER (875735) 558 RON
15 1 2 INSERT (90595464) 558 RON
16 1 2 SCREW PLSTC THD FORM M3.5x32 T15 (330019-06) 558 RON
17 1 2 WASHER (98197-03) 558 RON
18 1 1 WASHER (588593-00) 558 RON
19 1 1 LOCKING RING (588592-00) 558 RON
20 1 1 CONNTERWEIGHT (90584909) 5591 RON
21 1 1 PLATE THRUST (90581138) 105 RON
22 1 1 SPRING WASHER (823954) 558 RON
23 1 1 GEAR SA (90597892) 9282 RON
24 1 1 DRIVE ROLLER (90595094) 558 RON
25 1 1 RECIPRICATOR (90585683) 3018 RON
26 1 1 BEARING (90585693) 781 RON
27 1 1 FELT SEAL (90592973) 558 RON
28 1 1 PLATE (90590450) 558 RON
29 1 1 SPRING (90585684) 558 RON
30 1 1 BLADE CLAMP (90597891) 10512 RON
31 1 1 BEARING (90585693) 781 RON
32 1 2 PLATE (90593281) 558 RON
33 1 4 SCREW (330045-01) 558 RON
34 1 2 SCREW PANHEAD (324007-02) 558 RON
35 1 2 WASHER SPRING (90572517) 558 RON
36 1 1 GEARCASE COVER (90584908) 893 RON
37 1 4 SCREW (330045-01) 558 RON
38 1 1 SHOE (90581135) 2347 RON
39 1 1 POST (90582696) 558 RON
40 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
41 1 10 SCREW (375669) 558 RON
42 1 1 LABEL (90597134) 558 RON
43 1 1 BRAND LABEL (90589142) 558 RON
44 1 1 LABEL (90597215) 558 RON
45 1 1 RATING PLATE (90589143) 558 RON
49 1 1 FIELD SA (90597890) 11519 RON
