Top » Piese de schimb » PIESE BLACK & DECKER » SB13EKS Type 2

ROTARY HAMMERDRILL BLACK+DECKER SB13EKS Type 2
[SB13EKS Type 2]
ROTARY HAMMERDRILL BLACK+DECKER SB13EKS Type 2
Click pentru a mari
Imagini suplimentare
ROTARY HAMMERDRILL BLACK+DECKER SB13EKS Type 2
Click pentru a mari

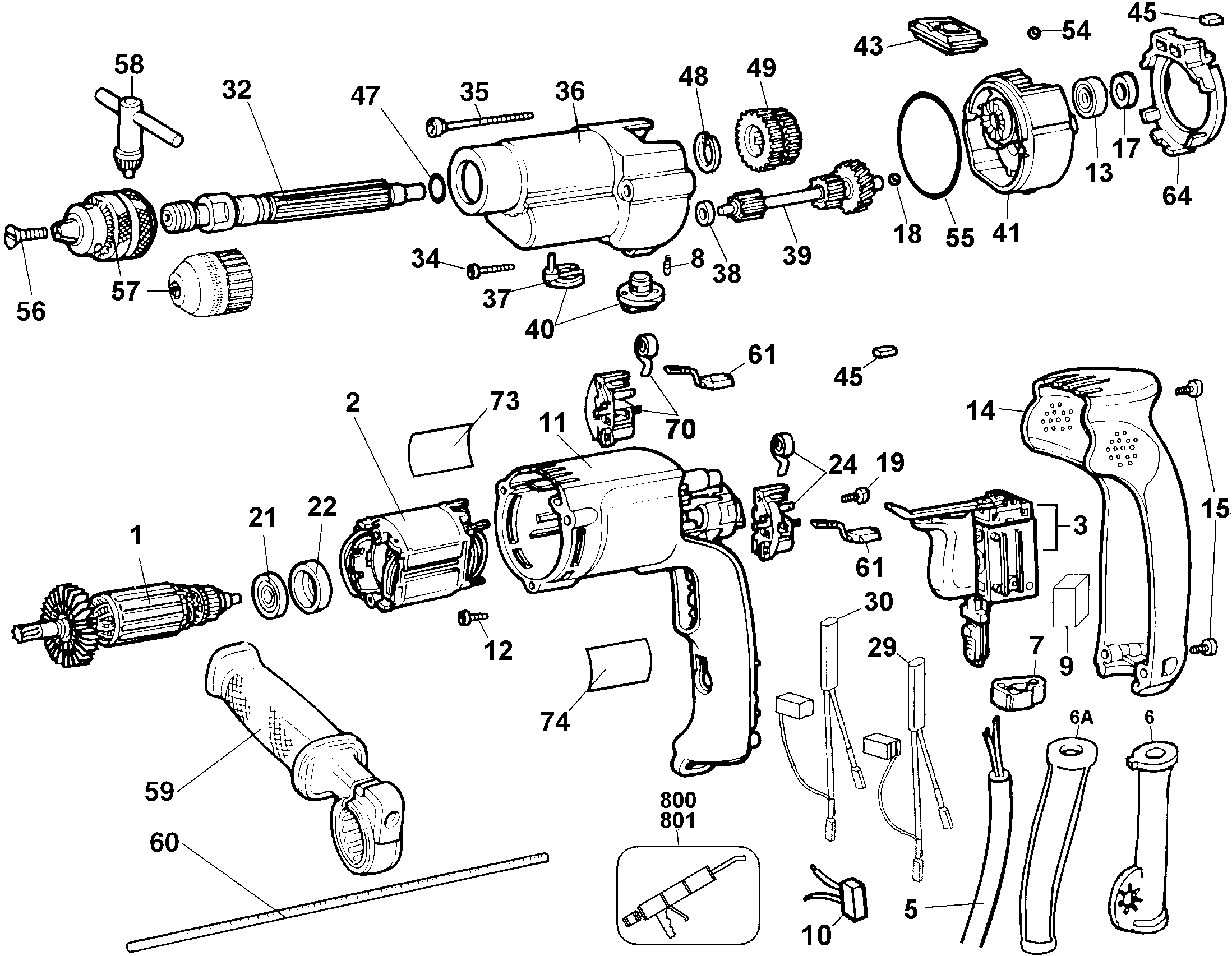

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE 230V DW505 (387614-01) 22144 RON
1 1 1 387614-01SV - Indisponibil
2 1 1 SA FIELD LEADED DW241/DW505 (387745-00) 20467 RON
3 1 1 386623-03 - Indisponibil
5 1 1 330080-40 - Indisponibil
6 1 1 N542553 - Indisponibil
6 1 1 PROTECTOR CORD (330005-01) 105 RON
6 1 1 CORD PROTECTOR (N918736) 668 RON
7 1 1 176832-00 - Indisponibil
8 1 2 DETENT (326467-00) 558 RON
9 1 1 BUMPER SPONGE (930026-01) 781 RON
10 1 2 BEARING (176950-00) 2124 RON
10 1 1 93585-13 - Indisponibil
11 1 1 390005-09 - Indisponibil
11 1 1 GREASE (283484-00) 32770 RON
12 1 2 SCREW (390198-00) 558 RON
13 1 2 330003-04 - Indisponibil
13 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
14 1 1 176900-02 - Indisponibil
15 1 3 SCREW (330065-08) 558 RON
17 1 1 402763-00 - Indisponibil
18 1 1 "CHUCK KEYLESS 1/2""" (330075-22) 49771 RON
18 1 1 BALL STEEL (936840-00) 558 RON
19 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
22 1 1 SLEEVE (949721-03) 781 RON
22 1 1 387637-00 - Indisponibil
24 1 1 N440283 - Indisponibil
24 1 1 BRUSH HOLDER (390523-00) 3018 RON
28 1 1 GEAR (401740-00) 12861 RON
29 1 1 387822-00 - Indisponibil
30 1 1 387822-01 - Indisponibil
32 1 1 628831-00 - Indisponibil
32 1 1 spindle sb13ek (401744-00) 17335 RON
33 1 1 SPRING (931890-00) 558 RON
34 1 1 SCREW PLASTIC 4 X 30FORM 4* 30 (330065-13) 558 RON
35 1 2 "SCREW PLASTIC 4X55""" (330065-10) 558 RON
36 1 1 BRUSH HOLDER (403224-00) 2795 RON
36 1 1 SA GEARCASE (SERVICE) (1006352-00) 15993 RON
36 1 1 SA GEARCASE (401842-01) 17335 RON
36 1 1 SA GEARCASE (401842-00) 20467 RON
36 1 1 N407393 - Indisponibil
37 1 1 BRUSH HOLDER (403224-01) 2124 RON
37 1 1 SA SELECTOR FORK (401735-00) 2347 RON
37 1 1 SELECTOR FORK (628891-00) 4472 RON
38 1 1 WASHER (932933-00) 558 RON
39 1 1 SCREW DW501 TYPE 2 (448847-00) 781 RON
39 1 1 INTERSHAFT (401741-00) 22144 RON
39 1 1 401741-00SV - Indisponibil
40 1 1 SELECTOR FORK (628891-00) 4472 RON
40 1 1 SPEED SELECTOR (429948-00) 4137 RON
41 1 1 583951-00 - Indisponibil
41 1 1 COVER SA (401747-00) 14315 RON
41 1 1 619562-01SV - Indisponibil
43 1 1 SA LEVER (401750-00) 3466 RON
43 1 1 401750-00SV - Indisponibil
45 1 2 SMALL RUBBER (949638-02) 558 RON
47 1 1 O-RING (930028-00) 558 RON
48 1 1 SEAL RING (144803-00) 781 RON
49 1 1 GEAR DOUBLE (397239-00) 15993 RON
49 1 2 SCREW (949650-01) 558 RON
49 1 1 GEAR DOUBLE (397239-01) 4137 RON
52 1 1 MOVING CLUTCH (945706-00) 105 RON
54 1 1 BALL (000903-00) 558 RON
54 1 1 903-00 - Indisponibil
55 1 1 RING OR (401847-00) 558 RON
56 1 1 SCREW (448847-01) 781 RON
57 1 1 330075-59 - Indisponibil
59 1 1 N429860 - Indisponibil
59 1 1 HANDLE SIDE SA (939794-00) 5591 RON
59 1 1 SIDE HANDLE (NA292261) 6688 RON
60 1 1 DEPTH STOP (940357-00) 893 RON
64 1 1 FAN BAFFLE (176811-00) 781 RON
70 1 1 N440282 - Indisponibil
70 1 1 390524-00 - Indisponibil
74 1 1 152529-00 - Indisponibil
76 1 1 WASHER DW505 TYPE 2 (176659-00) 558 RON
77 1 1 RING (050050-00) 558 RON
77 1 1 50050-00 - Indisponibil
800 1 1 GREASE (283484-01) 62298 RON
