RECIPROCATING SAW-SWITZER BLACK+DECKER TS815EK Type 2
[TS815EK Type 2]
RECIPROCATING SAW-SWITZER BLACK+DECKER TS815EK Type 2
Click pentru a mari
Imagini suplimentare
RECIPROCATING SAW-SWITZER BLACK+DECKER TS815EK Type 2
Click pentru a mari

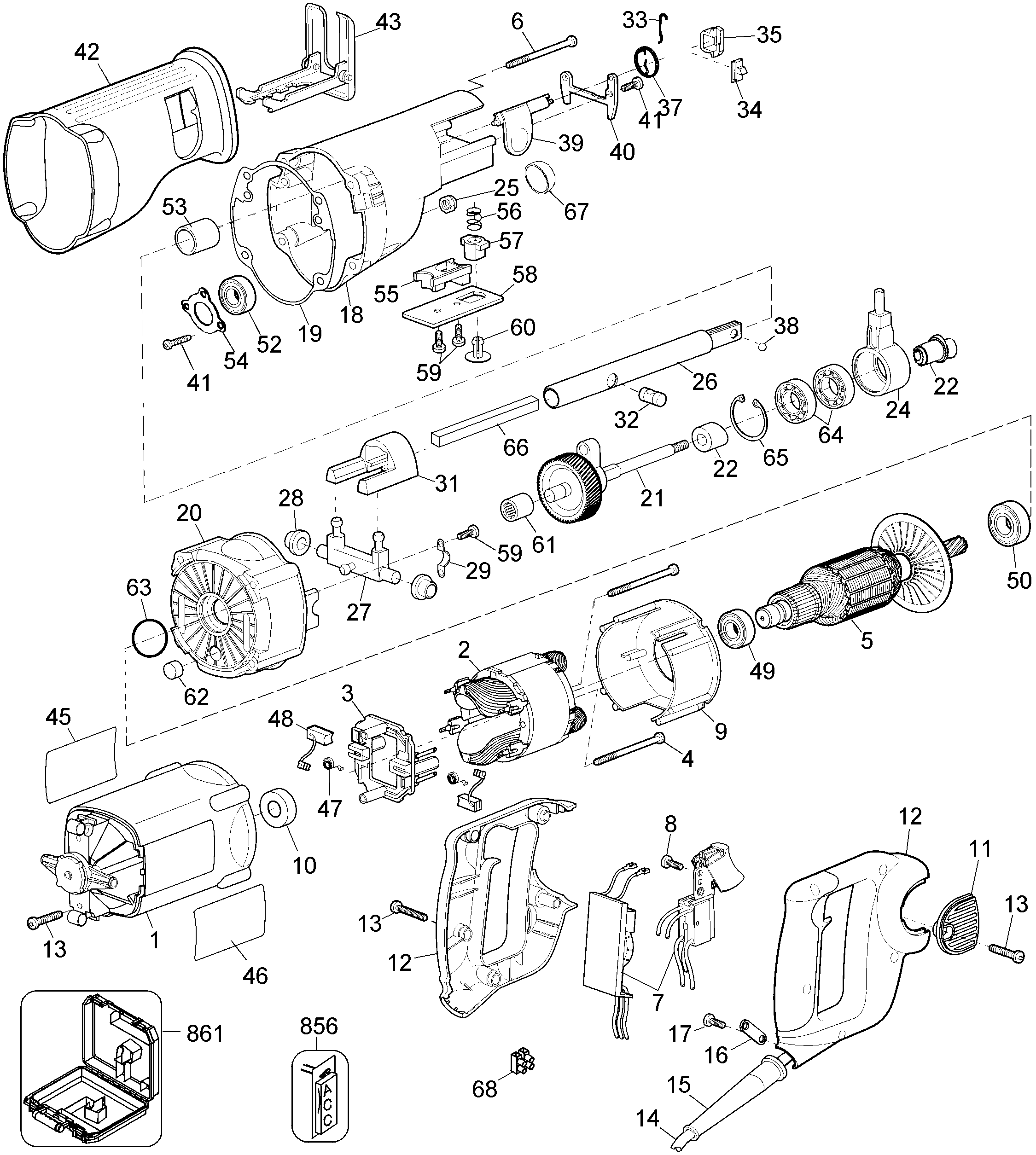

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 382748-03 - Indisponibil
2 1 1 FIELD DW309K (381711-01) 11519 RON
3 1 1 BRUSH SA (N402490) 741 RON
3 1 1 BRUSHPLATE DW309K (383597-03) 7940 RON
4 1 2 SCREW PLASTITE (330019-19) 781 RON
5 1 1 ARMATURE DW309K (383392-01) 39145 RON
5 1 1 383392-01SV - Indisponibil
6 1 4 SCREW PLSTC THD FRM M4.55X78 T20 (330019-34) 558 RON
7 1 1 SWITCH SA (382642-03) 39145 RON
7 1 1 382642-01 - Indisponibil
8 1 1 Screw M3.5 X9.5 (330019-01) 558 RON
9 1 1 BAFFLE FAN DW309K (382750-01) 1788 RON
10 1 2 BEARING DW309K (330003-52) 6821 RON
10 1 1 SLEEVE (137382-02) 558 RON
10 1 1 SLEEVE (137382-00) 781 RON
11 1 2 COVER BRUSH DW309K (382751-00) 781 RON
12 1 1 384177-01 - Indisponibil
13 1 9 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
14 1 1 CABLE SA (330080-29) 17335 RON
15 1 1 N542553 - Indisponibil
15 1 1 PROTECTOR CORD (330005-01) 105 RON
15 1 1 CORD PROTECTOR (N918736) 668 RON
16 1 1 CORD CLAMP (86634-00) 558 RON
17 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
18 1 1 gearcase ts815ek type 2 (385721-01) 3124 RON
18 1 1 GEARCASE DW309K (385721-00) 34336 RON
19 1 1 GASKET DW309K (383752-00) 1788 RON
20 1 1 GEARCASE COVER DW309K (385720-00) 3592 RON
20 1 1 385720-00SV - Indisponibil
21 1 1 SHAFT SA (429952-00) 37579 RON
22 1 1 381195-02 - Indisponibil
22 1 1 397097-00SV - Indisponibil
22 1 1 DRIVER SA (397097-00) 15993 RON
24 1 1 385872-00 - Indisponibil
25 1 1 NUT (397893-00) 558 RON
25 1 1 NUT STOP ELASTIC M6X1 (330021-07) 558 RON
25 1 1 NUT (395918-00) 558 RON
26 1 1 SHAFT (623504-00) 23598 RON
26 1 1 SHAFT (615813-00) 17335 RON
26 1 1 SHAFT SA DW309K (387002-01) 23598 RON
27 1 1 ARM DW309K (383195-01) 28296 RON
28 1 2 SLEEVE BEARING (383280-00) 893 RON
29 1 2 STRAP DW309K (383219-00) 781 RON
31 1 1 COUNTERWEIGHT (383221-01) 10512 RON
31 1 1 COUNTERWEIGHT (625752-00) 9282 RON
32 1 1 AXLE (382187-00) 3466 RON
33 1 1 PIN dw008 (383751-02) 781 RON
33 1 1 LOCK PIN (620663-00) 781 RON
34 1 1 SLIDE (383749-01) 190 RON
35 1 1 BLADE CLAMP DW309K (388017-00) 6821 RON
35 1 1 BLADE CLAMP (604731-00) 5031 RON
37 1 1 SPRING dw309k (383750-00) 781 RON
37 1 1 SPRING BLADE CLAMP (623343-00) 781 RON
38 1 1 BALL STELL (387425-00) 781 RON
38 1 1 BALL (000903-00) 558 RON
38 1 1 903-00 - Indisponibil
39 1 1 lever dw309k type 2 (391452-01) 3018 RON
40 1 1 RETAINING PLATE DW309K (383745-00) 893 RON
40 1 1 PLATE DW309K (383438-00) 105 RON
41 1 5 SCREW.TEMP (330045-05) 558 RON
42 1 1 BOOT DW309K (384023-00) 5031 RON
43 1 1 SHOE DW309K (383435-00) 7940 RON
45 1 1 152534-00 - Indisponibil
47 1 2 BRUSH SPRING DW309K (383387-00) 1229 RON
48 1 2 384719-03 - Indisponibil
48 1 2 BRUSH 230V SA ( cod vechi 384719-03 ) (N501035) 4137 RON
49 1 1 BEARING BALL (330003-09) 2795 RON
49 1 1 Ball Brg (605040-20) 2182 RON
50 1 1 BEARING BALL (330003-09) 2795 RON
50 1 1 Ball Brg (605040-20) 2182 RON
52 1 1 330003-04 - Indisponibil
52 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
53 1 1 BEARING DW309K (383241-00) 893 RON
54 1 1 385718-00 - Indisponibil
54 1 1 RETAINING PLATE DW309K (384466-00) 781 RON
55 1 1 STOP DW309K (383437-00) 1229 RON
55 1 1 SPACER DW008K (389999-00) 105 RON
56 1 1 SPRING dw309k (045550-00) 558 RON
56 1 1 45550-00 - Indisponibil
57 1 1 PIN DW309K (383440-00) 105 RON
57 1 1 PIN (613056-00) 781 RON
58 1 1 386027-00 - Indisponibil
58 1 1 SPACER DW008K (389999-00) 105 RON
59 1 6 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
60 1 1 384405-01 - Indisponibil
61 1 1 BEARING (131790-00) 1117 RON
61 1 1 BEARING NEEDLE (330004-02) 1229 RON
62 1 1 PLUG DW309K (384401-00) 558 RON
63 1 1 SEAL DW290 (99180-24) 558 RON
64 1 2 BEARING BALL CW MFG (605040-25) 2347 RON
64 1 2 BEARING BALL 153209 (330003-12) 2795 RON
64 1 2 BEARING (330003-80) 2347 RON
65 1 1 CIRCLIP (099022-02) 781 RON
65 1 1 99022-02 - Indisponibil
66 1 1 OILER DW309K (387262-00) 105 RON
67 1 1 CAP (383227-00) 781 RON
68 1 1 BLOCK TERMINAL (320078-00) 1452 RON
856 1 1 380951-11 - Indisponibil
