Top » Piese de schimb » PIESE BLACK & DECKER » P3710-47 Type 1

PROF 65MM CIRC SAW UK BLACK+DECKER P3710-47 Type 1
[P3710-47 Type 1]
PROF 65MM CIRC SAW UK BLACK+DECKER P3710-47 Type 1
Click pentru a mari
Imagini suplimentare
PROF 65MM CIRC SAW UK BLACK+DECKER P3710-47 Type 1
Click pentru a mari

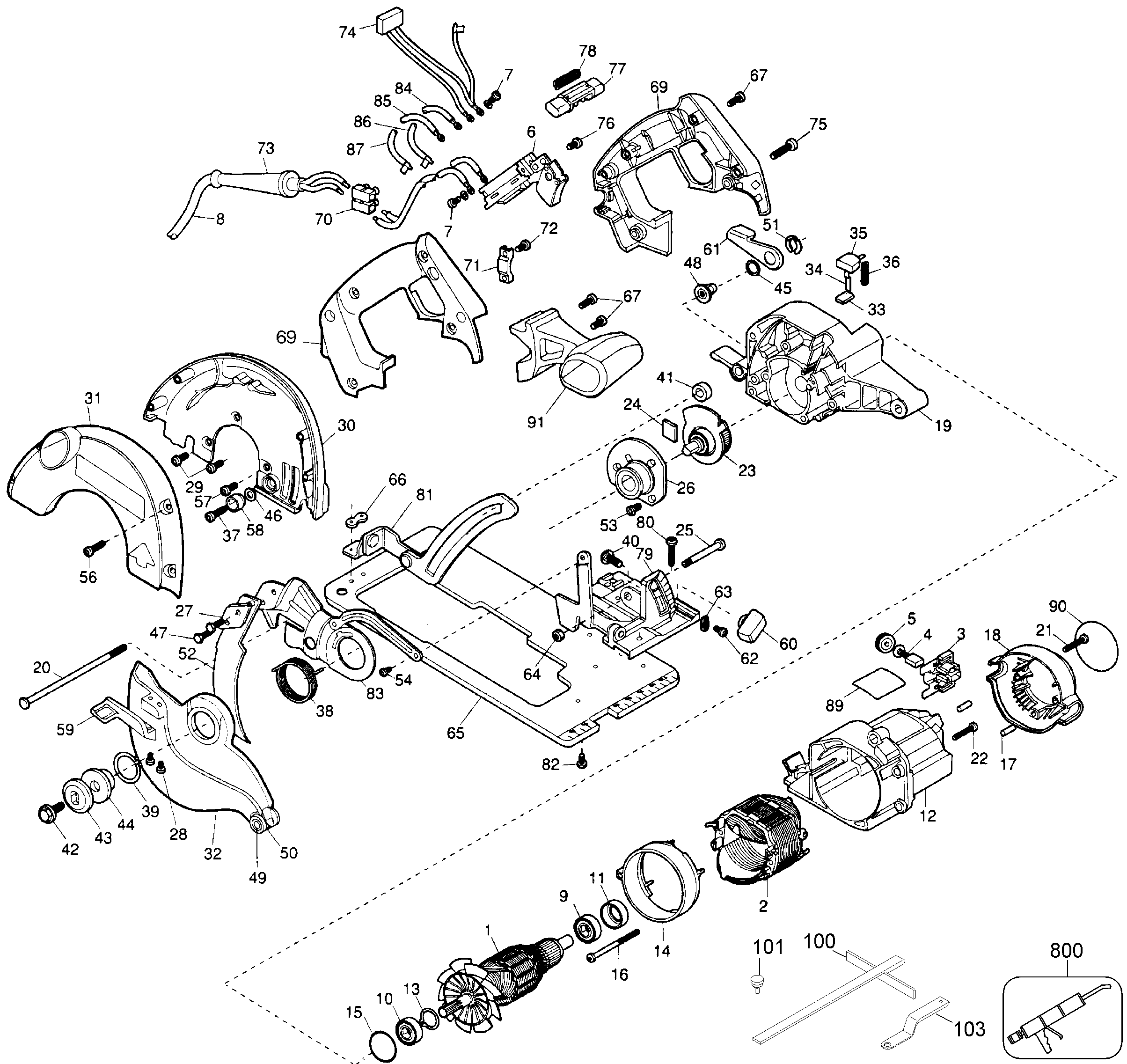

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE & FAN (144785-10SV) 51337 RON
1 1 1 ARMATURE (144785-10) 51337 RON
2 1 1 FIELD (144798-07) 22144 RON
3 1 2 BRUSH HOLDER SA (147097-09) 10512 RON
3 1 2 BRUSH & HOLDER (147097-07) 7940 RON
4 1 2 BRUSH SA (145323-02) 2124 RON
4 1 2 BRUSH SA (145323-06) 2795 RON
5 1 2 BRUSH CAP (448084-01) 781 RON
6 1 1 SWITCH KIT (429981-00) 10512 RON
7 1 4 SCREW TERMINAL (791707-00) 558 RON
7 1 4 SCREW MACHINE PAN HD (384127-01) 558 RON
8 1 1 CORD POWER SUPPLY GB 4200 (330060-44) 14315 RON
9 1 1 BEARING BALL (330003-09) 2795 RON
9 1 1 Ball Brg (605040-20) 2182 RON
10 1 1 BEARING BALL (330003-13) 4137 RON
10 1 1 BALL BEARING (605040-27) 190 RON
11 1 1 SLEEVE (137382-00) 781 RON
12 1 1 144945-00 - Indisponibil
13 1 1 SEAL RING (144803-00) 781 RON
14 1 1 BAFFLE FAN (145301-00) 1229 RON
15 1 1 SEAL (701297-00) 558 RON
16 1 2 SCREW PLASTITE (330019-19) 781 RON
17 1 2 PIN (87205-00) 558 RON
18 1 1 SA END CAP (382251-00) 2795 RON
19 1 1 145382-04 - Indisponibil
20 1 1 98128-97 - Indisponibil
20 1 1 BOLT (098128-97) 781 RON
21 1 2 SCREW .TEMP (330019-20) 558 RON
22 1 4 SCREW TEMP (330045-19) 558 RON
23 1 1 000000-00 - Indisponibil
24 1 1 SEAL (147194-00) 2347 RON
25 1 1 SCREW (396631-00) 558 RON
26 1 1 GEARCASE COVER (396705-00) 11519 RON
26 1 1 610906-00 - Indisponibil
27 1 1 148459-00 - Indisponibil
28 1 2 SCREW.TEMP (330045-05) 558 RON
29 1 2 SCREW (330045-23) 781 RON
32 1 1 429882-16 - Indisponibil
33 1 1 WIPER (145351-00) 558 RON
34 1 1 LEVER (145349-00) 1117 RON
35 1 1 BUTTON (145350-00) 558 RON
36 1 1 SPRING (150466-00) 558 RON
37 1 1 98096-19 - Indisponibil
37 1 1 098096-19 - Indisponibil
38 1 1 N401777 - Indisponibil
38 1 1 SPRING (605015-00) 1452 RON
39 1 1 RING (541351-00) 558 RON
39 1 1 RETAINER DW007K (388496-00) 893 RON
40 1 1 SCREW.SPECIAL (98128-20) 558 RON
40 1 1 CARRIAGE BOLT (N022876) 558 RON
41 1 1 SPACER (148455-00) 558 RON
42 1 1 SCREW SPECIAL (145344-00) 781 RON
43 1 1 WASHER OUTER CLAMP (145446-00) 105 RON
44 1 1 WASHER INNER CLAMP (145442-00) 2124 RON
44 1 1 WASHER INNER CLAMP (145442-03) 2795 RON
45 1 1 NUT DW007K (388823-02) 2795 RON
45 1 1 NUT (610744-00) 2124 RON
46 1 1 SPACER (150246-00) 558 RON
47 1 2 SCREW.TEMP (98113-12) 558 RON
48 1 1 NUT (152015-03) 1117 RON
49 1 2 147061-00 - Indisponibil
50 1 2 BLOCK PLATE (148460-00) 558 RON
51 1 1 RING (152211-00) 558 RON
52 1 1 147076-02 - Indisponibil
53 1 3 98102-13 - Indisponibil
53 1 3 SCREW.TEMP (098102-13) 558 RON
54 1 1 000000-00 - Indisponibil
56 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
57 1 1 000000-00 - Indisponibil
58 1 1 BUMPER (145375-02) 558 RON
59 1 1 147052-00 - Indisponibil
60 1 1 KNOB (147107-00) 105 RON
61 1 1 LEVER (145347-00) 105 RON
62 1 1 SCREW.TEMP (330045-04) 558 RON
62 1 1 SCREW METAL THD FORM M4X8 T20 (330045-44) 558 RON
63 1 1 POINTER (145341-00) 558 RON
64 1 1 LOCK NUT (148641-00) 558 RON
65 1 1 145418-00 - Indisponibil
66 1 1 PLATE (145449-00) 558 RON
67 1 6 SCREW (330019-14) 558 RON
68 1 1 000000-00 - Indisponibil
69 1 1 000000-00 - Indisponibil
70 1 1 BLOCK TERMINAL (320078-00) 1452 RON
71 1 1 CORD CLAMP (003618-00) 558 RON
71 1 1 3618-00 - Indisponibil
72 1 2 SCREW.TEMP (148461-00) 558 RON
73 1 1 CORD PROTECTOR (445338-00) 1229 RON
74 1 1 CAPACITOR (148679-02) 4472 RON
75 1 3 SCREW.PLSTC THD FORM M5X32 T25 (330019-21) 558 RON
76 1 1 Screw M3.5 X9.5 (330019-01) 558 RON
77 1 1 145401-00 - Indisponibil
78 1 1 SPRING (21286-00) 558 RON
79 1 1 151308-00 - Indisponibil
80 1 1 98004-17 - Indisponibil
81 1 1 151311-00 - Indisponibil
82 1 6 98102-10 - Indisponibil
82 1 6 SCREX TEMP (098102-10) 558 RON
83 1 1 150988-00 - Indisponibil
84 1 1 149004-00 - Indisponibil
85 1 1 LEAD SA (145370-00) 1117 RON
86 1 1 LEAD SA (149005-00) 781 RON
87 1 1 LEAD SA (145374-00) 893 RON
88 1 1 000000-00 - Indisponibil
89 1 1 000000-00 - Indisponibil
90 1 1 000000-00 - Indisponibil
91 1 1 144942-02 - Indisponibil
100 1 1 147071-05 - Indisponibil
101 1 1 THUMBSCREW (609301-00) 781 RON
103 1 1 WRENCH (145378-02) 1229 RON
103 1 1 WRENCH (145378-01) 1452 RON
800 1 1 GREASE (5140061-28) 34336 RON
800 1 1 GREASE (790206-00) 34336 RON
