Top » Piese de schimb » PIESE BLACK & DECKER » KG1202 Type 2

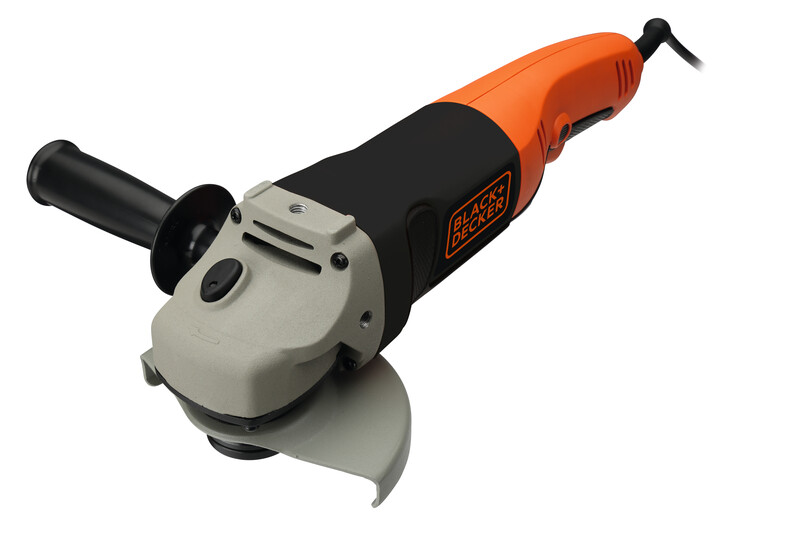

POLIZOR UNGHIULAR MIC BLACK+DECKER KG1202 Type 2
[KG1202 Type 2]
POLIZOR UNGHIULAR MIC BLACK+DECKER KG1202 Type 2
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC BLACK+DECKER KG1202 Type 2
Click pentru a mari
POLIZOR UNGHIULAR MIC BLACK+DECKER KG1202 Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 OUTER FLANGE (596386-00) 105 RON
2 1 1 INNER FLANGE (596387-00) 105 RON
3 1 1 GUARD (5170100-50) 4355 RON
4 1 3 SCREW (596392-00) 558 RON
5 1 1 STOP (5170100-51) 668 RON
6 1 1 GEARCASE COVER (5170100-52) 114 RON
7 1 1 BEARING (596395-00) 2124 RON
8 1 1 COVERPLATE (596770-00) 781 RON
9 1 1 SPINDLE (596394-00) 2124 RON
10 1 3 SCREW (596388-00) 558 RON
11 1 1 KEY (596438-00) 558 RON
12 1 1 GEAR (596396-00) 3018 RON
13 1 1 CIRCLIP (596397-00) 558 RON
14 1 1 BEARING SINTER (596398-00) 781 RON
15 1 1 GEARCASE (596399-00) 4137 RON
16 1 1 SHAFT (596534-00) 558 RON
17 1 1 SPRING (596401-00) 558 RON
18 1 1 SPINDLE LOCK (596402-00) 558 RON
19 1 5 SCREW (596403-00) 558 RON
20 1 1 BEARING (596406-00) 1452 RON
21 1 1 COVERPLATE (596407-00) 558 RON
22 1 2 SCREW (596408-00) 558 RON
23 1 1 NUT (596404-00) 558 RON
24 1 1 PINION GEAR (596405-00) 190 RON
25 1 1 ARMATURE SA (1004702-09) 11337 RON
26 1 1 BEARING (596410-00) 1229 RON
27 1 1 BEARING HOLDER (1004525-28) 558 RON
28 1 1 BAFFLE FAN (596412-00) 558 RON
29 1 2 SCREW (596413-00) 558 RON
30 1 1 FIELD SA (1004702-10) 6688 RON
31 1 1 HANDLE SA (569176-00) 781 RON
32 1 1 RATING LABEL (5170100-53) 588 RON
33 1 1 FIELD CASE (1004702-11) 3954 RON
34 1 1 BRAND LABEL (1004702-13) 668 RON
35 1 2 BRUSHBOX (596418-00) 781 RON
36 1 2 BRUSH 230V SA (596419-00) 893 RON
37 1 2 SPRING BRUSH (596422-00) 781 RON
38 1 4 WASHER (596421-00) 558 RON
39 1 4 SCREW (596420-00) 558 RON
40 1 2 SCREW (596430-00) 558 RON
41 1 1 HANDLE SA (5170100-54) 6688 RON
42 1 2 SCREW (596431-00) 558 RON
43 1 1 CORDCLAMP (596432-00) 558 RON
44 1 1 CORD PROTECTOR (596433-00) 558 RON
45 1 1 CORDSET (1004702-14) 3954 RON
46 1 1 SWITCH (596429-00) 7940 RON
47 1 1 TERMINAL BLOCK (5170100-55) 588 RON
48 1 1 PCB SA (1004702-16) 6688 RON
49 1 1 SPRING (596423-00) 558 RON
50 1 1 BUTTON LOCK-ON (596425-00) 781 RON
51 1 1 TRIGGER (5170100-56) 944 RON
52 1 1 PIN (5170100-57) 588 RON
53 1 1 SPRING (5170100-58) 588 RON
54 1 1 BUTTON LOCK-OFF (5170100-59) 944 RON
55 1 1 WRENCH (596440-00) 105 RON
56 1 1 TRIGGER (5170100-60) 1772 RON
57 1 1 SPINDLE (5170100-61) 11337 RON
58 1 1 GEARCASE SA (596539-00) 5591 RON
59 1 1 ARMATURE SA (1004702-15) 11337 RON
