POLIZOR UNGHIULAR MIC BLACK+DECKER G915 Type 3
[G915 Type 3]
POLIZOR UNGHIULAR MIC BLACK+DECKER G915 Type 3
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR MIC BLACK+DECKER G915 Type 3
Click pentru a mari
POLIZOR UNGHIULAR MIC BLACK+DECKER G915 Type 3
Click pentru a mari

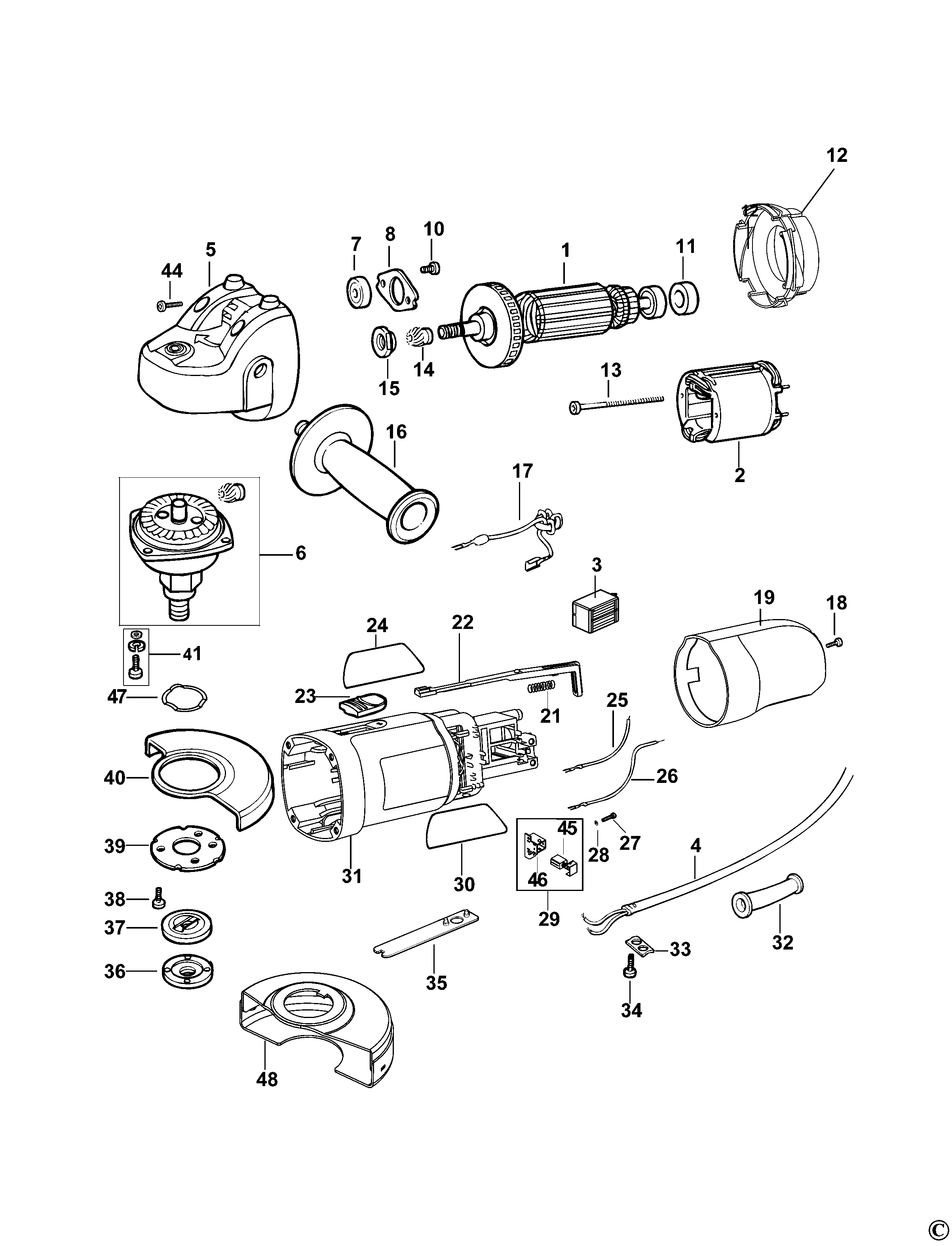

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (569157-00) 11519 RON
2 1 1 FIELD SA (569158-00) 4472 RON
3 1 1 SWITCH SA (5170013-83) 3954 RON
5 1 1 GEARCASE SA (569164-00) 5591 RON
6 1 1 SPINDLE SA (1004772-36) 12361 RON
7 1 1 BEARING (569167-00) 1788 RON
8 1 1 COVERPLATE (569168-00) 558 RON
10 1 2 SCREW (569170-00) 558 RON
11 1 1 COVER BEARING (1004515-16) 558 RON
12 1 1 BAFFLE (5140070-65) 558 RON
13 1 2 SCREW (569173-00) 558 RON
14 1 1 PINION (569174-00) 190 RON
15 1 1 NUT (569175-00) 558 RON
16 1 1 HANDLE SA (569176-00) 781 RON
17 1 2 LEAD (1004569-08) 781 RON
18 1 1 SCREW (569178-00) 558 RON
19 1 1 COVER REAR (1004515-01) 5591 RON
21 1 1 SPRING (1004515-18) 558 RON
22 1 1 ROD (1004515-02) 781 RON
23 1 1 KNOB (6010116-23) 588 RON
25 1 1 LEAD 90MM (1004515-19) 781 RON
26 1 1 LEAD 120MM BLACK (1004515-20) 781 RON
27 1 4 SCREW (569188-00) 558 RON
28 1 4 WASHER (569189-00) 558 RON
29 1 2 BRUSHBOX BRUSH 230V SA ( cod vechi 596448-00 ) (569190-00) 1117 RON
30 1 1 BRAND LABEL (1004702-08) 668 RON
31 1 1 FIELD CASE (1004515-07) 5591 RON
32 1 1 PROTECTOR (569194-00) 781 RON
33 1 1 CABLE CLAMP (569195-00) 558 RON
34 1 2 SCREW (569196-00) 558 RON
35 1 1 SPANNER (569197-00) 105 RON
36 1 1 OUTER FLANGE (569198-00) 105 RON
37 1 1 INNER FLANGE (569200-00) 105 RON
38 1 3 SCREW (569202-00) 558 RON
39 1 1 FLANGE (569203-00) 781 RON
40 1 1 GUARD (1004772-38) 2556 RON
41 1 4 SCREW (569206-00) 558 RON
44 1 4 SCREW (569209-00) 558 RON
45 1 2 BRUSH 230V SA KG900 (596071-00) 893 RON
46 1 2 BRUSHBOX (596072-00) 781 RON
47 1 1 WASHER THRUST (1004515-22) 781 RON
48 1 1 125mm SAG GUARD FOR EURO CONFORMITY (1004484-01) 4137 RON
