Top » Piese de schimb » PIESE BLACK & DECKER » KG88 Type 1

POLIZOR UNGHIULAR BLACK+DECKER KG88 Type 1
[KG88 Type 1]
POLIZOR UNGHIULAR BLACK+DECKER KG88 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR BLACK+DECKER KG88 Type 1
Click pentru a mari

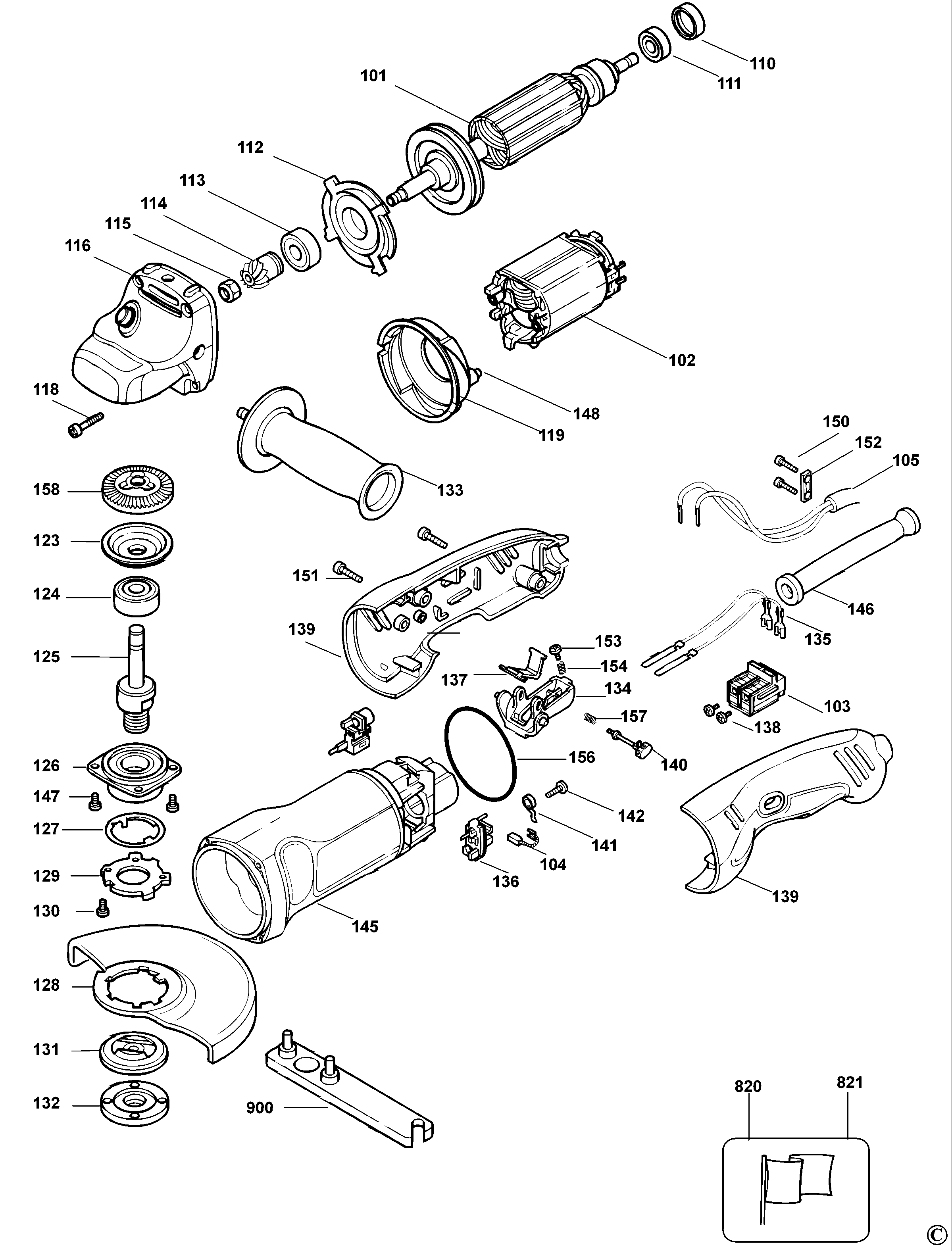

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
103 1 1 578957-01 - Indisponibil
110 1 1 SLEEVE BEARING (930275-00) 558 RON
111 1 1 Bearing Ball Comm. End (7 x 19 x6 (573119-02) 1788 RON
112 1 1 Fan Flange (401622-01) 105 RON
113 1 1 Bearing Ball Fan End (8 x 22 x 7 608 (573119-00) 1788 RON
115 1 1 Nut (Pinion fixing) (945292-00) 558 RON
116 1 1 GEARCASE (572166-01) 5591 RON
118 1 4 SCREW (562097-10) 558 RON
119 1 1 BAFFLE (401623-00) 781 RON
123 1 1 FLANGE WS45 (403156-00) 781 RON
124 1 1 Bearing KG15(949625-02) (573119-01) 2347 RON
126 1 1 574119-00 - Indisponibil
127 1 1 Guard Spring (393576-00) 781 RON
128 1 1 GUARD (944675-00) 2347 RON
129 1 1 FLANGE (605415-00) 781 RON
130 1 3 Screw (Wheel Guard) 1x3 (562160-00) 558 RON
133 1 1 Handle Side(945597-00) DW803/801 (562211-00) 2347 RON
133 1 1 SIDE HANDLE (573115-00) 1452 RON
134 1 1 575625-02 - Indisponibil
135 1 2 LEADWIRE (574155-04) 781 RON
137 1 1 LEVER LOCK OFF (572169-00) 558 RON
138 1 2 SCREW (562097-13) 558 RON
139 1 1 573208-04 - Indisponibil
140 1 1 BUTTON LOCK ON (572170-00) 558 RON
141 1 2 TORSION SPRING (562204-00) 558 RON
142 1 2 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
145 1 1 HOUSING (573211-01) 4137 RON
146 1 1 573058-00 - Indisponibil
147 1 4 Screw For Gear Case Cover (M4 x 10) (562160-01) 558 RON
148 1 2 PLUG (949638-01) 558 RON
150 1 2 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
151 1 2 Screw DW201 171 (562097-05) 558 RON
152 1 1 CORD CLAMP (930103-00) 190 RON
153 1 1 SCREW (575460-00) 558 RON
154 1 1 SPRING (575461-00) 558 RON
156 1 1 O RING (393799-00) 781 RON
157 1 1 SPRING (574113-00) 558 RON
158 1 1 391489-00 - Indisponibil
821 1 1 RATING PLATE (569036-00) 893 RON
900 1 1 560462-00 - Indisponibil
900 1 1 574122-00 - Indisponibil
