POLIZOR UNGHIULAR BLACK+DECKER KG70 Type 1 - XE
[KG70 Type 1 - XE]
POLIZOR UNGHIULAR BLACK+DECKER KG70 Type 1 - XE
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR BLACK+DECKER KG70 Type 1 - XE
Click pentru a mari

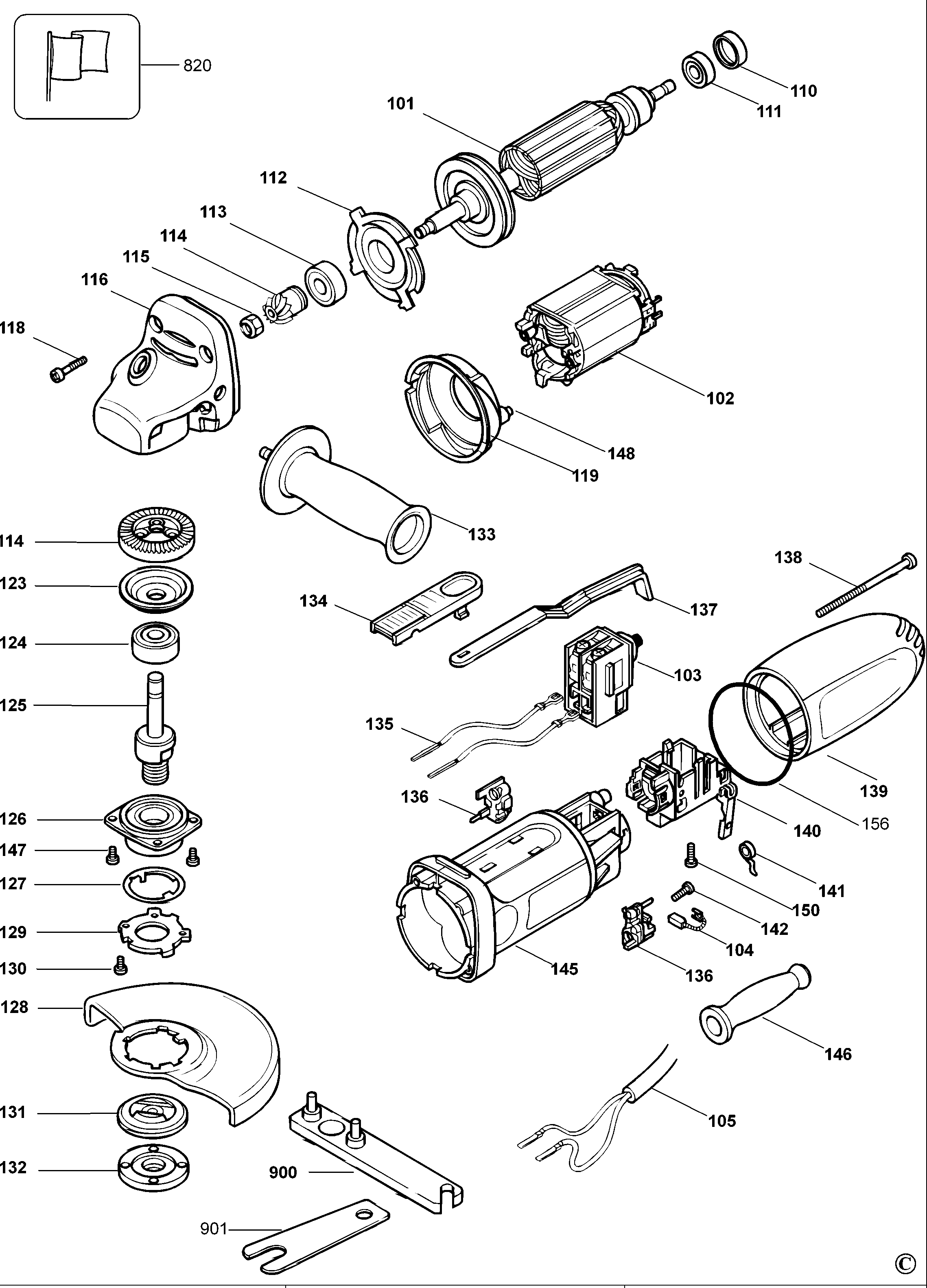

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 573106-00 - Indisponibil
102 1 1 575787-00 - Indisponibil
103 1 1 SWITCH (945614-00) 4137 RON
103 1 1 NA952688 - Indisponibil
104 1 2 BRUSH (930151) 2124 RON
110 1 1 930275 - Indisponibil
110 1 1 SLEEVE BEARING (930275-00) 558 RON
111 1 1 949625-01 - Indisponibil
111 1 1 390821-01 - Indisponibil
112 1 1 Fan Flange (401622-01) 105 RON
113 1 1 BEARING (N110358) 2347 RON
113 1 1 BEARING (330003-05) 3466 RON
114 1 1 GEAR & PINION (945295-01) 10512 RON
114 1 1 GEAR & PINION (661243-00) 5591 RON
114 1 1 GEAR & PINION (N490505) 11337 RON
115 1 1 Nut (Pinion fixing) (945292-00) 558 RON
116 1 1 572116-01 - Indisponibil
118 1 4 SCREW (562097-01) 558 RON
119 1 1 BAFFLE (401623-00) 781 RON
123 1 1 Gear Flange (945299-00) 781 RON
124 1 1 BEARING (949625-02) 7940 RON
124 1 1 Bearing DW801 (605040-22) 2347 RON
126 1 1 574117-00 - Indisponibil
127 1 1 Guard Spring (393576-00) 781 RON
128 1 1 GUARD (944675-00) 2347 RON
129 1 1 Flange For Wheel Guard (944674-00) 781 RON
129 1 1 FLANGE (605415-00) 781 RON
130 1 3 Screw (Wheel Guard) 1x3 (562160-00) 558 RON
131 1 1 Inner Flange KG-70 (391968-00) 1117 RON
132 1 1 Outter Flange KG-70 (947214-00) 1117 RON
133 1 1 Handle Side(945597-00) DW803/801 (562211-00) 2347 RON
133 1 1 SIDE HANDLE (573115-00) 1452 RON
134 1 1 SLIDER SA KG65 (574258-00) 893 RON
135 1 2 574155-03 - Indisponibil
136 1 2 SA BRUSH HOLDER (569666-00) 105 RON
137 1 1 572121-00 - Indisponibil
138 1 1 SCREW (562097-13) 558 RON
139 1 1 572125-00 - Indisponibil
140 1 1 SWITCH SUPPORT (569625-00) 1452 RON
140 1 1 SWITCH SUPPORT (5140000-13) 190 RON
141 1 1 TORSION SPRING (562204-00) 558 RON
142 1 2 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
145 1 1 572124-02 - Indisponibil
146 1 1 573058-00 - Indisponibil
147 1 4 Screw For Gear Case Cover (M4 x 10) (562160-01) 558 RON
148 1 2 PLUG (949638-01) 558 RON
150 1 1 Screw DW201 171 (562097-05) 558 RON
156 1 1 O RING (393799-00) 781 RON
900 1 1 WRENCH PIN (401253-00) 1452 RON
