Top » Piese de schimb » PIESE BLACK & DECKER » KG16 Type 4

POLIZOR UNGHIULAR BLACK+DECKER KG16 Type 4
[KG16 Type 4]
POLIZOR UNGHIULAR BLACK+DECKER KG16 Type 4
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR BLACK+DECKER KG16 Type 4
Click pentru a mari

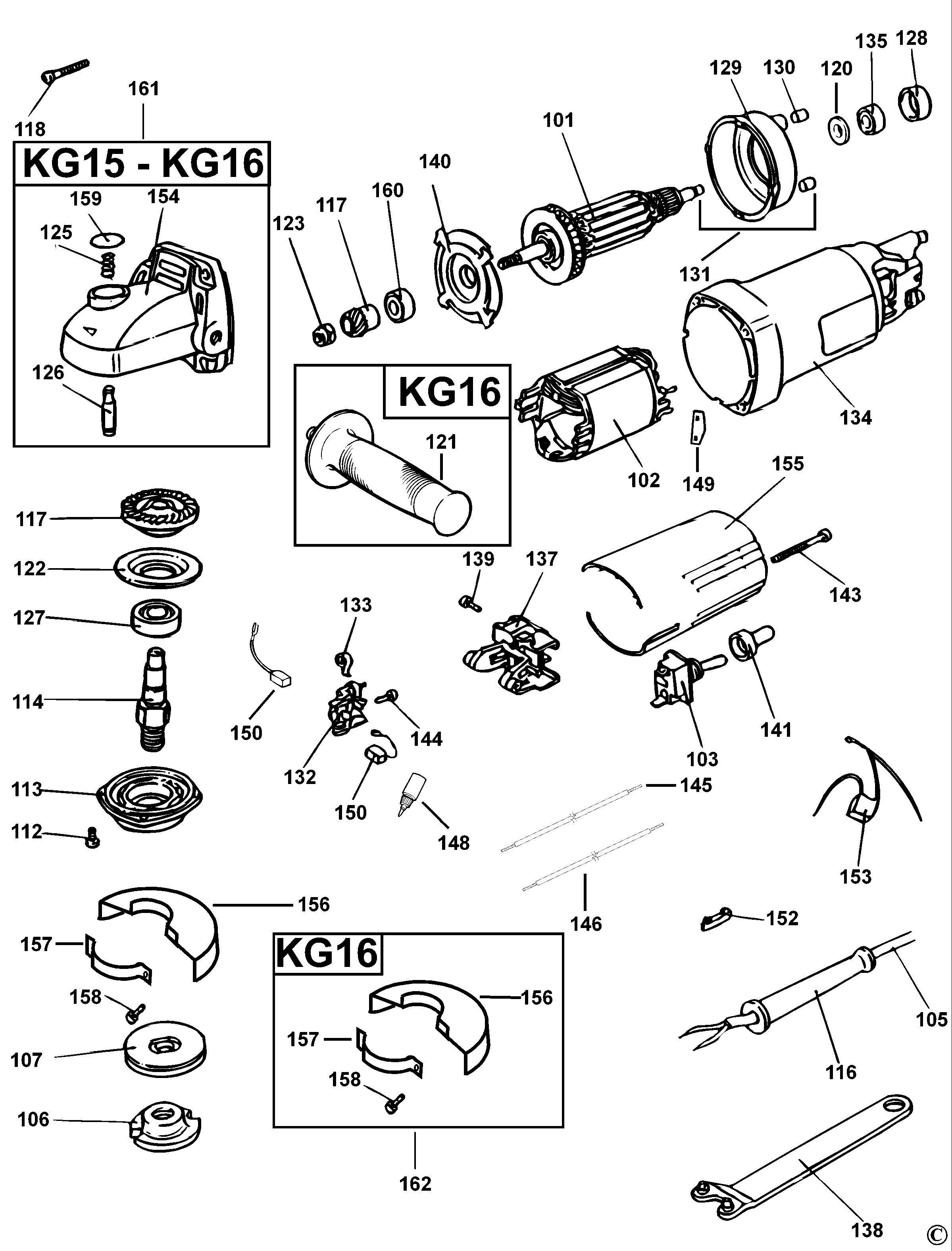

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
102 1 1 FIELD (396157-00) 15993 RON
107 1 1 INNER FLANGE (391969-00) 1788 RON
112 1 4 SCREW (562160-07) 558 RON
113 1 1 000000-00 - Indisponibil
114 1 1 AXLE FOR DW818 (391971-00) 5031 RON
116 1 1 N542553 - Indisponibil
116 1 1 PROTECTOR CORD (330005-01) 105 RON
116 1 1 CORD PROTECTOR (N918736) 668 RON
117 1 1 GEAR & PINION (945295-01) 10512 RON
117 1 1 GEAR & PINION (661243-00) 5591 RON
117 1 1 GEAR & PINION (N490505) 11337 RON
118 1 4 SCREW (562097-01) 558 RON
120 1 1 SPACER (945287-00) 558 RON
121 1 1 HANDLE SIDE SA (945597-00) 1452 RON
122 1 1 Gear Flange (945299-00) 781 RON
123 1 1 Nut (Pinion fixing) (945292-00) 558 RON
125 1 1 SPRING (562210-00) 558 RON
126 1 1 LOCK PIN (944571-00) 893 RON
127 1 1 Bearing KG15(949625-02) (573119-01) 2347 RON
128 1 1 SLEEVE BEARING (930275-00) 558 RON
129 1 1 BAFFLE (401623-00) 781 RON
130 1 2 PLUG (949638-01) 558 RON
131 1 1 SA Baffle (401635-00) 781 RON
132 1 2 604149-00 - Indisponibil
132 1 2 BRUSH HOLDER (395984-00) 1117 RON
133 1 2 TORSION SPRING (562204-00) 558 RON
134 1 1 396007-02 - Indisponibil
135 1 1 Bearing Ball Comm. End (7 x 19 x6 (573119-02) 1788 RON
137 1 1 SWITCH SUPPORT (397701-00) 105 RON
138 1 1 Wrench(Spanner) DW831 (401680-00) 2124 RON
139 1 1 Screw DW201 171 (562097-05) 558 RON
140 1 1 Fan Flange (401622-01) 105 RON
141 1 1 SWITCH COVER (943254-00) 558 RON
143 1 2 Screw Self Drive For Handle (4.3 x 37) (562097-02) 558 RON
144 1 2 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
148 1 1 949933-16 - Indisponibil
149 1 2 PAD (402489-00) 558 RON
150 1 2 BRUSH 230V SA (930151-00) 2124 RON
154 1 1 569599-02 - Indisponibil
155 1 1 562158-01 - Indisponibil
156 1 1 561706-00 - Indisponibil
157 1 1 562183-00 - Indisponibil
158 1 2 562160-02 - Indisponibil
159 1 1 BUTTON (562157-00) 781 RON
160 1 1 Bearing Ball Fan End (8 x 22 x 7 608 (573119-00) 1788 RON
161 1 1 562306-01 - Indisponibil
162 1 1 562197-01 - Indisponibil
