Top » Piese de schimb » PIESE BLACK & DECKER » KG15 Type 1

POLIZOR UNGHIULAR BLACK+DECKER KG15 Type 1
[KG15 Type 1]
POLIZOR UNGHIULAR BLACK+DECKER KG15 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR BLACK+DECKER KG15 Type 1
Click pentru a mari

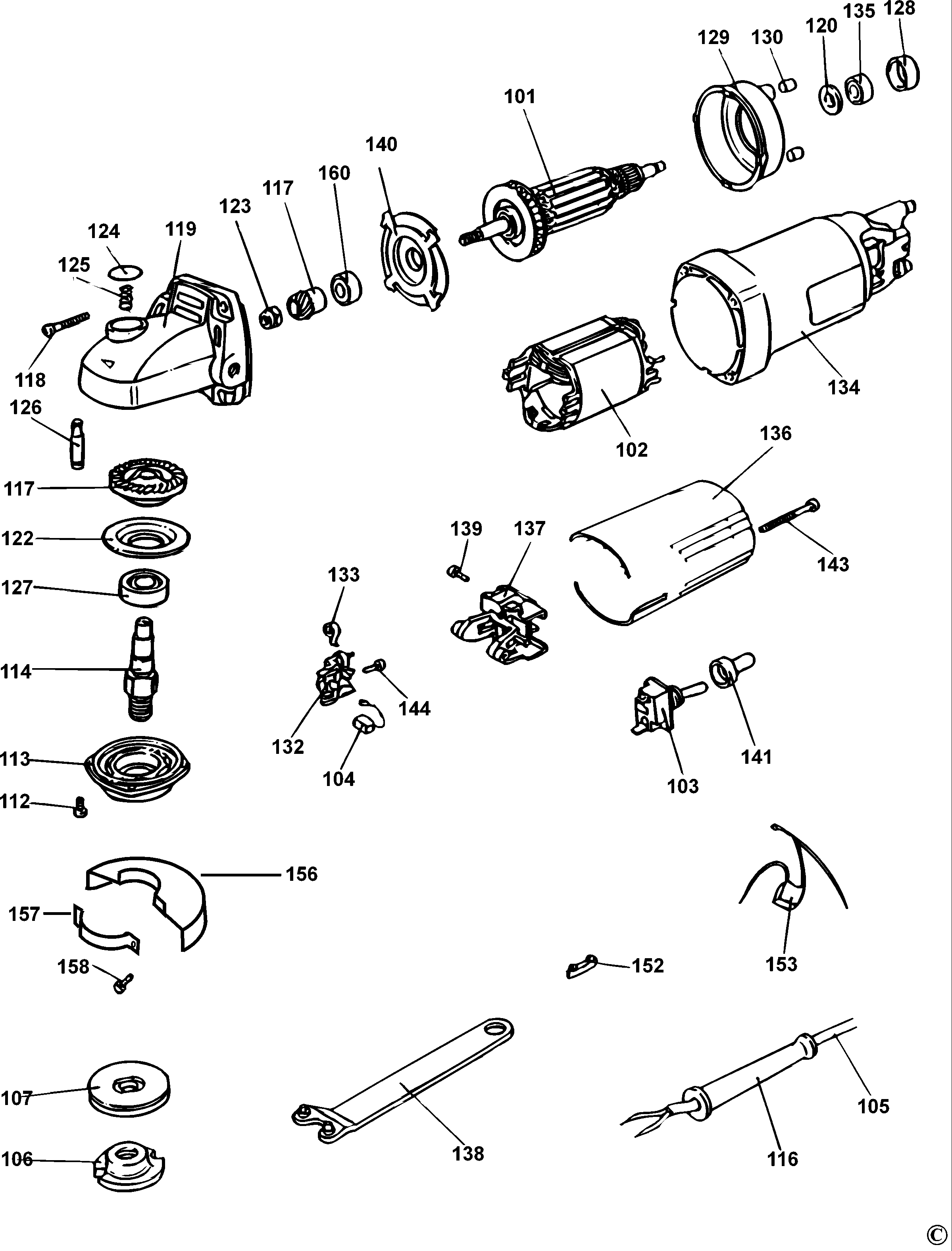

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
104 1 2 BRUSH CUT OFF (939539-01) 2124 RON
106 1 1 INNER FLANGE (947466-00) 1788 RON
106 1 1 FLANGE (622208-00) 190 RON
107 1 1 659110-00 - Indisponibil
107 1 1 FLANGE (622209-00) 2124 RON
112 1 4 SCREW (562160-07) 558 RON
113 1 1 000000-00 - Indisponibil
114 1 1 SPINDLE (391970-00) 3466 RON
114 1 1 622210-00 - Indisponibil
116 1 1 N542553 - Indisponibil
116 1 1 PROTECTOR CORD (330005-01) 105 RON
116 1 1 CORD PROTECTOR (N918736) 668 RON
117 1 1 GEAR & PINION (945295-01) 10512 RON
117 1 1 GEAR & PINION (661243-00) 5591 RON
117 1 1 GEAR & PINION (N490505) 11337 RON
118 1 4 SCREW (562097-01) 558 RON
119 1 1 SA Gear Case (562304-01) 7940 RON
119 1 1 562304-01SV - Indisponibil
120 1 1 SPACER INSULATING (398906-00) 558 RON
122 1 1 Gear Flange (945299-00) 781 RON
123 1 1 Nut (Pinion fixing) (945292-00) 558 RON
124 1 1 LOCK BUTTON (944575-00) 558 RON
125 1 1 SPRING (562210-00) 558 RON
126 1 1 LOCK PIN (944571-00) 893 RON
127 1 1 BEARING (949625-02) 7940 RON
127 1 1 Bearing DW801 (605040-22) 2347 RON
128 1 1 SLEEVE BEARING (930275-00) 558 RON
129 1 1 BAFFLE (401623-00) 781 RON
130 1 2 PLUG (949638-01) 558 RON
132 1 2 BRUSH HOLDER SA (395986-00) 1117 RON
133 1 2 TORSION SPRING (562204-00) 558 RON
134 1 1 944580-02 - Indisponibil
135 1 1 BEARING (390821-00) 5591 RON
135 1 1 BEARING (605040-02) 1788 RON
136 1 1 562158-00 - Indisponibil
137 1 1 SWITCH SUPPORT (397701-00) 105 RON
138 1 1 WRENCH PIN (401253-00) 1452 RON
139 1 1 Screw DW201 171 (562097-05) 558 RON
140 1 1 Fan Flange (401622-01) 105 RON
141 1 1 SWITCH COVER (943254-00) 558 RON
143 1 2 Screw Self Drive For Handle (4.3 x 37) (562097-02) 558 RON
144 1 2 Screw For Brush Holder Assy.(4.2 x 13) (562097-00) 558 RON
152 1 1 Screw Connector (930187-00) 781 RON
156 1 1 562182-00 - Indisponibil
157 1 1 562183-00 - Indisponibil
158 1 2 Screw For Gear Case Cover (M4 x 10) (562160-01) 558 RON
160 1 1 390821-01 - Indisponibil
160 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
