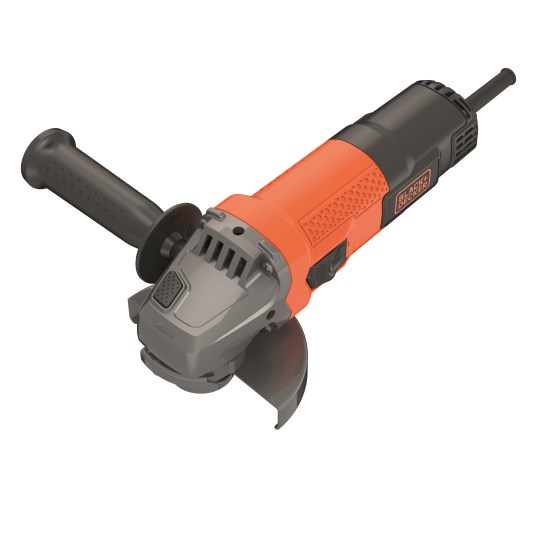

POLIZOR UNGHIULAR BLACK+DECKER KFBEG110 Type 3
[KFBEG110 Type 3]
POLIZOR UNGHIULAR BLACK+DECKER KFBEG110 Type 3
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR BLACK+DECKER KFBEG110 Type 3
Click pentru a mari
POLIZOR UNGHIULAR BLACK+DECKER KFBEG110 Type 3
Click pentru a mari

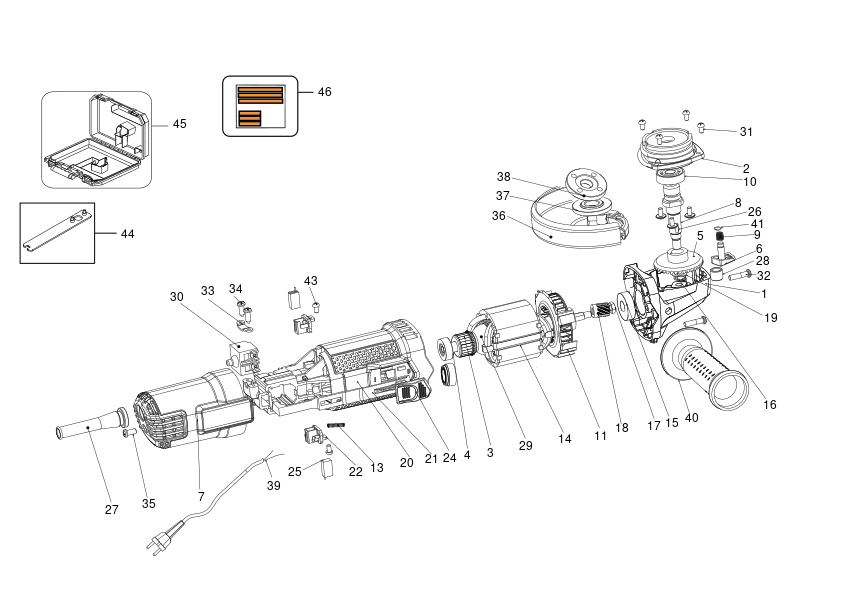

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GEARCASE SA (N843153) 6688 RON
2 1 1 COVER (N849491) 2796 RON
3 1 1 ARMATURE AND FAN (N520520) 741 RON
4 1 1 BEARING,BALL (90609688) 114 RON
5 1 1 Gear (N505684) 1933 RON
6 1 1 LOCK PIN (N528685) 668 RON
7 1 1 COVER (N771071) 1933 RON
8 1 1 OUTPUT SHAFT SA (N849482) 1933 RON
9 1 1 SPRING (N522581) 588 RON
10 1 1 BEARING BALL (N529734) 1318 RON
11 1 1 BAFFLE FAN (N516758) 668 RON
12 1 1 SLEEVE (N541114) 588 RON
13 1 1 SPRING (90606067) 588 RON
14 1 1 FIELD SA (N512974) 741 RON
15 1 1 BEARING (90532404) 105 RON
16 1 1 RING (N529735) 588 RON
17 1 1 NUT (N528683) 588 RON
18 1 1 PINION (N505694) 82 RON
19 1 1 WASHER (N529724) 588 RON
20 1 1 HOUSING SA (N771080) 2796 RON
21 1 1 LINK (90604790) 588 RON
22 1 2 HOLDER (N532429) 588 RON
24 1 1 BUTTON RELEASE (N559053) 588 RON
25 1 1 BRUSH PAIR SA (N666030) 4827 RON
26 1 1 KEY (N532793) 588 RON
27 1 1 CORD PROTECTOR (90604794) 588 RON
28 1 1 BEARING (N529722) 588 RON
29 1 1 ARMATURE SA (N521253) 741 RON
30 1 1 SWITCH (N744415) 5370 RON
31 1 1 SCREW (N604048) 588 RON
32 1 4 SCREW (N529725) 588 RON
33 1 1 CLAMP (N529726) 588 RON
34 1 1 SCREW (N529727) 588 RON
35 1 1 SCREW (N529731) 588 RON
36 1 1 GUARD SA (NA402153) 3268 RON
37 1 1 Connection for grinding wheel (90604847) 944 RON
38 1 1 OUTER FLANGE (N547712) 82 RON
39 1 1 CORDSET (EURO) (N529515) 2556 RON
40 1 1 HANDLE (90604851) 1318 RON
41 1 1 CLIP (N529723) 588 RON
43 1 2 SCREW (N529730) 588 RON
44 1 1 WRENCH SPECIAL (90604852) 944 RON
46 1 1 RATING LABEL (NA274203) 588 RON
