POLIZOR UNGHIULAR BLACK+DECKER BCG720 Type 1
[BCG720 Type 1]
POLIZOR UNGHIULAR BLACK+DECKER BCG720 Type 1
Click pentru a mari
Imagini suplimentare
POLIZOR UNGHIULAR BLACK+DECKER BCG720 Type 1
Click pentru a mari
POLIZOR UNGHIULAR BLACK+DECKER BCG720 Type 1
Click pentru a mari

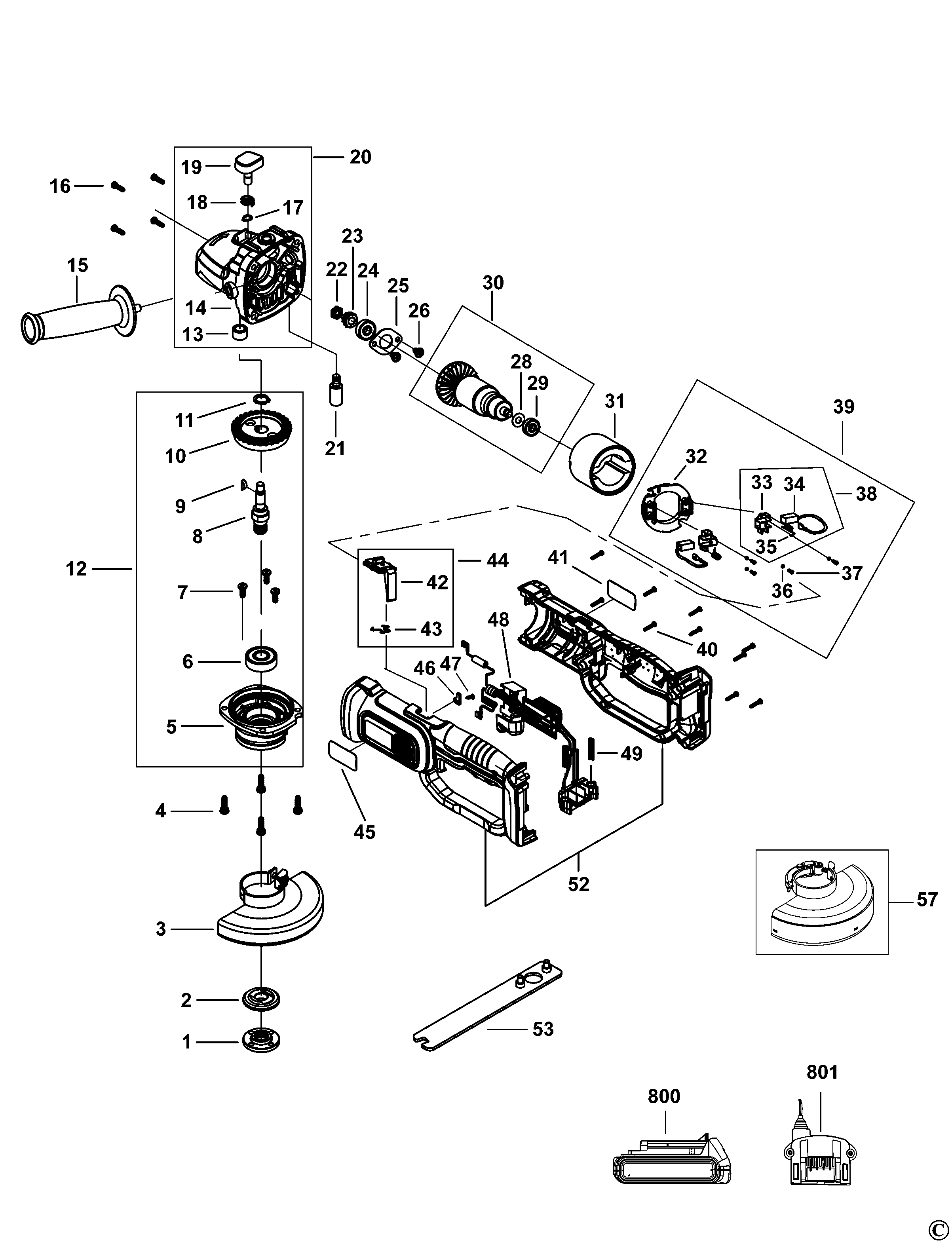

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 OUTER FLANGE (569198-00) 105 RON
2 1 1 INNER FLANGE (569200-00) 105 RON
3 1 1 GUARD (1004742-69) 6688 RON
4 1 4 SCREW (5170010-73) 588 RON
5 1 1 COVER GEARCASE (1004742-70) 1772 RON
6 1 1 SCREW (5170010-73) 588 RON
7 1 3 5140040-57 - Indisponibil
8 1 1 SPINDLE (1004742-71) 3268 RON
9 1 1 KEY (5140040-54) 588 RON
10 1 1 Gear (1004742-72) 5370 RON
11 1 1 RING (5140040-59) 588 RON
12 1 1 SPINDLE SA (6010379-00) 10241 RON
13 1 1 SLEEVE BEARING (5140040-60) 944 RON
14 1 1 GEARCASE (1004742-82) 9012 RON
15 1 1 SIDE HANDLE (5140140-87) 2556 RON
16 1 4 SCREW (569209-00) 558 RON
17 1 1 CIRCLIP (5140040-61) 588 RON
18 1 1 SPRING (5140040-64) 588 RON
19 1 1 BUTTON (1004742-73) 588 RON
20 1 1 GEARCASE SA (1004742-74) 11337 RON
21 1 1 SCREW (1004742-75) 944 RON
22 1 1 NUT (569175-00) 558 RON
23 1 1 PINION (1004742-76) 3268 RON
24 1 1 BEARING (569167-00) 1788 RON
25 1 1 COVERPLATE (569168-00) 558 RON
26 1 2 SCREW (569170-00) 558 RON
28 1 1 RING (5170010-84) 588 RON
29 1 1 BEARING (5140040-68) 1933 RON
30 1 1 ARMATURE SA (5170010-85) 21676 RON
31 1 1 FIELD (5170010-86) 10241 RON
32 1 1 RING (5170010-87) 1318 RON
33 1 2 BRUSH HOLDER (5170010-88) 944 RON
34 1 1 BRUSH PAIR (5170010-89) 3268 RON
35 1 2 SPRING TORSION (5170010-90) 588 RON
36 1 4 WASHER (569189-00) 558 RON
37 1 4 SCREW (569188-00) 558 RON
38 1 1 BRUSH AND HOLDER (1004742-77) 2796 RON
39 1 1 RING SA (5170010-92) 6688 RON
40 1 11 SCREW (5170010-93) 588 RON
41 1 1 RATING PLATE (N746311) 588 RON
41 1 1 NA011172 - Indisponibil
42 1 1 LEVER LOCK-OFF (5170010-96) 668 RON
43 1 1 DETENT (5170010-97) 588 RON
44 1 1 LEVER SA (5170010-98) 944 RON
45 1 1 BRAND LABEL (1004742-79) 588 RON
46 1 1 CLAMP (5170010-99) 588 RON
47 1 1 SCREW (5170011-00) 588 RON
48 1 1 SWITCH SA (1004742-80) 27287 RON
49 1 1 SPRING (5170011-02) 588 RON
52 1 1 CLAMSHELL SA (1004742-81) 18568 RON
53 1 1 SPANNER (569197-00) 105 RON
57 1 1 GUARD (1004702-44) 4827 RON
801 1 1 BATTERY 18V - 2.0AH - 36WH (N879820) 40734 RON
801 1 1 N825758 - Indisponibil
801 1 1 CHARGER SA (90590289-05) 15469 RON
