Top » Piese de schimb » PIESE BLACK & DECKER » MBR100-32 Type 2

PLATE JOINER AUST/SWITZ BLACK+DECKER MBR100-32 Type 2
[MBR100-32 Type 2]
PLATE JOINER AUST/SWITZ BLACK+DECKER MBR100-32 Type 2
Click pentru a mari
Imagini suplimentare
PLATE JOINER AUST/SWITZ BLACK+DECKER MBR100-32 Type 2
Click pentru a mari

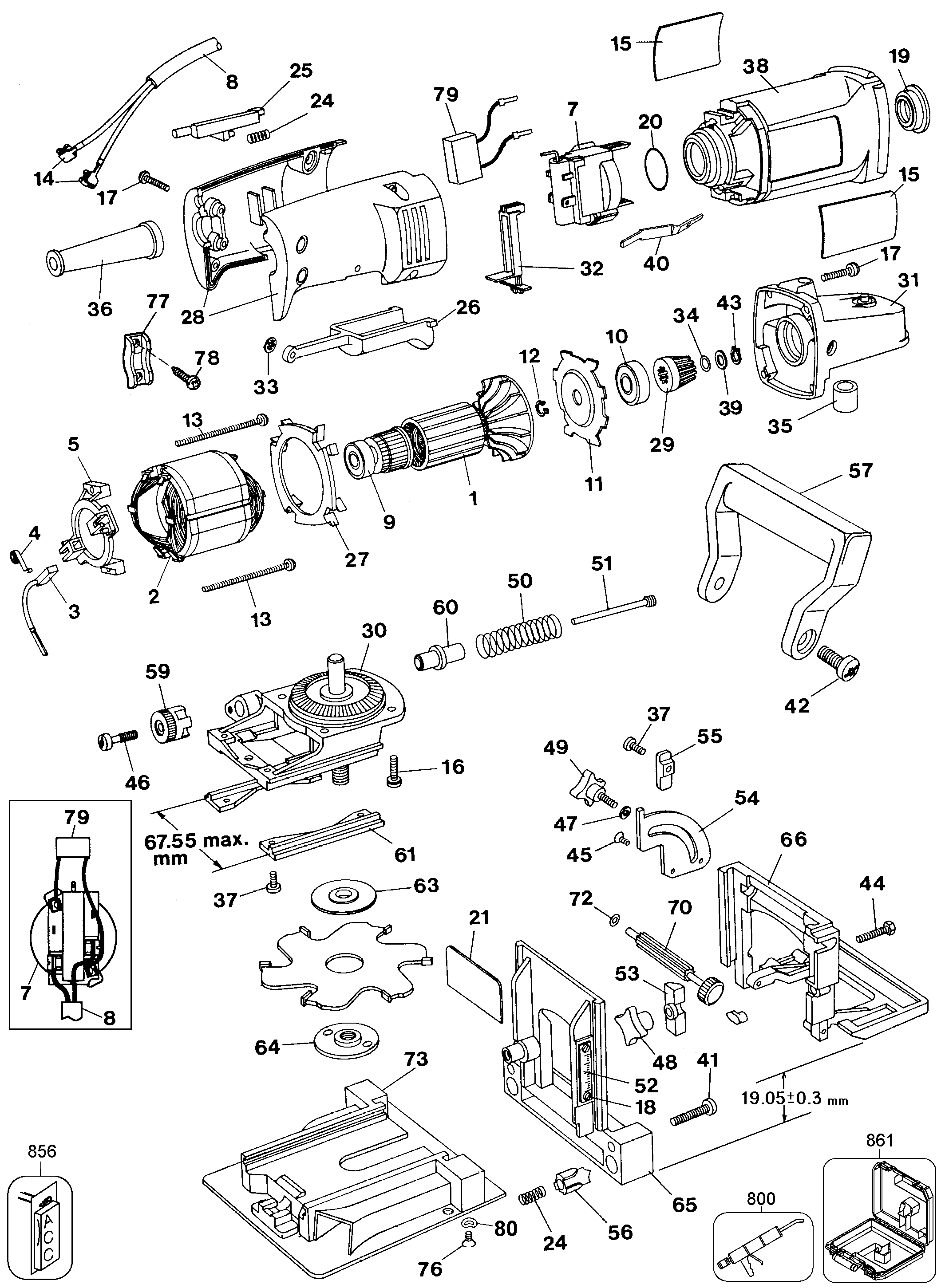

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (150320-05) 37579 RON
2 1 1 150050-01 - Indisponibil
3 1 2 BRUSH 230V SA (445861-12) 2347 RON
3 1 2 BRUSH & LEAD (445861-30) 1788 RON
4 1 2 SPRING BRUSH (445860-00) 558 RON
5 1 1 RING (449899-05) 190 RON
7 1 1 SWITCH (147789-01) 11519 RON
8 1 1 147170-01 - Indisponibil
8 1 1 CORDSET (429882-17) 22144 RON
9 1 1 330003-04 - Indisponibil
9 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
10 1 1 BALL BEARING (330003-08) 3018 RON
10 1 1 BEARING BALL (605040-15) 2347 RON
11 1 1 BEARING (150057-00) 781 RON
12 1 1 RETAINING RING (444793-00) 558 RON
13 1 2 SCREW (445880-00) 558 RON
14 1 2 TERMINAL (151169-00) 781 RON
15 1 2 152529-00 - Indisponibil
16 1 4 SCREW (146929-00) 558 RON
17 1 8 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
18 1 2 Screw Taptite (330045-43) 558 RON
19 1 1 KNOB (147750-00) 2347 RON
19 1 1 SLEEVE (445217-02) 781 RON
20 1 1 SEAL (700248-00) 558 RON
21 1 1 152528-15 - Indisponibil
24 1 3 SPRING (147809-00) 558 RON
25 1 1 BUTTON (147722-00) 105 RON
26 1 1 147723-03 - Indisponibil
27 1 1 BAFFLE (445876-00) 781 RON
28 1 1 147727-06 - Indisponibil
29 1 1 PINION (152487-01) 1117 RON
30 1 1 GEARCASE COVER SA (147730-01) 3592 RON
30 1 1 GEARCASE COVER (147730-02) 25164 RON
30 1 1 GEARCASE COVER (NA065769) 28836 RON
31 1 1 GEARCASE SA (N835822) 12361 RON
31 1 1 GEARCASE SA MBR100 (150323-00) 10512 RON
31 1 1 GEARCASE COVER (150323-00SV) 10512 RON
32 1 1 ACTUATOR (151144-01) 190 RON
33 1 1 RING (701901-00) 558 RON
34 1 1 147801-00 - Indisponibil
34 1 1 RING (050050-00) 558 RON
34 1 1 50050-00 - Indisponibil
35 1 1 SLEEVE BEARING (036826-00) 1117 RON
35 1 1 36826-00 - Indisponibil
36 1 1 N542553 - Indisponibil
36 1 1 PROTECTOR CORD (330005-01) 105 RON
36 1 1 CORD PROTECTOR (N918736) 668 RON
37 1 5 SCREW.TEMP (330045-05) 558 RON
38 1 1 445886-09 - Indisponibil
39 1 1 WASHER (449559-00) 558 RON
40 1 2 CONTACT (445882-00) 558 RON
40 1 2 CONTACT (445882-99) 558 RON
41 1 2 Screw Metal (330045-16) 558 RON
42 1 2 SCREW (330045-32) 781 RON
43 1 1 RING (38751-00) 558 RON
44 1 1 SCREW (098022-25) 558 RON
44 1 1 98022-25 - Indisponibil
45 1 2 98102-10 - Indisponibil
45 1 2 SCREX TEMP (098102-10) 558 RON
46 1 1 SCREW (147791-00) 558 RON
47 1 1 WASHER (330016-07) 558 RON
47 1 1 488807-00 - Indisponibil
48 1 1 GREASE (283484-00) 32770 RON
48 1 1 KNOB (396991-00) 558 RON
49 1 1 KNOB (396992-00) 558 RON
50 1 1 SPRING (147758-00) 893 RON
51 1 1 SHAFT (147759-00) 893 RON
52 1 1 SCALE (147797-01) 1229 RON
53 1 1 CLAMP (147749-00) 893 RON
54 1 1 QUADRANT (147795-00) 3018 RON
55 1 1 STOP (147786-00) 1229 RON
56 1 2 PIN (147753-00) 893 RON
57 1 1 HANDLE (147793-00) 3466 RON
59 1 1 381285-02 - Indisponibil
59 1 1 STOP (147760-00) 3466 RON
60 1 1 GUIDE (147785-00) 893 RON
61 1 2 PAD (147736-01) 1117 RON
63 1 1 WASHER (147725-00) 2124 RON
64 1 1 NUT (151001-00) 2347 RON
65 1 1 SUPPORT (147741-00) 14315 RON
66 1 1 147740-01 - Indisponibil
66 1 1 147740-01SV - Indisponibil
70 1 1 PINION (147745-00SV) 7940 RON
70 1 1 PINION (147745-00) 10512 RON
72 1 2 RING (147799-00) 558 RON
73 1 1 BASEPLATE SA MBR100 TYPE 2 (385914-00) 28296 RON
76 1 4 SCREW (98103-16) 558 RON
76 1 4 SCREW (98103-17) 558 RON
76 1 4 SCREW (385915-00) 558 RON
76 1 4 5140160-00 - Indisponibil
76 1 4 SCREW (385915-01) 558 RON
77 1 1 CORD CLAMP (450877-00) 558 RON
78 1 1 761995-00 - Indisponibil
78 1 2 SCREW PLSTC THD FORM M3.5X13 T15 (330019-02) 558 RON
79 1 1 CAPACITOR (147792-00) 4137 RON
80 1 4 WASHER SPRING (5140061-09) 4472 RON
80 1 4 WASHER SPRING MBR100 TYPE 2 (385946-00) 558 RON
800 1 1 GREASE (283484-01) 62298 RON
800 1 1 GREASE (761995-01) 23598 RON
856 1 1 ADAPTOR (147794-00) 190 RON
856 1 1 147734-05 - Indisponibil
856 1 1 DUST ATTACHMENT (151002-00) 2795 RON
856 1 1 KEY (152693-00) 2124 RON
856 1 1 SPANNER (445871-00) 190 RON
