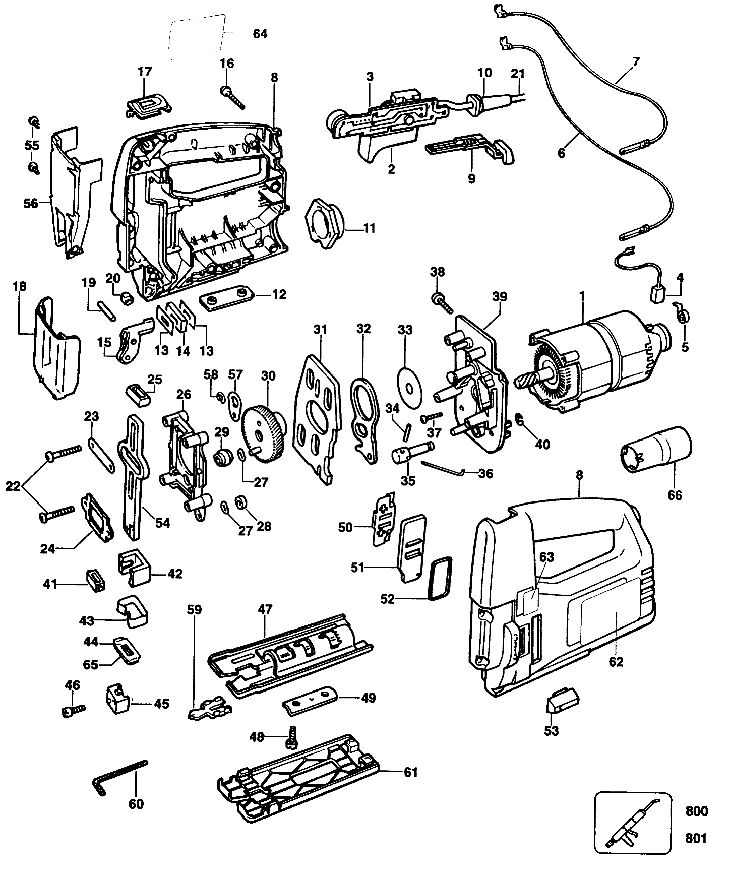

PL31 JIGSAW Type 1
[PL31 Type 1]
PL31 JIGSAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA MOTOR+GEARBOX 230V (SERVICE) (478142-00) 86681 RON
2 1 1 SWITCH. BLACK (795668-02) 2795 RON
3 1 1 S.A. P.C.B. (795690-01) 10512 RON
4 1 2 CARBON BRUSH (832998-07) 558 RON
5 1 2 Spring KR500 (747634) 558 RON
6 1 1 S.A. LEADWIRE (811562) 781 RON
7 1 1 S.A. LEADWIRE (811563) 781 RON
9 1 1 SA BUTTON BLACK (795876-00) 781 RON
10 1 1 CORD PROTECTOR (770235) 558 RON
11 1 1 OUTLET. VACUUM (805156) 558 RON
12 1 1 NUT. SHOE (795666) 781 RON
13 1 2 SEAL PLATE (795656) 558 RON
14 1 1 000000-00 - Indisponibil
15 1 1 SA ACTUATOR (795670) 5591 RON
16 1 7 SCREW NO.8 X 19 POLY (809961) 558 RON
17 1 1 CLAMSHELL INSERT (795877-00) 781 RON
18 1 1 GUARD (795881) 190 RON
19 1 1 NEEDLE ROLLER (795699) 558 RON
20 1 2 AXLE BLOCK (795673) 781 RON
21 1 1 CORD PWR SUPPLY GB (330060-28) 12861 RON
22 1 4 SCREW M4*34 PAN HEAD (807025) 781 RON
23 1 1 CLAMP (795647) 558 RON
24 1 1 RETAINER CARRIER (795682) 558 RON
25 1 1 TOP BEARING (795680) 893 RON
26 1 1 CASTING RECIP. SHAFT (795651) 1452 RON
27 1 2 SPRING WASHER (823954) 558 RON
28 1 1 SPACER (795708-01) 558 RON
29 1 1 000000-00 - Indisponibil
29 1 1 000000-00 - Indisponibil
30 1 1 SA MOTOR+GEARBOX 230V (SERVICE) (478142-00) 86681 RON
31 1 1 000000-00 - Indisponibil
32 1 1 FORK (795679) 190 RON
33 1 1 000000-00 - Indisponibil
34 1 1 000000-00 - Indisponibil
35 1 1 000000-00 - Indisponibil
36 1 1 SELECTOR ROD (795675) 558 RON
37 1 4 SCREW (747329) 558 RON
38 1 2 SCREW 8-16 X 3/4 (849256) 558 RON
39 1 1 000000-00 - Indisponibil
40 1 1 000000-00 - Indisponibil
41 1 1 000000-00 - Indisponibil
42 1 1 BEARING CARRIER (795645) 2124 RON
43 1 1 000000-00 - Indisponibil
44 1 1 000000-00 - Indisponibil
45 1 1 000000-00 - Indisponibil
46 1 2 SCREW M4*14 TORX / SLOTTED (571055-00) 558 RON
47 1 1 000000-00 - Indisponibil
48 1 2 SCREW M5 X 14 TORX / SLOTTED (571056-00) 558 RON
49 1 1 000000-00 - Indisponibil
50 1 1 SPRING (795687) 558 RON
51 1 1 CARRIER. BLACK (795685-00) 893 RON
52 1 1 SEAL. CARRIER (795684) 781 RON
53 1 1 KNOB. BLACK (795686-00) 558 RON
54 1 1 000000-00 - Indisponibil
55 1 4 SCREW NO.6 X 12.7 (821057) 558 RON
56 1 1 CASTING. FRONT (795880-01) 7940 RON
57 1 1 000000-00 - Indisponibil
58 1 1 000000-00 - Indisponibil
59 1 1 000000-00 - Indisponibil
60 1 1 TORX WRENCH (571057-01) 893 RON
61 1 1 COVER. SHOE (806485) 2795 RON
62 1 1 000000-00 - Indisponibil
63 1 1 000000-00 - Indisponibil
64 1 1 000000-00 - Indisponibil
65 1 1 SEAL (795694) 558 RON
66 1 1 ADAPTOR VACUUM (798010) 1229 RON
800 1 1 GREASE MOLYCOTE G68 100 GRAM TUBE (808386-00) 46863 RON
801 1 1 000000-00 - Indisponibil
