Top » Piese de schimb » PIESE BLACK & DECKER » BCNG01 Type 1

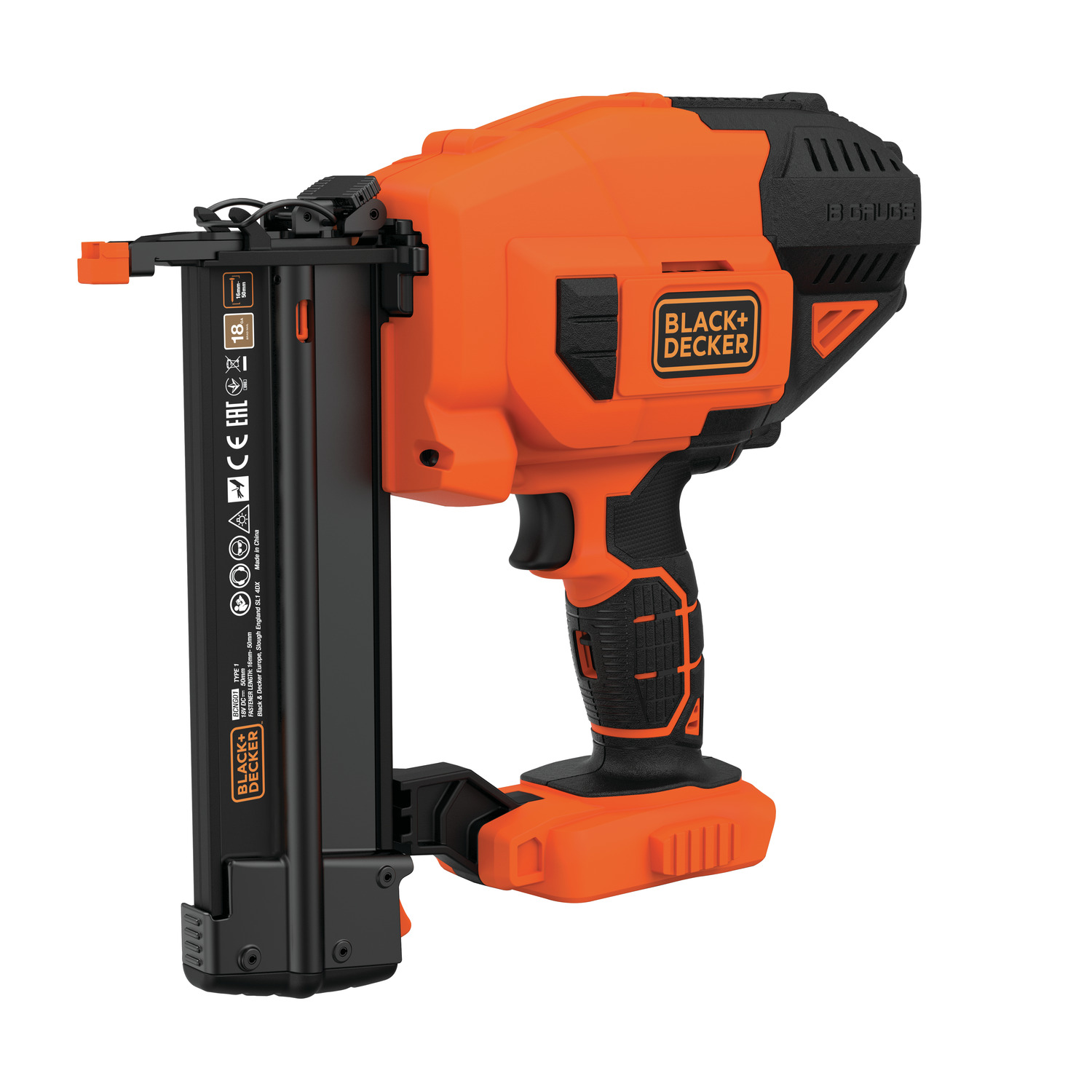

PISTOL DA BATUT CUIE BLACK+DECKER BCNG01 Type 1
[BCNG01 Type 1]
PISTOL DA BATUT CUIE BLACK+DECKER BCNG01 Type 1
Click pentru a mari
Imagini suplimentare
PISTOL DA BATUT CUIE BLACK+DECKER BCNG01 Type 1
Click pentru a mari
PISTOL DA BATUT CUIE BLACK+DECKER BCNG01 Type 1
Click pentru a mari

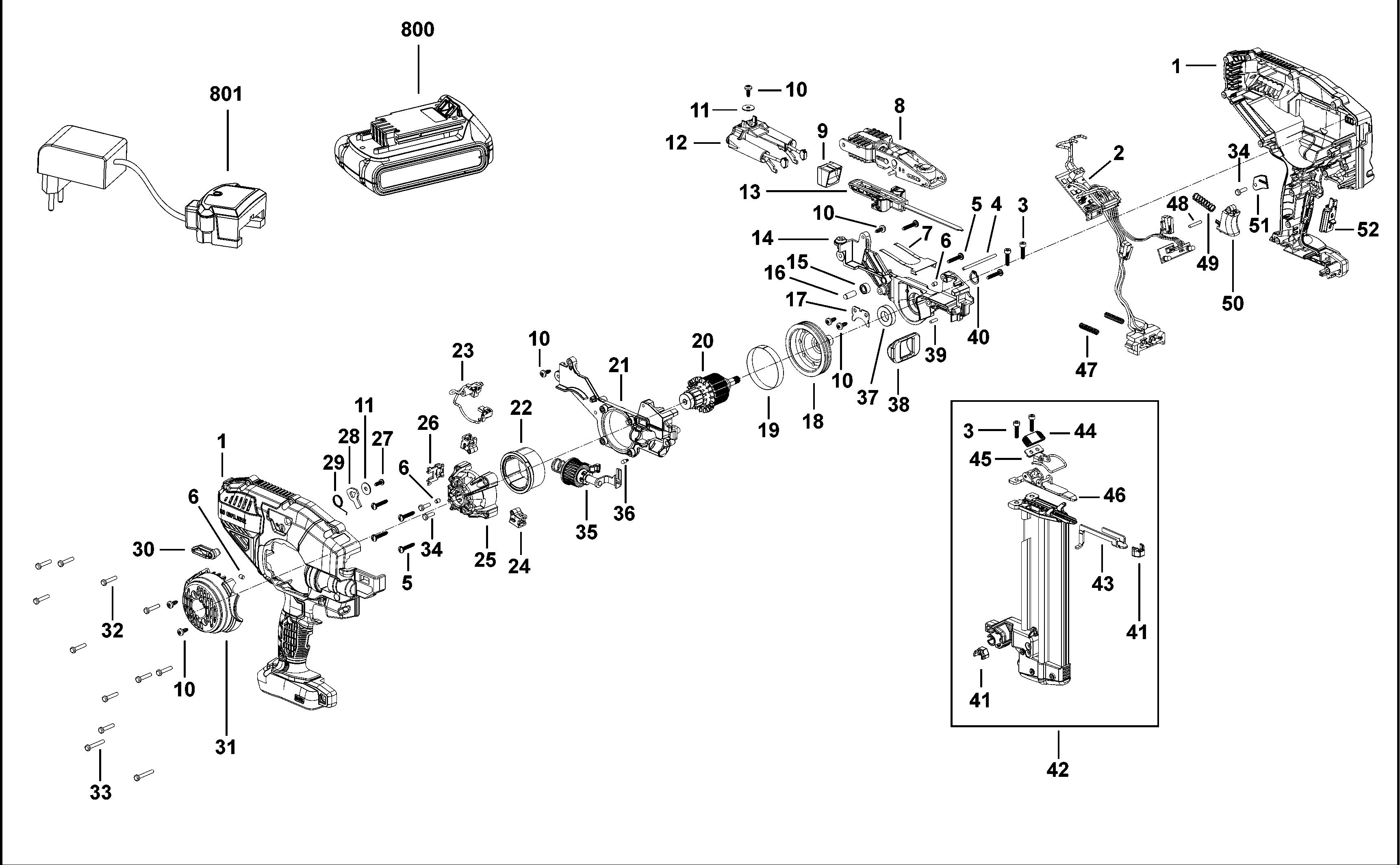

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL PAIR (N842982) 13697 RON
2 1 1 PCB SA (N850263) 46247 RON
3 1 2 SCREW (90614915) 588 RON
4 1 1 ROLLER SPINDLE (330041-61) 781 RON
5 1 7 SCREW (330045-07) 558 RON
6 1 3 PLUG (90621610) 588 RON
7 1 1 90615815 - Indisponibil
7 1 1 LEAF SPRING (NA608743) 944 RON
8 1 1 COVER-TOP (NA000883) 21676 RON
9 1 1 BUMPER (NA000884) 1318 RON
10 1 7 SCREW.TEMP (330045-05) 558 RON
11 1 2 WASHER (90621828) 588 RON
12 1 1 RETURN DEVICE ASSEMBLY (NA000880) 6688 RON
13 1 1 DRIVER (NA000881) 28836 RON
14 1 1 FRAME LH (90614654) 9012 RON
14 1 1 FRAME SA (NA000886) 9012 RON
15 1 1 SKID (90633321) 588 RON
16 1 1 PIN (N082403) 588 RON
17 1 1 PLATE (90622035) 588 RON
18 1 1 FLYWHEEL (90614719) 23244 RON
19 1 1 90635366 - Indisponibil
19 1 1 DAMPER (N927131) 588 RON
20 1 1 ARMATURE SA (N500628) 27287 RON
21 1 1 FRAME RH (N500107) 12361 RON
22 1 1 MAGNET (N503300) 12361 RON
23 1 1 TUBE SA (N748025) 5370 RON
24 1 2 BRUSHBOX (90624386) 668 RON
25 1 1 BRIDGE (90624621) 4827 RON
26 1 1 HOLDER (90621006) 588 RON
27 1 1 SCREW (582193-00) 558 RON
28 1 1 PIVOT (90629863) 588 RON
29 1 1 SPRING TORSION (90615568) 588 RON
30 1 1 LEVER (N854083) 588 RON
31 1 1 COVER HOUSING (90624433) 1318 RON
32 1 10 SCREW (90626630) 588 RON
33 1 2 SCREW (90626633) 588 RON
34 1 3 SCREW (330019-38) 558 RON
35 1 1 GUIDE (NA000882) 4827 RON
36 1 1 INDEXING BOLT (N403227) 588 RON
37 1 1 BEARING (90559833) 1318 RON
38 1 1 BUMPER (90641347) 2796 RON
39 1 1 PIN (588470-00) 588 RON
40 1 1 RING (90615722) 588 RON
41 1 2 PAD (N854079) 588 RON
42 1 1 MAGAZINE SA (N855950) 48037 RON
43 1 1 CONTACT (90615561) 2556 RON
44 1 1 GRIP LATCH CRAFTSMAN 20V 18GA MS3778 (N545103) 668 RON
45 1 1 PLATE (N854086) 944 RON
46 1 1 MAGAZINE INTERFACE (N544928) 3268 RON
47 1 2 SPRING (90516498) 558 RON
48 1 1 PIN (098185-20) 558 RON
49 1 1 SPRING (90551259) 558 RON
50 1 1 TRIGGER (90615767-01) 588 RON
51 1 1 HOUSING (N492341) 588 RON
52 1 1 TRIGGER (90620174-01) 944 RON
800 1 1 BATTERY 18V - 2.0AH - 36WH (N879820) 40734 RON
801 1 1 N517388 - Indisponibil
801 1 1 CHARGER SA (90634971) 23244 RON
