P7111 PLANER THICKNESSER Type 1
[P7111 Type 1]
P7111 PLANER THICKNESSER Type 1
Click pentru a mari
Imagini suplimentare
P7111 PLANER THICKNESSER Type 1
Click pentru a mari
P7111 PLANER THICKNESSER Type 1
Click pentru a mari
P7111 PLANER THICKNESSER Type 1
Click pentru a mari
P7111 PLANER THICKNESSER Type 1
Click pentru a mari
P7111 PLANER THICKNESSER Type 1
Click pentru a mari

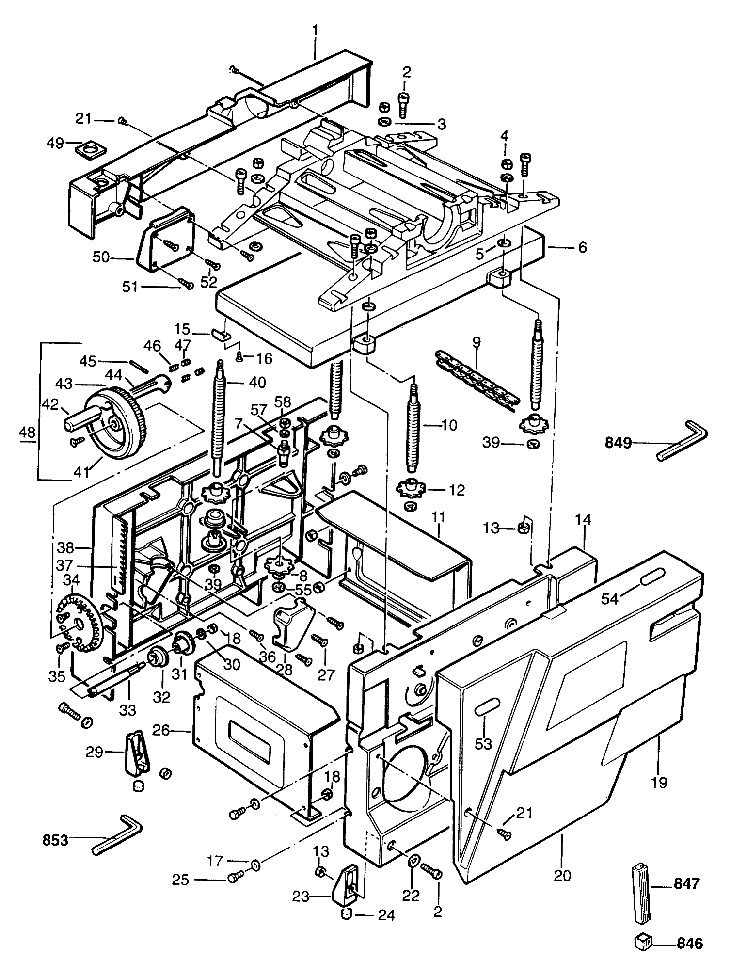

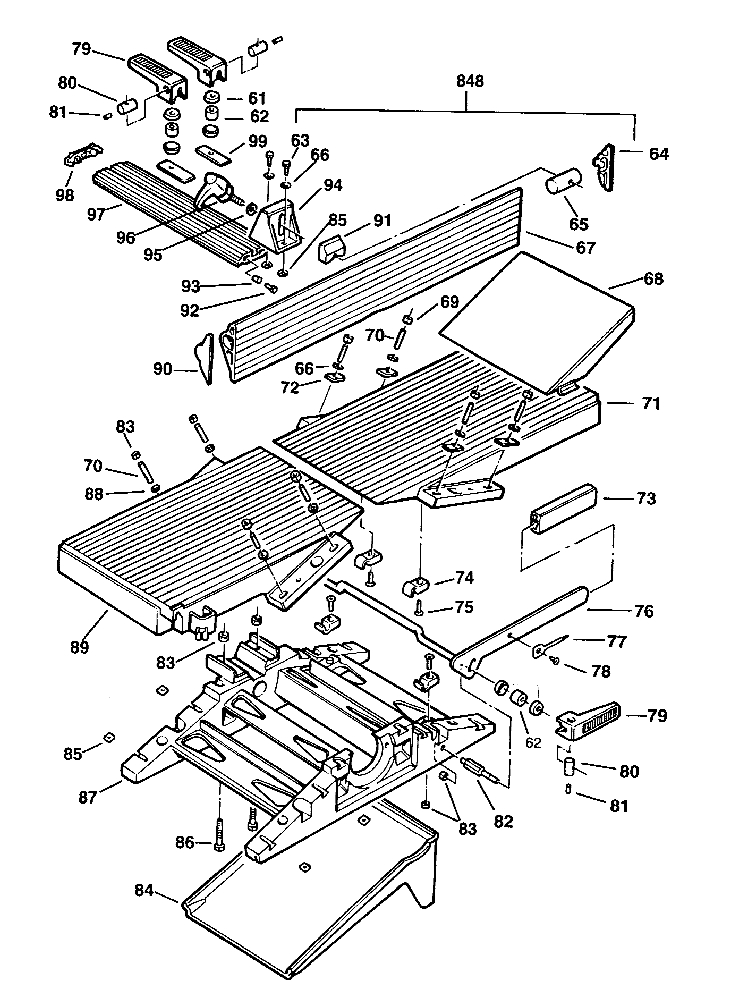

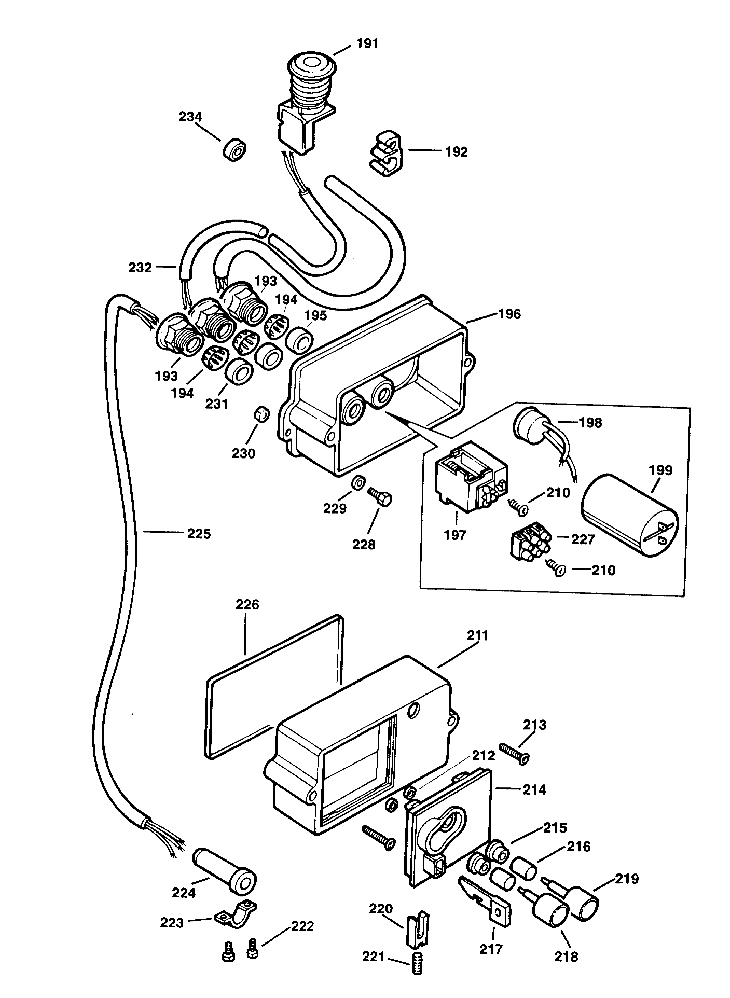

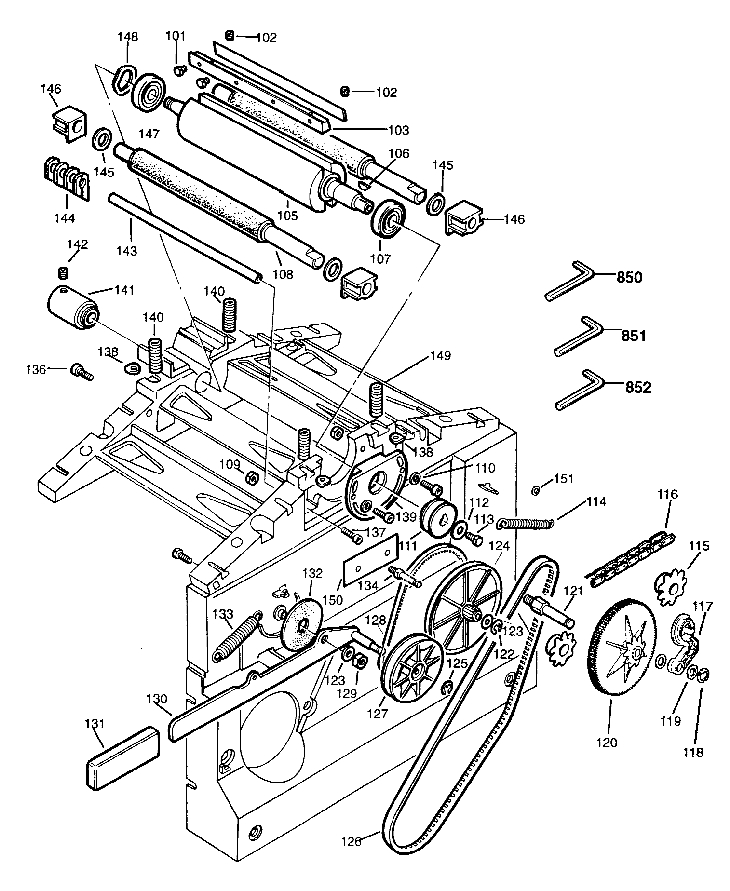

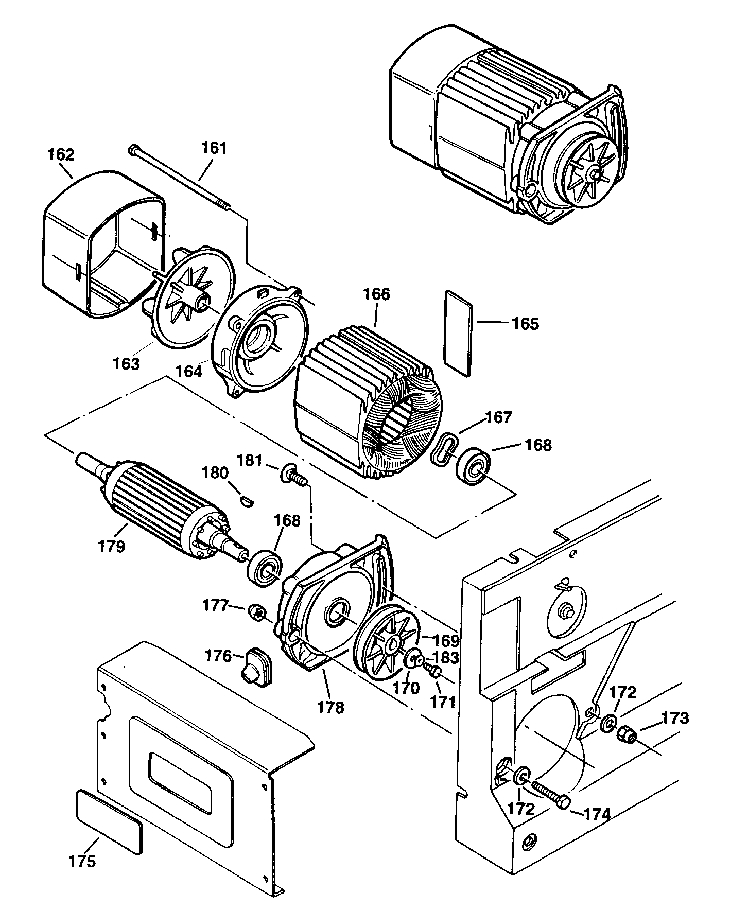

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 000000-00 - Indisponibil
2 1 8 SCREW SOCKET M.8X30 UNI 5931 (860093-00) 558 RON
3 1 4 000000-00 - Indisponibil
4 1 4 NUT ELAST.STOP M.8 UNI 7473 (860092-01) 558 RON
5 1 4 WASHER-THRUST 8X14X1.2 DIN988 (860076-04) 558 RON
6 1 1 000000-00 - Indisponibil
8 1 1 000000-00 - Indisponibil
9 1 1 000000-00 - Indisponibil
10 1 2 000000-00 - Indisponibil
11 1 1 000000-00 - Indisponibil
12 1 4 000000-00 - Indisponibil
13 1 8 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
14 1 1 000000-00 - Indisponibil
15 1 1 000000-00 - Indisponibil
16 1 1 SCREW PAN PH A M4X8 DIN 7516 (860238-04) 781 RON
17 1 5 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
18 1 6 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
19 1 1 000000-00 - Indisponibil
21 1 3 SCREW PAN PH/TT M.5X10UNI8112 (860094-06) 558 RON
22 1 4 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
23 1 4 BRACKET LH (860393-03) 2124 RON
24 1 4 BUMPER D.16X10 BLACK (860429-00) 893 RON
25 1 8 SCREW (860085-07) 558 RON
26 1 1 000000-00 - Indisponibil
27 1 4 SCREW PAN PH/TT M.5X16UNI8112 (860094-00) 558 RON
28 1 1 000000-00 - Indisponibil
29 1 4 000000-00 - Indisponibil
30 1 1 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
31 1 1 000000-00 - Indisponibil
32 1 1 000000-00 - Indisponibil
33 1 1 000000-00 - Indisponibil
35 1 2 000000-00 - Indisponibil
36 1 2 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
37 1 1 000000-00 - Indisponibil
40 1 2 000000-00 - Indisponibil
42 1 1 HANDLE ROTATING BLACK EPT1900 (860263-00) 1117 RON
43 1 1 000000-00 - Indisponibil
44 1 1 000000-00 - Indisponibil
45 1 1 000000-00 - Indisponibil
46 1 2 000000-00 - Indisponibil
49 1 1 000000-00 - Indisponibil
50 1 1 000000-00 - Indisponibil
51 1 4 SCREW CTSKPHAB 4.2X19UNI 6955 (860428-00) 558 RON
52 1 1 SCREW PAN.PHAB 4.2X13 UNI6954 (860084-10) 558 RON
53 1 1 000000-00 - Indisponibil
54 1 1 000000-00 - Indisponibil
55 1 1 RING SPRING SHAFT D10 UNI7435 (860079-02) 558 RON
57 1 1 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
58 1 1 NUT M6 (860083-12) 558 RON
61 1 6 CAP FOR SPRING D.16XD.6.2 (860365-00) 1452 RON
62 1 3 SPRING PUR 90SHORE D6XD.16X12 (860394-00) 4137 RON
63 1 2 SCREW (860085-07) 558 RON
64 1 1 CAP FOR EXTRUDED 860313 RH (860311-00) 781 RON
65 1 1 LOCATING PIN (860308-00) 2795 RON
66 1 6 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
67 1 1 000000-00 - Indisponibil
68 1 1 000000-00 - Indisponibil
69 1 4 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
70 1 8 000000-00 - Indisponibil
71 1 1 000000-00 - Indisponibil
72 1 4 000000-00 - Indisponibil
73 1 1 HANDLE(SLOT 3.5X26)BLACK (860367-00) 893 RON
74 1 4 000000-00 - Indisponibil
75 1 4 000000-00 - Indisponibil
77 1 1 000000-00 - Indisponibil
78 1 1 SCREW PAN PH A M5X10 DIN 7516 (860238-00) 781 RON
79 1 1 000000-00 - Indisponibil
80 1 3 000000-00 - Indisponibil
81 1 3 000000-00 - Indisponibil
82 1 1 000000-00 - Indisponibil
83 1 8 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
84 1 1 000000-00 - Indisponibil
85 1 6 NUT SQUARE MEAN M.6 UNI 5597 (860310-00) 105 RON
86 1 2 SCREW FIL.HD M6X45 UNI6107 ZN (860089-38) 558 RON
87 1 2 000000-00 - Indisponibil
88 1 4 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
90 1 1 CAP FOR EXTRUDED 860313 LH (860311-01) 781 RON
91 1 1 SPACER FOR PLANING FENCE (860305-00) 2347 RON
92 1 1 SCREW HEX M.5X16 UNI 5739 (860085-06) 558 RON
93 1 1 INSERT PSM N42 B M.5 (860309-00) 893 RON
94 1 1 BRACKET FOR PLANING FENCE (860306-00) 3466 RON
95 1 1 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
96 1 1 SCREW SOCKET M.8X40 UNI 5931 (860093-04) 781 RON
97 1 1 000000-00 - Indisponibil
98 1 1 CAP FOR EXTRUDED 860314 (860312-00) 2124 RON
99 1 2 GIB 18X55X3 DW1150-EPT1900 (860373-00) 893 RON
101 1 4 SCREW (949703-04) 558 RON
102 1 2 KNIFE ADJ. SCREW DW50-55 (863644-00) 2347 RON
105 1 1 000000-00 - Indisponibil
106 1 1 KEY WOODRUFF 4X5 UNI 6606 (860318-01) 781 RON
107 1 2 000000-00 - Indisponibil
108 1 2 000000-00 - Indisponibil
109 1 2 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
110 1 2 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
111 1 1 000000-00 - Indisponibil
112 1 1 WASHER FLAT SPEC.5.5X20X1.5 (860075-01) 558 RON
113 1 1 000000-00 - Indisponibil
115 1 2 SPROCKET (860282-03) 3018 RON
116 1 1 11876 - Indisponibil
117 1 1 CHAIN STRETCHER SPRUNG EPT-DW (860753-00) 2795 RON
118 1 1 RING SPRING SHAFT D10 UNI7435 (860079-02) 558 RON
119 1 2 WASHER FLAT 10 5X18 UNI 6592 (860073-06) 558 RON
120 1 1 000000-00 - Indisponibil
122 1 1 RING SPRING RADIAL D5 UNI7434 (860322-00) 558 RON
123 1 1 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
124 1 1 000000-00 - Indisponibil
125 1 1 000000-00 - Indisponibil
126 1 1 000000-00 - Indisponibil
127 1 1 000000-00 - Indisponibil
128 1 1 000000-00 - Indisponibil
129 1 1 NUT ELAST.STOP M.6 UNI 7473 (860092-02) 558 RON
130 1 1 000000-00 - Indisponibil
131 1 1 HANDLE(SLOT 3.5X26)BLACK (860367-00) 893 RON
132 1 1 000000-00 - Indisponibil
133 1 1 SPRING EXT.D.2XD.14X78 (860331-00) 781 RON
134 1 1 000000-00 - Indisponibil
136 1 1 SCREW HEX M.6X12 UNI5739 BLCK (860085-13) 558 RON
137 1 4 SCREW SOCKET M.6X20 UNI 5931 (860093-05) 558 RON
139 1 1 000000-00 - Indisponibil
140 1 4 000000-00 - Indisponibil
141 1 1 000000-00 - Indisponibil
142 1 1 SCREW SET M.8X8 UNI 5923 (860088-07) 558 RON
143 1 1 000000-00 - Indisponibil
144 1 35 000000-00 - Indisponibil
145 1 4 WASHER-SHIM 16X23.5X1 (860226-02) 558 RON
146 1 4 000000-00 - Indisponibil
147 1 2 BEARING (868768-01) 4472 RON
148 1 2 000000-00 - Indisponibil
149 1 2 000000-00 - Indisponibil
150 1 1 000000-00 - Indisponibil
151 1 1 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
161 1 4 ROD THREADED HEX M.5X145 (860446-00) 558 RON
162 1 1 COVER FAN MOTOR DW 250 (860445-00) 3466 RON
163 1 1 FAN MOTOR D.106XD.15 DW 250 (860444-00) 2347 RON
164 1 1 BELL REAR END MOTOR DW 250 (860443-00) 4472 RON
165 1 1 000000-00 - Indisponibil
166 1 1 000000-00 - Indisponibil
166 1 1 000000-00 - Indisponibil
166 1 1 000000-00 - Indisponibil
167 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
168 1 2 BEARING 6202 2RS HRB (861721-01) 2347 RON
170 1 1 WASHER FLAT SPEC.5.5X20X1.5 (860075-01) 558 RON
171 1 1 000000-00 - Indisponibil
172 1 2 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
173 1 1 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
174 1 1 000000-00 - Indisponibil
175 1 1 000000-00 - Indisponibil
176 1 1 BUSHING CABLE MOTOR DW 320 (860447-00) 4137 RON
177 1 1 NUT ELAST.STOP M.8 UNI 7473 (860092-01) 558 RON
178 1 1 000000-00 - Indisponibil
180 1 1 KEY WOODRUFF 4X5 UNI 6606 (860318-01) 781 RON
181 1 1 SCREW CUP SQUARE M8X25UNI5732 (860301-01) 781 RON
183 1 1 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
192 1 1 000000-00 - Indisponibil
193 1 3 CLAMP CABLE(NUT) PG 13.5 (860462-00) 1117 RON
194 1 3 CLAMP CABLE(CLAW) PG 13.5 (860463-00) 1788 RON
195 1 1 BUSHING CABLE D.12.5 (860452-01) 781 RON
196 1 1 BOX SWITCH(BOTTOM) 151X85 (860459-00) 7940 RON
197 1 1 000000-00 - Indisponibil
197 1 1 000000-00 - Indisponibil
197 1 1 000000-00 - Indisponibil
198 1 1 000000-00 - Indisponibil
198 1 1 000000-00 - Indisponibil
198 1 1 000000-00 - Indisponibil
199 1 1 000000-00 - Indisponibil
199 1 1 000000-00 - Indisponibil
199 1 1 CAPACITOR 25MF 400V D.40X71 (860471-02) 9282 RON
210 1 2 SCREW PAN.PHAB 2.9X16 UNI6954 (860084-08) 558 RON
211 1 1 BOX SWITCH(COVER) 151X85 (860460-00) 5591 RON
212 1 2 RING SPRING S.LOCK D.4 (860077-01) 558 RON
213 1 2 SCREW PAN.PHAB 4.2X32 UNI6954 (860084-07) 558 RON
214 1 1 TASSELLO PORTAPULS.IMP.UNIF (860461-01) 4472 RON
215 1 2 GASKET D.5 FOR BUTTON (860466-00) 558 RON
216 1 2 SPRING PUSHER D.11.3XD.0.8X16 (860112-05) 1788 RON
217 1 1 000000-00 - Indisponibil
218 1 1 BUTTON GREEN D.21 (860465-00) 558 RON
219 1 1 BUTTON RED D.21 (860464-00) 558 RON
220 1 1 LOCK BUTTON(SLIDE)SWITCH BOX (860469-00) 190 RON
221 1 1 SPRING PUSHER D.6XD.0.5X14 (860112-06) 1788 RON
222 1 2 SCREW PAN.PHAB 4.2X9.5UNI6954 (860084-03) 558 RON
223 1 1 CONNETTORE CORNER OK 67904 (860540-00) 781 RON
225 1 1 CABLE LINE MT3 3X1+PLUG CEE 7 (860472-00) 12861 RON
226 1 1 BOX GASKET (863122-01) 2347 RON
227 1 1 CONNECTOR BOX 3 POLES 4 SQMM (860468-00) 190 RON
228 1 2 SCREW HEX M.5X16 UNI 5739 (860085-06) 558 RON
229 1 2 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
230 1 2 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
231 1 2 BUSHING CABLE D.9.5 (860452-00) 781 RON
232 1 1 000000-00 - Indisponibil
234 1 1 BUSHING CABLE D7 D12 D16-3-9 (860695-00) 1117 RON
241 1 1 PROTECTION DW1160 (865909-00) 5591 RON
242 1 1 000000-00 - Indisponibil
243 1 1 CONNECTION (944880-00) 4472 RON
244 1 1 LOCKING LEVER M8 1712USA (863320-00) 1229 RON
245 1 2 000000-00 - Indisponibil
246 1 3 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
247 1 2 000000-00 - Indisponibil
248 1 1 PIVOT (944881-00) 3466 RON
249 1 2 SCREW SOCKET M.5X25 UNI 5931 (860093-08) 558 RON
250 1 2 NUT M5 (860092-03) 558 RON
251 1 1 EPT BLOCK CE (944877-01) 10512 RON
252 1 1 000000-00 - Indisponibil
254 1 1 CAP FOR LOCKING LEVER (863073-00) 781 RON
255 1 1 SPRING (760483-00) 558 RON
256 1 2 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
257 1 2 SCREW 6X55 UNI5732 (860301-14) 558 RON
259 1 1 WING KNOB+SCREW M6X50 (863310-00) 1117 RON
260 1 1 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
846 1 4 FOOT 30X30 STAND BLACK EPT-DW (860392-00) 1117 RON
847 1 4 LEG 30X30X477 BLACK EPT1900DW (860387-00) 5591 RON
848 1 1 000000-00 - Indisponibil
849 1 1 WRENCH (949882-01) 781 RON
850 1 1 WRENCH HEX 6 UNI 6753 (860098-04) 781 RON
851 1 1 000000-00 - Indisponibil
852 1 1 WRENCH HEX 3 UNI 6753 (938539-00) 781 RON
853 1 1 WRENCH HEX 2.5 UNI 6753 (943271-00) 558 RON
854 1 1 000000-00 - Indisponibil
876 1 1 000000-00 - Indisponibil
