Top » Piese de schimb » PIESE BLACK & DECKER » P5723 Type 1

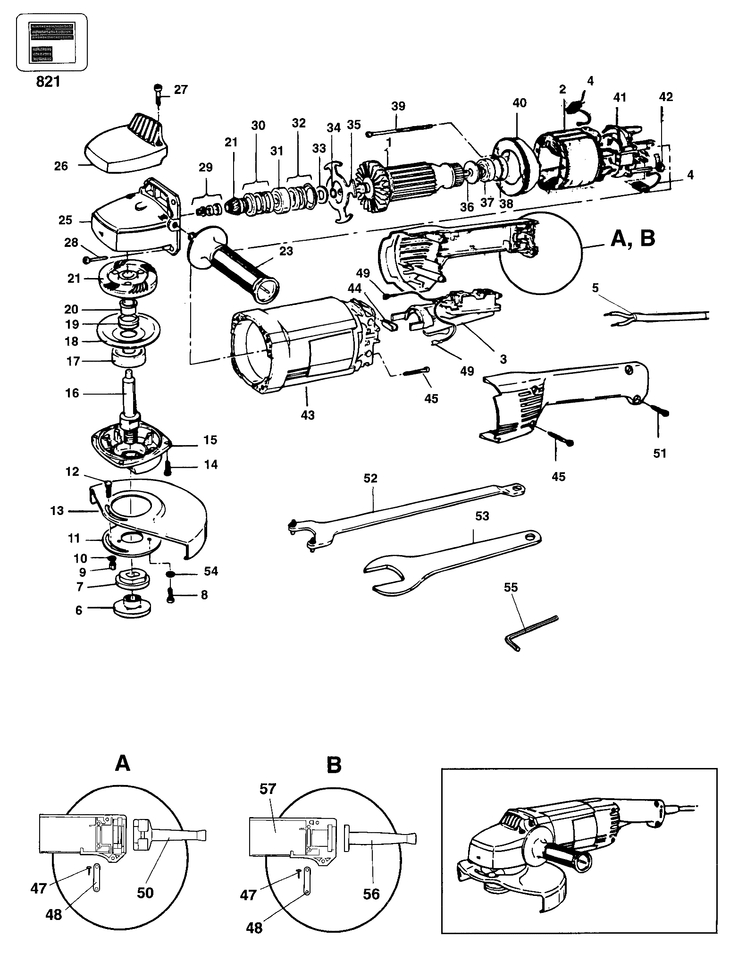

P5723 ANGLE GRINDER Type 1
[P5723 Type 1]
P5723 ANGLE GRINDER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 000000-00 - Indisponibil
1 1 1 000000-00 - Indisponibil
2 1 1 STATOR DW882 (868531-00) 129966 RON
2 1 1 DW882/383 STATOR (868531-02) 57488 RON
3 1 1 SWITCH LOCK-ON BLACK (949825-04) 32770 RON
3 1 1 000000-00 - Indisponibil
4 1 2 BRUSH CUT OFF (940160-00) 9282 RON
4 1 2 BRUSH 115-230V SA (940160-01) 4472 RON
5 1 1 000000-00 - Indisponibil
5 1 1 4688531 - Indisponibil
6 1 1 COLLAR SA FLANGE (931771) Indisponibil Indisponibil
7 1 1 FLANGE INNER (930927) 3018 RON
8 1 3 SCREW (933058-00) 558 RON
9 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
10 1 1 WASHER (930925) 781 RON
11 1 1 FLANGE (930929) 1452 RON
12 1 1 SCREW (949892-07) 781 RON
13 1 1 SA WHEEL GUARD (932525-02) 7940 RON
13 1 1 "SA WHEEL GUARD 9""" (931942-02) 9282 RON
14 1 4 SCREW M6 (949887-01) 558 RON
15 1 1 COVER GEARCASE M/C (947962-00) 3466 RON
16 1 1 SPINDLE M14 PACKED (578243-00) 10512 RON
17 1 1 BEARING (930566) 3466 RON
18 1 1 FLANGE (930924) 1229 RON
19 1 1 RING RETAINING (930923) 893 RON
20 1 1 SPACER (930922) 105 RON
21 1 1 SA GEAR & PINION ( SERVICE ) (932522) 32770 RON
21 1 1 SA GEAR AND PINION ( SERVICE ) (932576) 34336 RON
23 1 1 SIDE HANDLE (939815) 2795 RON
25 1 1 000000-00 - Indisponibil
26 1 1 000000-00 - Indisponibil
27 1 2 000000-00 - Indisponibil
28 1 4 SCREW SELF DRIVE (930930) 558 RON
29 1 1 MOUNT ASSEMBLY ( SERVICE ) (937098-49) 1229 RON
30 1 1 SA RETAINER (930909) 3018 RON
32 1 1 SEAL SA (931067-00) 190 RON
33 1 1 SPACER (931062-00) 1117 RON
34 1 1 O-RING (930028-00) 558 RON
35 1 1 FLANGE (931066-00) 2795 RON
36 1 1 SPACER (A3EG6) (N174055) 558 RON
37 1 1 BEARING BALL cod vechi: 330003-36 BEARING 6000 T1XDDW (577745-00) 3018 RON
38 1 1 SLEEVE (938332-00) 558 RON
39 1 2 N412453 - Indisponibil
40 1 1 BAFFLE (931073-00) 1452 RON
41 1 1 000000-00 - Indisponibil
41 1 1 SA BRUSH HOLDER (935745) 11519 RON
42 1 2 SPRING (931076-00) 558 RON
43 1 1 HOUSING P77-01 (948134-09) 22144 RON
44 1 4 SHOCK ABSORBER (930934-00) 558 RON
45 1 4 SCREW (931297-00) 893 RON
47 1 2 SCREW (931469-02) 558 RON
48 1 1 CORD CLAMP (931477-00) 781 RON
50 1 1 CORD PROTECTOR (930981-00) 893 RON
51 1 2 SCREW (930284-01) 558 RON
52 1 1 SA LAG WRENCH (938733) 2347 RON
55 1 1 KEY ALLEN 4MM A/F HEX * 70MM LONG (807043) 558 RON
56 1 1 "PROTECTOR CORD 11 6""" (947964-01) 190 RON
821 1 1 RATING PLATE (569036-00) 893 RON
