Top » Piese de schimb » PIESE BLACK & DECKER » P3302 Type 1

P3302 SITE SAW Type 1
[P3302 Type 1]
P3302 SITE SAW Type 1
Click pentru a mari
Imagini suplimentare
P3302 SITE SAW Type 1
Click pentru a mari
P3302 SITE SAW Type 1
Click pentru a mari

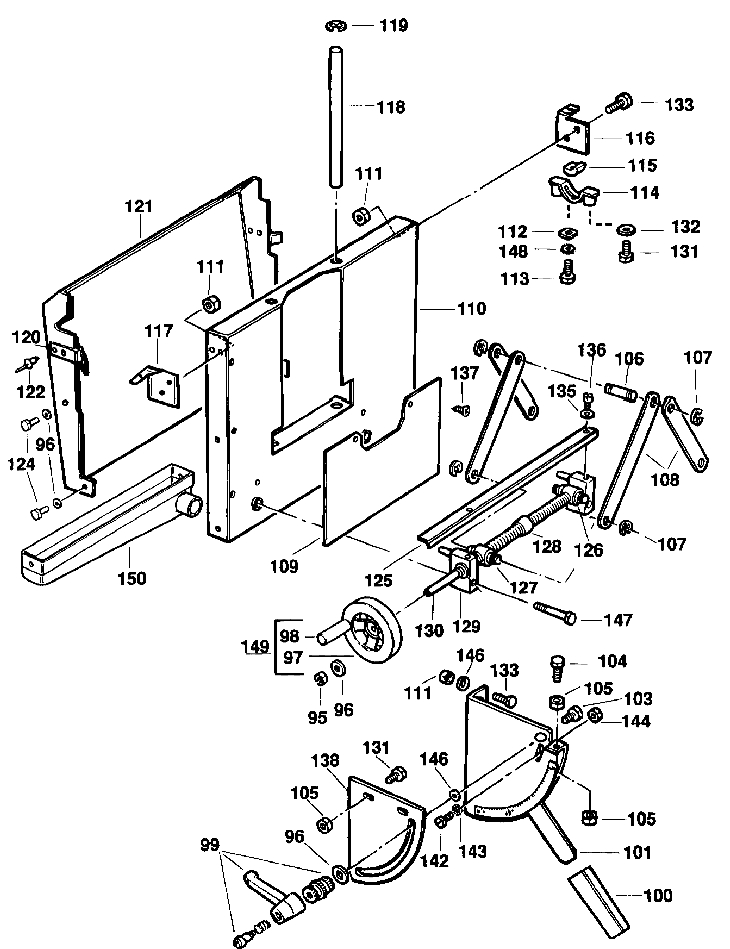

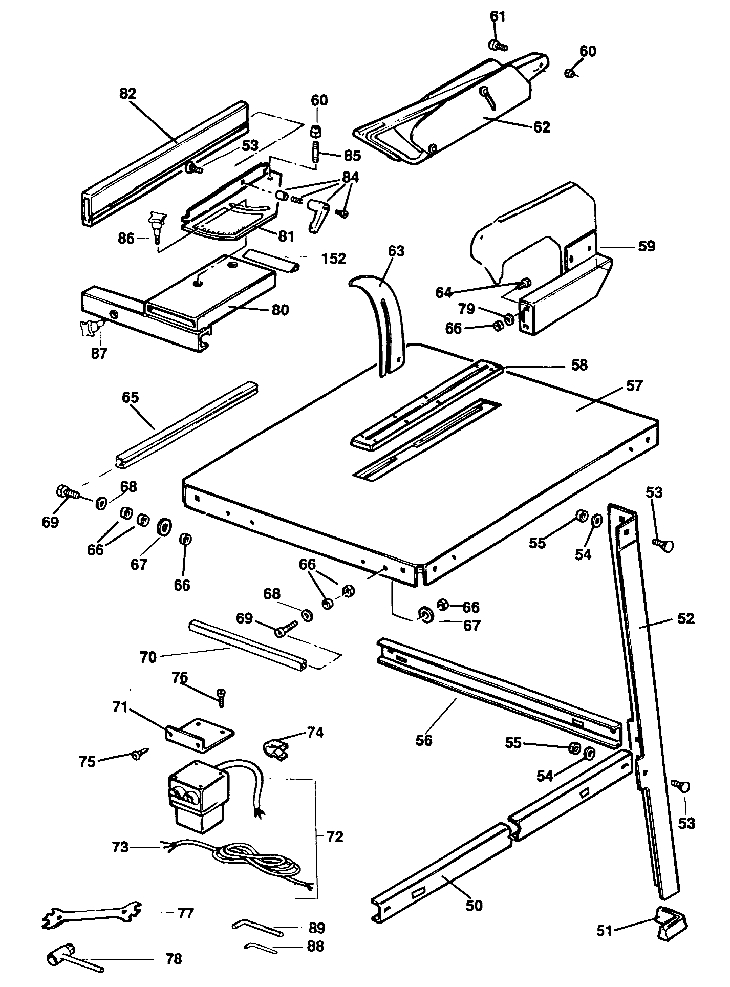

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ROTOR D.62 SITE SAW (868496-00) 59725 RON
1 1 1 ROTOR D.62 SITE SAW (868496-00) 59725 RON
1 1 1 ROTOR D.62 SITE SAW (868496-00) 59725 RON
1 1 1 ROTOR D.62 SITE SAW (868496-00) 59725 RON
1 1 1 000000-00 - Indisponibil
2 1 1 000000-00 - Indisponibil
2 1 1 000000-00 - Indisponibil
2 1 1 000000-00 - Indisponibil
2 1 1 000000-00 - Indisponibil
2 1 1 000000-00 - Indisponibil
3 1 1 NUT HEX THICK M.10 UNI 5587 (860083-05) 558 RON
4 1 1 WASHER SPRING CON.10.2X22X1.2 (860074-04) 558 RON
5 1 1 KNIFE PLATE (944360-00) 2347 RON
6 1 1 PLATE (944359-00) 3018 RON
7 1 1 SUPPORT HOUSING (944354-00) 51337 RON
8 1 1 SQUARE HEAD BUTTON SCREW M (860301-15) 781 RON
9 1 1 BEARING BALL ISO 6204-2RSL (868768-10) 6821 RON
10 1 1 SEEGER RING D.50 (860806-01) 1452 RON
11 1 1 SPACER BUSH (942490-00) 2124 RON
12 1 2 GASKET FOR MOTOR BELL DW1150 (860718-00) 3018 RON
13 1 1 KEY WOODRUFF 5X6.5 UNI 6606 (860318-00) 893 RON
14 1 1 BEARING 6202 2RS HRB (861721-01) 2347 RON
15 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
16 1 1 BELL REAR END MTR DW125 CAST (860701-00) 12861 RON
17 1 1 FAN (945841-00) 2347 RON
19 1 1 MOTOR GUARD 315 CE (860687-04) 3466 RON
20 1 2 SCREW PAN PH/TT M.4X16UNI8112 (860094-01) 558 RON
21 1 4 ROD THREADED HEX M.5X145 (860446-00) 558 RON
23 1 1 GASKET EARTH SCREW (944653-00) 190 RON
24 1 1 "CLAMP CABLE(NUT)G.3/8 HOLE 12""" (944654-00) 1229 RON
25 1 1 BUSHING CABLE D.10XD.14X5 (944590-00) 781 RON
26 1 1 GASKET FOR CABLE DW 1150 (944652-00) 5591 RON
27 1 1 SCREW PAN PH/TT M.5X16UNI8112 (860094-00) 558 RON
28 1 1 CLAMP WIRE ZINC PLATED (944650-00) 558 RON
29 1 1 SCREW PAN PH/TT M.4X16UNI8112 (860094-01) 558 RON
30 1 1 CONNETTORE CORNER OK 67904 (860540-00) 781 RON
30 1 1 CONNETTORE CORNER OK 67904 (860540-00) 781 RON
30 1 1 CONNETTORE CORNER OK 67904 (860540-00) 781 RON
30 1 1 CONNETTORE CORNER OK 67904 (860540-00) 781 RON
30 1 1 CONNECTION PLATE FOR POWER-SHO (946085-00) 4137 RON
31 1 1 GASKET MOTOR BOX DW 125 (860708-00) 2124 RON
31 1 1 GASKET MOTOR BOX DW 125 (860708-00) 2124 RON
31 1 1 GASKET MOTOR BOX DW 125 (860708-00) 2124 RON
31 1 1 GASKET MOTOR BOX DW 125 (860708-00) 2124 RON
31 1 1 GASKET MOTOR BOX DW 125 (860708-00) 2124 RON
31 1 1 GASKET MOTOR BOX DW 125 (860708-00) 2124 RON
31 1 1 GASKET MOTOR BOX DW 125 (860708-00) 2124 RON
31 1 1 GASKET MOTOR BOX DW 125 (860708-00) 2124 RON
31 1 1 GASKET MOTOR BOX DW 125 (860708-00) 2124 RON
31 1 1 GASKET MOTOR BOX DW 125 (860708-00) 2124 RON
32 1 1 CAPACITOR 30 MF-V.450 (944455-00) 9282 RON
32 1 1 CAPACITOR 30 MF-V.450 (944455-00) 9282 RON
32 1 1 CAPACITOR 30 MF-V.450 (944455-00) 9282 RON
32 1 1 CAPACITOR 35MF V.450 (944455-01) 10512 RON
33 1 1 BOX MOTOR DW1150 1PH MACHINED (860702-00) 7940 RON
33 1 1 BOX MOTOR DW1150 1PH MACHINED (860702-00) 7940 RON
33 1 1 BOX MOTOR DW1150 1PH MACHINED (860702-00) 7940 RON
33 1 1 BOX MOTOR DW1150 1PH MACHINED (860702-00) 7940 RON
33 1 1 000000-00 - Indisponibil
34 1 2 RIVET THREAD.2.5X5 UNI 7346 (860060-01) 558 RON
35 1 1 000000-00 - Indisponibil
35 1 1 000000-00 - Indisponibil
35 1 1 000000-00 - Indisponibil
35 1 1 000000-00 - Indisponibil
35 1 1 000000-00 - Indisponibil
36 1 1 000000-00 - Indisponibil
36 1 1 MOTOR BOX COVER (944454-00) 4137 RON
36 1 1 MOTOR BOX COVER (944454-00) 4137 RON
36 1 1 MOTOR BOX COVER (944454-00) 4137 RON
36 1 1 MOTOR BOX COVER (944454-00) 4137 RON
37 1 4 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
38 1 1 GASKET FOR OVERLOAD THRM (860133-00) 1788 RON
39 1 1 OVERLOAD THRM CET 50-DA 3025 (860692-00) 59725 RON
39 1 1 OVERLOAD THRM CET 50-DA 3025 (860692-00) 59725 RON
39 1 1 OVERLOAD THRM CET 50-DA 3025 (860692-00) 59725 RON
39 1 1 000000-00 - Indisponibil
42 1 1 INNER FLANGE (945842-00) 12861 RON
43 1 1 OUTER FLANGE (945843-00) 2347 RON
44 1 1 ARBOR NUT 1370-DW12-MC20 (944460-00) 10512 RON
50 1 2 000000-00 - Indisponibil
50 1 2 000000-00 - Indisponibil
50 1 2 000000-00 - Indisponibil
50 1 2 000000-00 - Indisponibil
50 1 2 000000-00 - Indisponibil
51 1 4 RUBBER FOOT (862419-00) 2795 RON
52 1 1 SITE SAW LEG (944335-00) 10512 RON
52 1 1 SITE SAW LEG (944335-00) 10512 RON
53 1 16 SQUARE HEAD BUTTN SCREW (860301-16) 558 RON
54 1 16 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
55 1 16 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
56 1 2 000000-00 - Indisponibil
56 1 2 HALTERUNG KURZ DW740 (944336-00) 14315 RON
56 1 2 HALTERUNG KURZ DW740 (944336-00) 14315 RON
56 1 2 HALTERUNG KURZ DW740 (944336-00) 14315 RON
56 1 2 HALTERUNG KURZ DW740 (944336-00) 14315 RON
57 1 1 000000-00 - Indisponibil
58 1 1 BLADE INLET ETS BLACK (944373-01) 15993 RON
58 1 1 BLADE INLET ETS BLACK (944373-01) 15993 RON
58 1 1 BLADE INLET ETS BLACK (944373-01) 15993 RON
58 1 1 BLADE INLET ETS BLACK (944373-01) 15993 RON
58 1 1 BLADE INLET ETS BLACK (944373-01) 15993 RON
59 1 1 KNIFE DW315 (945852-00) 22144 RON
59 1 1 KNIFE DW315 (945852-00) 22144 RON
59 1 1 KNIFE DW315 (945852-00) 22144 RON
59 1 1 KNIFE DW315 (945852-00) 22144 RON
59 1 1 KNIFE DW315 (945852-00) 22144 RON
60 1 2 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
61 1 1 SOCKET HEAD SCREW (860093-20) 558 RON
62 1 1 S.A.BLADE PROTECTION DW315 (945853-00) 5484 RON
62 1 1 S.A.BLADE PROTECTION DW315 (945853-00) 5484 RON
62 1 1 S.A.BLADE PROTECTION DW315 (945853-00) 5484 RON
62 1 1 S.A.BLADE PROTECTION DW315 (945853-00) 5484 RON
63 1 1 RIVING KNIFE (944365-00) 12861 RON
63 1 1 RIVING KNIFE (944365-00) 12861 RON
63 1 1 RIVING KNIFE (944365-00) 12861 RON
63 1 1 RIVING KNIFE (944365-00) 12861 RON
63 1 1 RIVING KNIFE (944365-00) 12861 RON
64 1 2 SCREW HEX M.8X20 UNI 5739 (860085-03) 558 RON
64 1 2 SCREW HEX M.8X20 UNI 5739 (860085-03) 558 RON
64 1 2 SCREW HEX M.8X20 UNI 5739 (860085-03) 558 RON
64 1 2 SCREW HEX M.8X20 UNI 5739 (860085-03) 558 RON
64 1 2 SCREW HEX M.8X20 UNI 5739 (860085-03) 558 RON
65 1 1 GUIDE RAIL (944445-00) 10512 RON
66 1 2 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
66 1 2 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
66 1 2 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
66 1 2 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
66 1 2 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
67 1 4 WASHER D.8 4X24X2 (941602-00) 558 RON
68 1 4 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
69 1 4 SCREW SOCKET M.8X35 UNI 5931 (860093-18) 781 RON
70 1 1 GUIDE RAIL (944445-01) 6821 RON
71 1 1 TELESWITCH SQUARE (946023-00) 7940 RON
71 1 1 SW.PLATE (944341-00) 2795 RON
71 1 1 SW.PLATE (944341-00) 2795 RON
71 1 1 SW.PLATE (944341-00) 2795 RON
71 1 1 SW.PLATE (944341-00) 2795 RON
72 1 1 000000-00 - Indisponibil
72 1 1 000000-00 - Indisponibil
72 1 1 000000-00 - Indisponibil
72 1 1 000000-00 - Indisponibil
72 1 1 000000-00 - Indisponibil
73 1 1 000000-00 - Indisponibil
73 1 1 000000-00 - Indisponibil
73 1 1 000000-00 - Indisponibil
73 1 1 000000-00 - Indisponibil
73 1 1 000000-00 - Indisponibil
74 1 4 CLIP (945848-00) 781 RON
75 1 2 SELF TAPPING SCREW 4 (860084-21) 558 RON
76 1 4 SELF TAPPING SCREW 4 2X16 (930076-00) 558 RON
77 1 1 SPANNER (944463-00) 5591 RON
78 1 1 TUBE WRENCH 10 (760601-00) 2347 RON
79 1 2 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
79 1 2 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
79 1 2 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
79 1 2 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
79 1 2 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
80 1 1 000000-00 - Indisponibil
81 1 1 MITRE PLATE (944415-00) 6821 RON
82 1 1 000000-00 - Indisponibil
84 1 1 LEVER (861840-01) 3018 RON
85 1 1 SCREW M6X21 (860661-07) 1117 RON
86 1 1 000000-00 - Indisponibil
87 1 1 4 LOBES KNOB (942787-01) 893 RON
88 1 1 WRENCH HEX 5 UNI 6753 (930574-00) 781 RON
89 1 1 WRENCH HEX 8 UNI 6753 (860098-05) 190 RON
95 1 1 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
96 1 5 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
97 1 1 000000-00 - Indisponibil
98 1 1 000000-00 - Indisponibil
99 1 1 LEVER (861840-00) 3466 RON
100 1 1 HANDLE(SLOT 3.5X26)BLACK (860367-00) 893 RON
101 1 1 ADJ.HANDLE (944375-00) 6821 RON
103 1 1 SQUARE HEAD BUTTN SCREW (860301-16) 558 RON
104 1 1 SCREW HEX M.6X25 UNI 5739 (860085-10) 558 RON
105 1 3 NUT HEX THIN M.6 UNI5589 ZINC (860083-13) 558 RON
106 1 1 PIN (945844-00) 1788 RON
107 1 6 RING RADIAL SPRING D8 UNI7434 (860322-01) 558 RON
108 1 4 LINK ARM (944368-00) 105 RON
109 1 1 SWINGING PROTECT BLADE 315 (944322-02) 5031 RON
110 1 1 000000-00 - Indisponibil
111 1 4 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
112 1 2 PLASTIC SPACER (944338-00) 781 RON
113 1 2 SCREW FLAT FILL.HD.M6X20 UNI61 (941518-00) 558 RON
114 1 2 SLIDE+DISTANCIAL (944333-00) 3466 RON
115 1 2 WEDGE (944343-00) 781 RON
116 1 1 BRACKET RH. (944344-00) 2795 RON
117 1 1 BRACKET L.H. (944344-01) 2795 RON
118 1 2 GUIDE COLUMN (944353-00) 6821 RON
119 1 2 CIRCLIP (860322-05) 558 RON
120 1 2 SPRING (944352-00) 190 RON
121 1 1 BLADE HSG COVER (944351-00) 51337 RON
122 1 4 RIVET BRIV 3 2X5 97X6 47 (945845-00) 558 RON
124 1 1 SCREW (860085-07) 558 RON
125 1 1 PROT.LABEL (944437-00) 2347 RON
126 1 1 REAR PIVOT (944366-00) 3466 RON
127 1 1 BUSH (944366-01) 3466 RON
128 1 1 SPACER (945846-00) 893 RON
129 1 2 SKIN (861657-03) 5031 RON
130 1 1 ELEVATING SCREW (944367-01) 12861 RON
130 1 1 ELEVATING SCREW (944367-01) 12861 RON
130 1 1 ELEVATING SCREW (944367-01) 12861 RON
130 1 1 ELEVATING SCREW (944367-01) 12861 RON
131 1 5 HEXAGONAL HEAD SCREW (860085-15) 558 RON
132 1 4 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
133 1 4 SCREW HEX M.8X16 UNI 5739 (860085-04) 558 RON
135 1 2 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
136 1 2 SCREW (860089-22) 558 RON
137 1 2 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
138 1 1 TILT PLATE (944374-00) 3466 RON
142 1 1 SCREW (760992-00) 558 RON
143 1 1 WASHER (725163) 558 RON
144 1 1 NUT HEX THICK M.4 UNI 5587 (860083-01) 558 RON
146 1 2 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
147 1 2 SCREW HEX M.8X45 UNI 5737 (860086-09) 781 RON
148 1 2 TOOTHED WASHER DW320 (933055-00) 558 RON
149 1 1 HANDLE SA (946474-00) 4472 RON
149 1 1 000000-00 - Indisponibil
150 1 1 000000-00 - Indisponibil
152 1 1 SLEEVE (946473-00) 1117 RON
