Top » Piese de schimb » PIESE BLACK & DECKER » 3157-28 Type 100

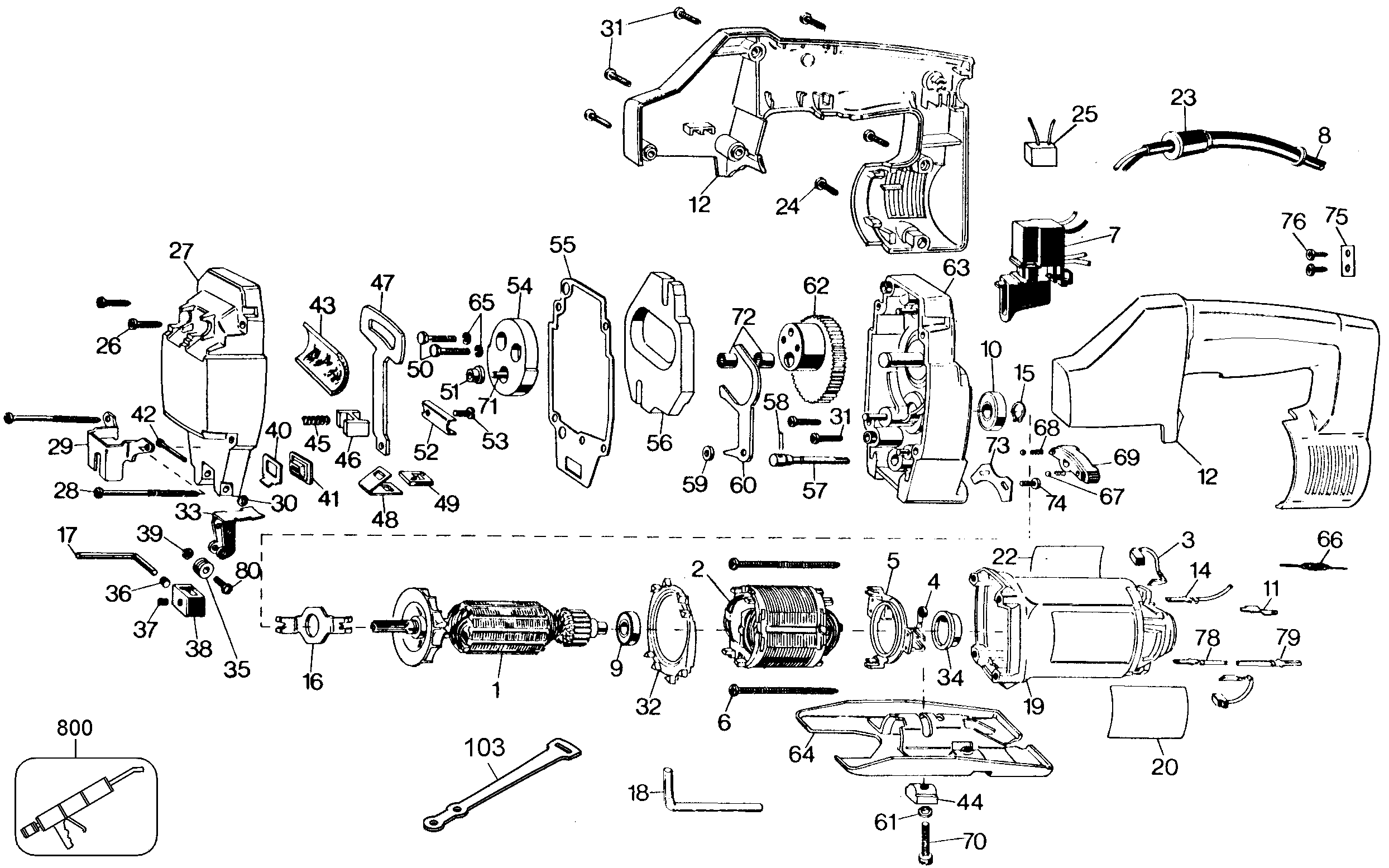

VS HD ORB JIG SAW (P4401) BLACK+DECKER 3157-28 Type 100
[3157-28 Type 100]
VS HD ORB JIG SAW (P4401) BLACK+DECKER 3157-28 Type 100
Click pentru a mari
Imagini suplimentare
VS HD ORB JIG SAW (P4401) BLACK+DECKER 3157-28 Type 100
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR SA 230V (5140006-41) 3592 RON
1 1 1 ARMATURE (447844-04) 28296 RON
2 1 1 FIELD (448816-75) 11519 RON
2 1 1 MOTOR SA 230V (5140006-41) 3592 RON
3 1 2 51658-00 - Indisponibil
3 1 2 445861-04 - Indisponibil
4 1 2 SPRING BRUSH (445860-00) 558 RON
5 1 1 RING (449899-05) 190 RON
6 1 2 SCREW (445880-00) 558 RON
7 1 1 147147-00 - Indisponibil
8 1 1 444235-13 - Indisponibil
9 1 1 330003-04 - Indisponibil
9 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
10 1 1 BALL BEARING (330003-08) 3018 RON
10 1 1 BEARING BALL (605040-15) 2347 RON
11 1 2 445881-99 - Indisponibil
12 1 1 449474-03 - Indisponibil
14 1 2 TERMINAL (449192-00) 558 RON
15 1 1 RETAINING RING (444793-00) 558 RON
16 1 1 445874-00 - Indisponibil
17 1 1 99056-04 - Indisponibil
17 1 1 099056-04 - Indisponibil
18 1 1 98000-11 - Indisponibil
18 1 1 HEX KEY 5MM ocd vechi 98000-11 (098000-11) 781 RON
19 1 1 445857-00 - Indisponibil
20 1 1 450099-00 - Indisponibil
23 1 1 N542553 - Indisponibil
23 1 1 PROTECTOR CORD (330005-01) 105 RON
23 1 1 CORD PROTECTOR (N918736) 668 RON
24 1 1 SCREW (86964-00) 558 RON
24 1 1 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
25 1 1 464210-00 - Indisponibil
26 1 2 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
27 1 1 133775-03 - Indisponibil
28 1 2 SCREW (330019-27) 588 RON
30 1 1 CIRCLIPS (133825-00) 558 RON
31 1 7 SELF TAP SCREW (87184-00) 558 RON
31 1 7 SCREW (330019-14) 558 RON
32 1 1 BAFFLE (445876-00) 781 RON
34 1 1 SLEEVE (445217-02) 781 RON
35 1 1 145073-07 - Indisponibil
35 1 1 608389-00 - Indisponibil
36 1 1 SCREW (445405-00) 558 RON
37 1 1 SCREW (98139-05) 558 RON
37 1 1 SCREW (330022-16) 558 RON
38 1 1 444520-00 - Indisponibil
39 1 1 NUT (98155-03) 558 RON
39 1 1 NUT (330015-01) 558 RON
40 1 1 BRACKET (176003-00) 11519 RON
40 1 1 SHIELD (133751-00) 558 RON
41 1 1 GASKET (133755-00) 781 RON
42 1 1 PIN (133820-00) 558 RON
43 1 1 133847-00 - Indisponibil
44 1 1 COLLAR (133750-00) 781 RON
45 1 1 49161-00 - Indisponibil
45 1 1 SPRING (049161-00) 558 RON
46 1 1 BEARING (133756-00) 781 RON
47 1 1 YOKE BAR (445387-00) 3466 RON
48 1 1 PLATE (450285-00) 781 RON
49 1 1 GASKET (133807-00) 558 RON
50 1 2 SCREW (445686-00) 558 RON
50 1 2 98022-26 - Indisponibil
50 1 2 SCREW (098022-26) 558 RON
51 1 1 ROLLER (620203-00) 105 RON
51 1 1 ROLLER (133762-00) 5031 RON
52 1 1 444745-00 - Indisponibil
52 1 1 PLATE (133844-00) 558 RON
53 1 1 SCREW.TEMP (330045-05) 558 RON
54 1 1 CRANK PLATE (133828-01) 2795 RON
54 1 1 PLATE (133828-01SV) 4472 RON
55 1 1 GASKET (133765-00) 558 RON
56 1 1 COUNTERWEIGHT (133761-00) 3466 RON
57 1 1 POD (429882-64) 5031 RON
58 1 1 PIN (098185-20) 558 RON
58 1 1 98185-20 - Indisponibil
59 1 1 WASHER (330015-07) 558 RON
59 1 1 N497538 - Indisponibil
60 1 1 FORK (133799-00) 4137 RON
61 1 1 WASHER (098198-05) 558 RON
61 1 1 98198-05 - Indisponibil
62 1 1 GEAR SA (133827-02SV) 17335 RON
62 1 1 GEAR SA (133827-02) 15993 RON
63 1 1 448817-02 - Indisponibil
63 1 1 GEAR CASE (448817-00) 26730 RON
64 1 1 SHOE (133770-00) 2795 RON
65 1 2 WASHER (445687-00) 558 RON
66 1 2 145074-00 - Indisponibil
67 1 1 CONTROL ROD (448815-00) 4137 RON
67 1 2 475-00 - Indisponibil
67 1 2 BALL STEEL (000475-00) 558 RON
68 1 2 604892-00 - Indisponibil
69 1 1 KNOB (448809-00) 893 RON
70 1 1 98121-30 - Indisponibil
70 1 1 98121-31 - Indisponibil
70 1 1 098121-31 - Indisponibil
71 1 1 PIN LOOSE ROLLER (98187-18) 558 RON
71 1 1 PIN (386700-00) 558 RON
72 1 2 BEARING (68040-00) 1452 RON
72 1 2 BEARING NEEDLE (330004-06) 1452 RON
73 1 1 QUADRANT (449977-00) 558 RON
74 1 1 SCREW (80164-00) 588 RON
74 1 1 SCREW (080164-00) 558 RON
75 1 2 450228-00 - Indisponibil
75 1 1 CABLE CLAMP (142519-00) 6821 RON
76 1 2 PLASTITE SCREW (330013-03) 558 RON
78 1 1 146507-00 - Indisponibil
78 1 1 761995-00 - Indisponibil
79 1 1 146474-01 - Indisponibil
80 1 1 400851-00 - Indisponibil
103 1 1 KEY HOLDER (065288-01) 558 RON
103 1 1 65288-01 - Indisponibil
800 1 1 GREASE (761995-01) 23598 RON
