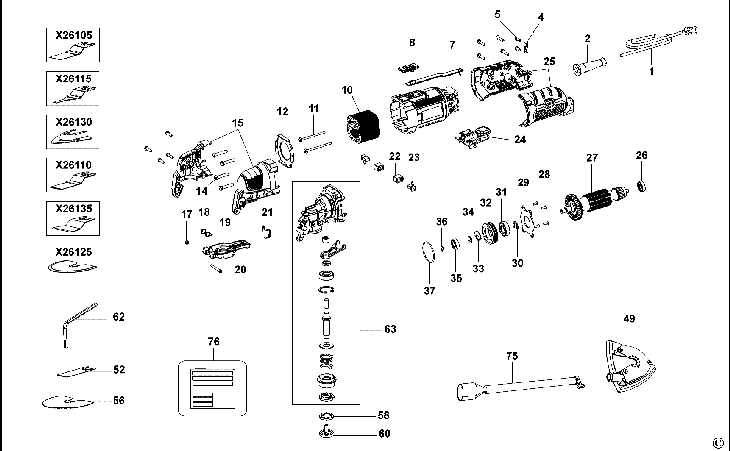

MT280 OSCILLATING TOOL Type 1
[MT280 Type 1]
MT280 OSCILLATING TOOL Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CORDSET (90587560) 5591 RON
2 1 1 CORD PROTECTOR (90567404) 781 RON
4 1 1 CORD CLAMP (90583376) 558 RON
5 1 2 Screw M3.5 X9.5 (330019-01) 558 RON
7 1 1 ACTUATOR (90580670) 558 RON
8 1 1 KNOB (90583292-01) 558 RON
10 1 1 FIELD SA 230V (90581260-01) 11519 RON
11 1 2 SCREW (90583341) 558 RON
12 1 1 BAFFLE FAN (90580666) 781 RON
14 1 4 SCREW (330019-14) 558 RON
15 1 1 HOUSING SA (90586592) 2347 RON
17 1 1 NUT (90581543) 558 RON
18 1 1 SPRING TORSION (90580672) 558 RON
19 1 1 LEVER SA (90583372-01) 1229 RON
20 1 1 SCREW (90581542) 558 RON
21 1 1 GEARCASE COVER (90583269) 781 RON
22 1 2 BRUSHBOX (90583140) 558 RON
23 1 2 BRUSH (90583144) 1229 RON
24 1 1 PCB SA (90584731) 9282 RON
25 1 1 HANDLE SA (90586591) 3466 RON
26 1 1 BEARING (90581549) 1117 RON
27 1 1 ARMATURE (90581263-01) 17335 RON
28 1 4 SCREW (90583365) 558 RON
29 1 1 PLATE (90581537) 893 RON
30 1 1 CLIP (90581540) 558 RON
31 1 1 BEARING (90586418) 1788 RON
32 1 1 SLEEVE (90581536) 190 RON
33 1 1 PLATE (90581541) 558 RON
34 1 1 WASHER (90581562) 558 RON
35 1 1 BEARING (90586419) 2124 RON
36 1 1 CLIP (90581539) 558 RON
37 1 1 SEAL (90581544) 558 RON
49 1 1 HEAD SA (90583530) 5031 RON
52 1 1 BLADE (90585830) 190 RON
56 1 1 BLADE (90585831) 6821 RON
58 1 1 FLANGE cod vechi 90583885 (N440293) 2124 RON
60 1 1 OUTER FLANGE (90584484) 1452 RON
62 1 1 WRENCH SPECIAL (90584745) 893 RON
63 1 1 HEAD SA (90590388) 20467 RON
75 1 1 TUBE SA (90586018) 3466 RON
76 1 1 RATING LABEL (90599329) 558 RON
