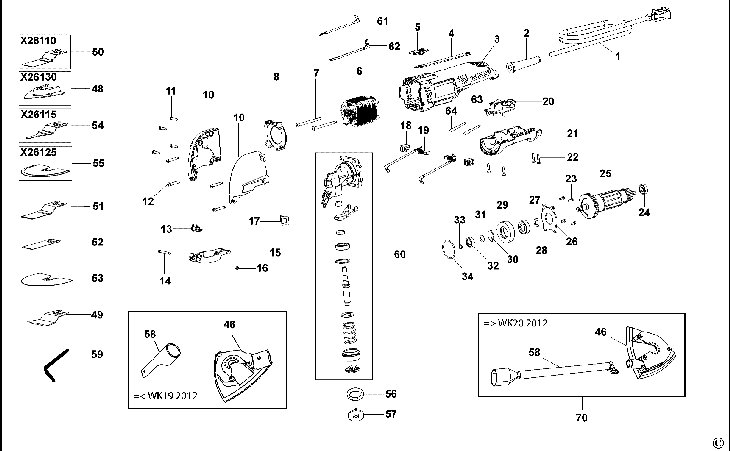

MT250 OSCILLATING TOOL Type 1
[MT250 Type 1]
MT250 OSCILLATING TOOL Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CORDSET (1004556-12) 20467 RON
2 1 1 CORD PROTECTOR (5140108-77) 893 RON
3 1 1 MOTOR HOUSING SA (1004556-14) 10512 RON
4 1 1 ACTUATOR (5140108-79) 781 RON
5 1 1 BUTTON (5140108-80) 893 RON
6 1 1 FIELD (1004556-22) 17335 RON
7 1 2 SCREW (1004556-15) 558 RON
8 1 1 BAFFLE FAN (5140108-82) 893 RON
10 1 1 HOUSING PAIR (1004556-16) 4472 RON
11 1 4 SCREW (5140108-85) 558 RON
12 1 4 SCREW (1004556-17) 558 RON
13 1 1 SPRING (5140108-86) 1117 RON
14 1 1 SCREW (5140108-87) 781 RON
15 1 1 SPANNER (5140108-88) 3018 RON
16 1 1 NUT (5140108-89) 558 RON
17 1 1 COVER (5140108-90) 781 RON
18 1 2 BRUSH & HOLDER (5140108-91) 781 RON
19 1 1 BRUSH LEAD SA (5140108-92) 1229 RON
20 1 1 PCB SA (1004556-18) 11519 RON
21 1 1 HOUSING LOWER (5140108-94) 4472 RON
22 1 4 SCREW (5140108-95) 558 RON
23 1 4 SCREW (5140108-96) 558 RON
24 1 1 BEARING (5140108-98) 2795 RON
25 1 1 ARMATURE (1004556-23) 25164 RON
26 1 1 CLAMP (5140109-00) 1229 RON
27 1 1 CIRCLIP (5140109-01) 558 RON
28 1 1 BEARING (1004556-19) 2347 RON
29 1 1 SUPPORT BRACKET (5140109-02) 4137 RON
30 1 1 COUNTERWEIGHT (5140109-03) 558 RON
31 1 1 WASHER (5140109-04) 558 RON
32 1 1 BEARING (5140109-05) 5591 RON
33 1 1 CIRCLIP (5140109-06) 558 RON
34 1 1 O RING (5140109-07) 781 RON
46 1 1 PLATEN (6010352-13) 11519 RON
46 1 1 HEAD SA (1004683-30) 1891 RON
48 1 1 BLADE (1004556-08) 12861 RON
49 1 1 BLADE (5140109-96) 3466 RON
50 1 1 BLADE (1004556-09) 7940 RON
51 1 1 BLADE (5140109-24) 6821 RON
52 1 1 BLADE (5140109-25) 3466 RON
53 1 1 BLADE (5140109-26) 12861 RON
54 1 1 BLADE (1004556-10) 5031 RON
55 1 1 BLADE (1004556-11) 14315 RON
56 1 1 ADAPTOR (1004556-03) 6821 RON
57 1 1 SCREW (1004556-04) 781 RON
58 1 1 HOSE SA (6010352-14) 5591 RON
58 1 1 VACUUM ADAPTOR (1004556-07) 1788 RON
59 1 1 SPANNER (1004556-05) 893 RON
60 1 1 SPINDLE (5140109-08) 45297 RON
61 1 1 LEAD BROWN (1004556-20) 893 RON
62 1 1 LEAD BLUE (1004556-21) 893 RON
63 1 1 LEAD & DIODE SA (1004556-24) 893 RON
64 1 1 LEAD & DIODE SA (1004556-25) 558 RON
70 1 1 HEAD SA (1004683-30) 1891 RON
