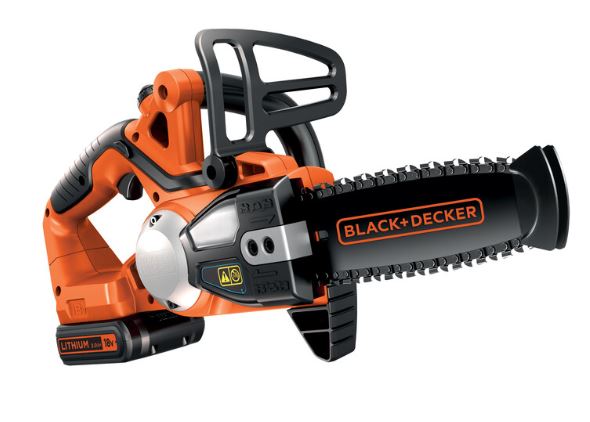

MOTOFIERASTRAU BLACK+DECKER GKC1820LB Type 3
[GKC1820LB Type 3]
MOTOFIERASTRAU BLACK+DECKER GKC1820LB Type 3
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU BLACK+DECKER GKC1820LB Type 3
Click pentru a mari
MOTOFIERASTRAU BLACK+DECKER GKC1820LB Type 3
Click pentru a mari

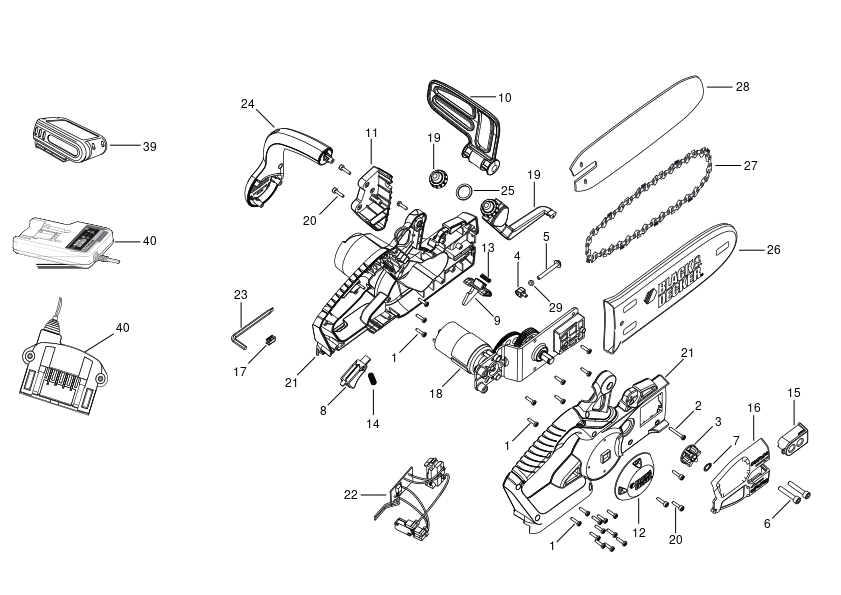

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 21 Screw M3.5X16 T15 (330019-03) 558 RON
2 1 1 SCREW (330019-05) 558 RON
3 1 1 SPROCKET (N597159) 114 RON
4 1 1 CLAMP (N597160) 944 RON
5 1 1 SCREW (N601071) 588 RON
6 1 2 SCREW (90507689) 558 RON
7 1 1 LOCKING RING (624521-00) 558 RON
8 1 1 TRIGGER (90550462) 558 RON
9 1 1 ACTUATOR (90502128) 781 RON
10 1 1 GUARD (90502132) 893 RON
11 1 1 BAR (90502134) 893 RON
12 1 1 COVER AND LABEL (90502135-02) 944 RON
13 1 1 SPRING (90517008-01) 588 RON
14 1 1 SPRING (90502137) 558 RON
15 1 1 CLAMP (90502141) 2347 RON
16 1 1 COVER (90502142) 781 RON
17 1 1 CLIP (90502143) 558 RON
18 1 1 TRANSMISSION SA (90582976) 38463 RON
19 1 1 OIL TANK (90502171) 3466 RON
20 1 5 SCREW (90502469) 558 RON
21 1 1 CLAMSHELL SET (NA210226) 12361 RON
22 1 1 PCB SA (NA201810) 32327 RON
23 1 1 HEX KEY (90502723) 781 RON
24 1 1 HANDLE SA (N677167) 4355 RON
25 1 1 SEAL (90504642) 558 RON
26 1 1 SHEATH (90517719-01) 2182 RON
27 1 1 CHAIN (N603750) 6688 RON
28 1 1 BAR CHAIN (90619609) 12361 RON
29 1 1 WASHER (90519433) 558 RON
