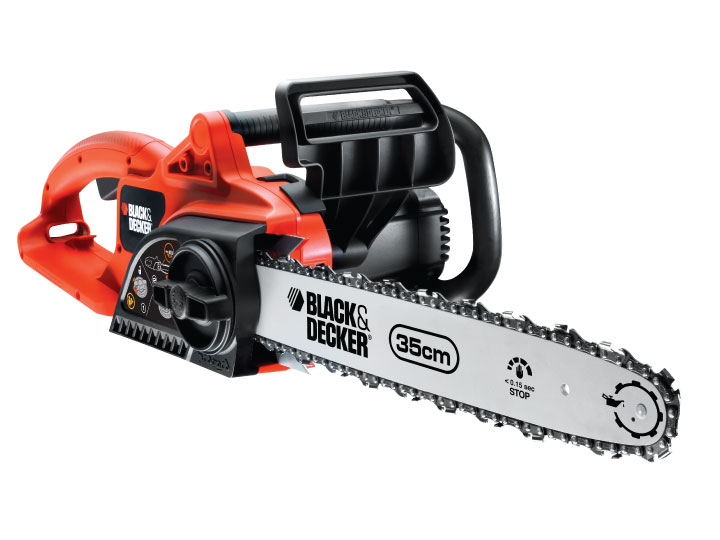

MOTOFIERASTRAU BLACK+DECKER GK1830 Type 2
[GK1830 Type 2]
MOTOFIERASTRAU BLACK+DECKER GK1830 Type 2
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU BLACK+DECKER GK1830 Type 2
Click pentru a mari
MOTOFIERASTRAU BLACK+DECKER GK1830 Type 2
Click pentru a mari

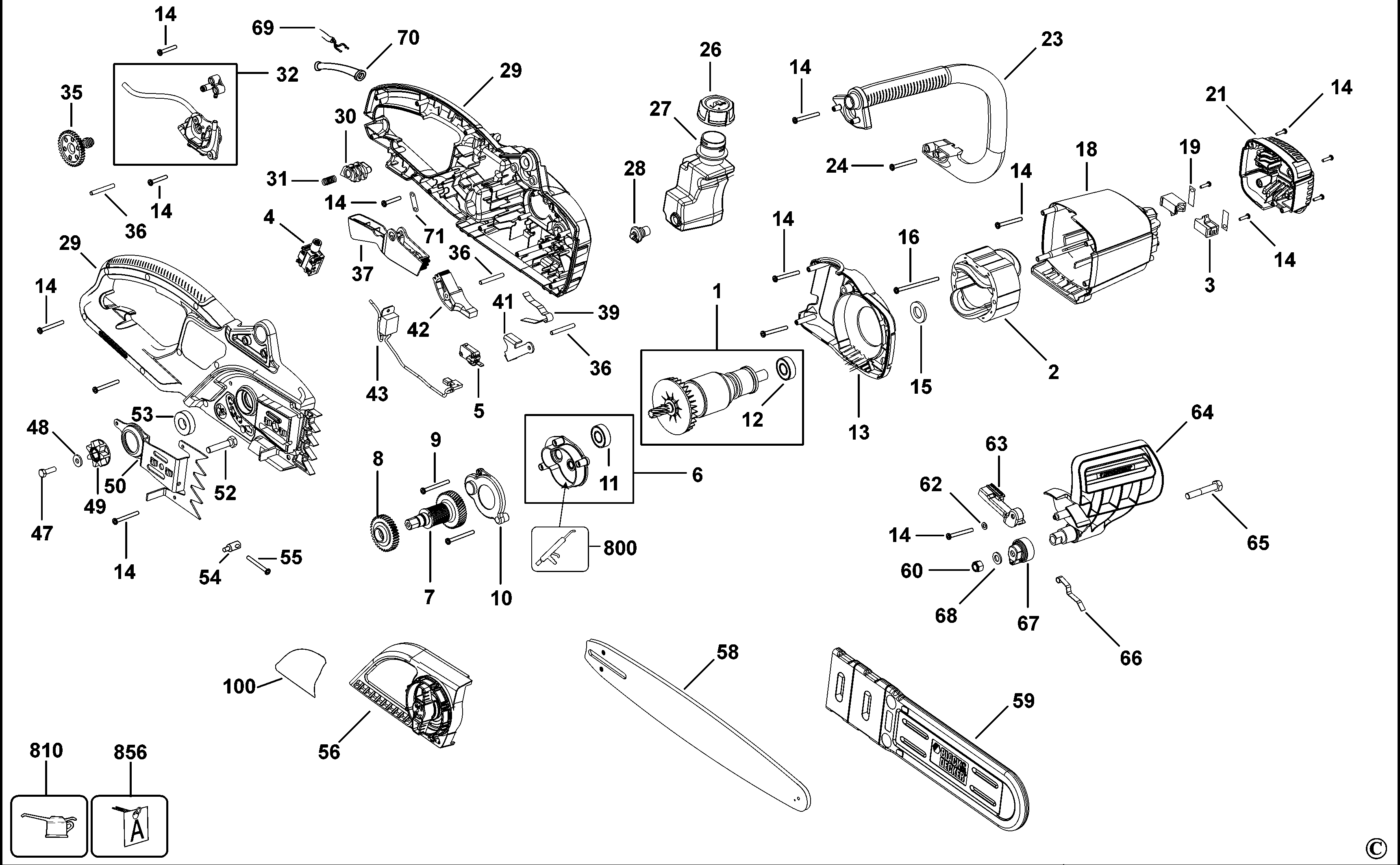

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (90564001-01) 34336 RON
2 1 1 FIELD (90551539-01) 15993 RON
3 1 1 BRUSH PAIR 230V SA (90564003) 3466 RON
4 1 1 SWITCH (90082750) 3466 RON
5 1 1 MICROSWITCH (90534860) 2124 RON
6 1 1 PLATE SA (90090364) 4472 RON
7 1 1 GEAR & SHAFT (90551537) 15993 RON
8 1 1 GEAR (90085469) 105 RON
9 1 4 SCREW (90554049) 558 RON
10 1 1 GEARCASE COVER (90088297) 781 RON
11 1 1 BEARING (489159-00) 1452 RON
11 1 1 90546897 - Indisponibil
12 1 1 BEARING (488950-00) 1117 RON
13 1 1 FAN COVER (90083912) 190 RON
14 1 32 SCREW (747329) 558 RON
15 1 1 WASHER THRUST (90551986) 558 RON
16 1 2 SCREW (330019-58) 558 RON
18 1 1 FIELD CASE (90083627) 5591 RON
19 1 2 SUPPORT (90157834) 558 RON
21 1 1 END CAP (90083628) 1452 RON
23 1 1 LOOP HANDLE (90094699) 3466 RON
24 1 2 SCREW (747329) 558 RON
26 1 1 CAP (90101305) 781 RON
27 1 1 RESERVOIR (90087327) 893 RON
28 1 1 CONNECTOR (90564006) 1229 RON
29 1 1 CLAMSHELL SET (90083624) 10512 RON
30 1 1 BUTTON LOCK-OFF (90093875) 558 RON
31 1 1 SPRING (90551259) 558 RON
32 1 1 PUMP SA (90108436) 5031 RON
35 1 1 GEAR (90085239) 1117 RON
36 1 3 PIN (90090721) 558 RON
37 1 1 TRIGGER (90085847) 893 RON
39 1 1 LEAF SPRING (90090725) 781 RON
41 1 1 BRAKE (90098589) 190 RON
42 1 1 LINK (90085845) 781 RON
43 1 1 CAPACITOR SA (90551538) 190 RON
47 1 1 BOLT (90103828) 558 RON
48 1 1 SPACER (90103825) 558 RON
49 1 1 SPROCKET (90085458) 2124 RON
50 1 1 MOUNT (90551471) 4137 RON
52 1 1 BOLT (90554150) 558 RON
53 1 1 BEARING (90555168) 1788 RON
54 1 1 TENSION BLOCK (90087840) 105 RON
55 1 1 SCREW (90558688) 558 RON
56 1 1 COVER SA (90095647) 5591 RON
58 1 1 90570697 - Indisponibil
58 1 1 BAR CHAIN (90569309) 12861 RON
59 1 1 SHEATH (90569311) 2347 RON
60 1 1 NUT NYLOC M8 SLIDE BAR NEW (370023) 558 RON
62 1 1 WASHER PLAIN (330016-01) 558 RON
63 1 1 LINK (90085846) 558 RON
64 1 1 GUARD (90088203) 6821 RON
65 1 1 BOLT (098025-50) 558 RON
66 1 1 SPRING (90088173) 781 RON
67 1 1 ACTUATOR (90090843) 781 RON
68 1 1 WASHER (330016-07) 558 RON
69 1 1 CORDSET (90558800) 12861 RON
70 1 1 CORD PROTECTOR (770235) 558 RON
71 1 1 CLAMP CORD CORNER (329301-00) 558 RON
100 1 1 LABEL (90549924) 781 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
810 1 1 A6027 - Indisponibil
856 1 1 A6292 - Indisponibil
