MOTOFIERASTRAU BLACK+DECKER GK1430 Type 1
[GK1430 Type 1]
MOTOFIERASTRAU BLACK+DECKER GK1430 Type 1
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU BLACK+DECKER GK1430 Type 1
Click pentru a mari

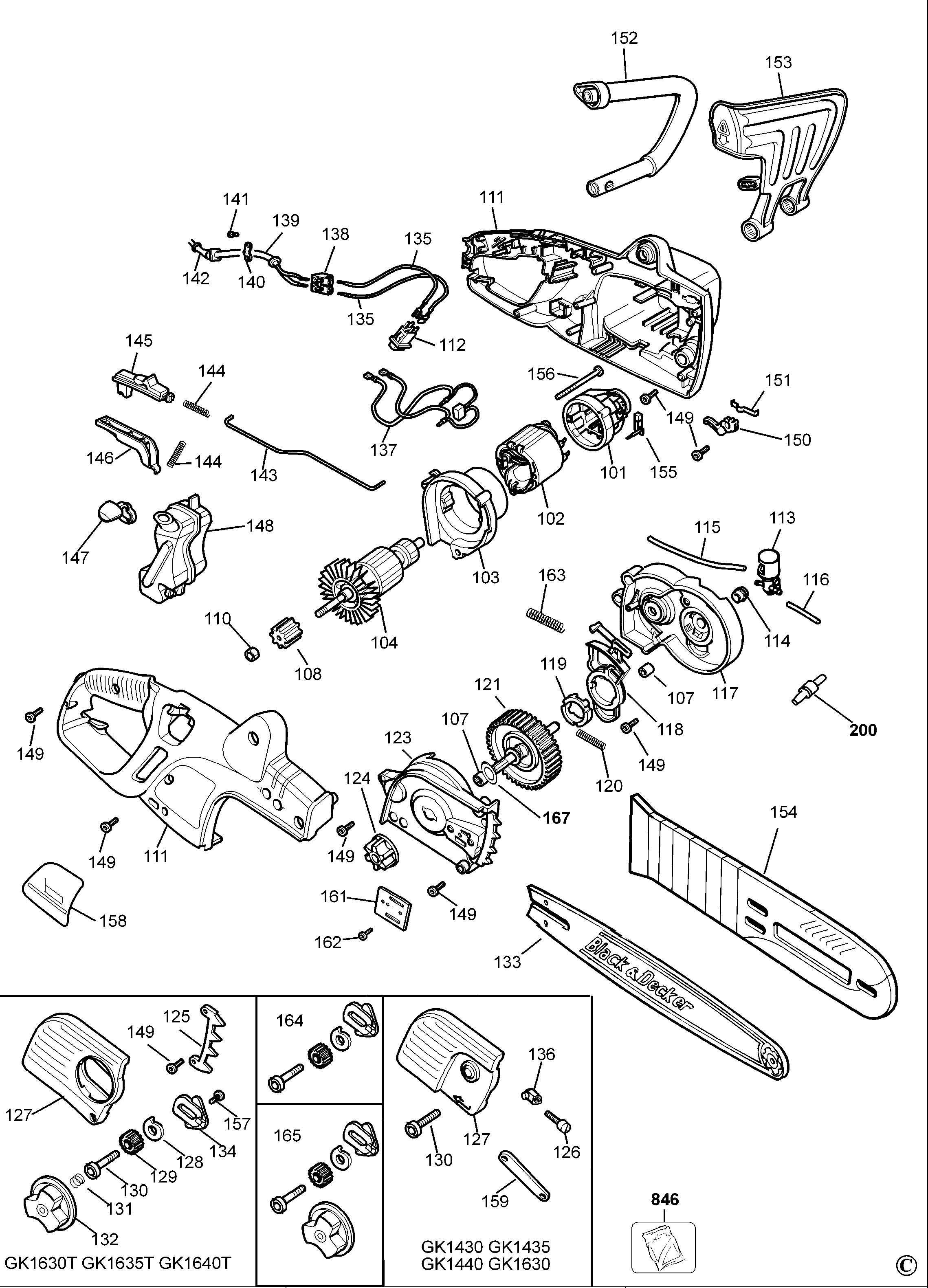

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 HOUSING COMM.END (374809-02) 3466 RON
101 1 1 374809-01 - Indisponibil
102 1 1 SA FIELD ( SERVICE ) (327429-10) 20467 RON
102 1 1 FIELD (369052-01) 11519 RON
103 1 1 HOUSING FAN END (373796) 2124 RON
104 1 1 SA ARMATURE ( SERVICE ) (377489-49) 25164 RON
104 1 1 S.A.ARMATURE (377489-01) 22144 RON
107 1 2 BEARING NEEDLE (330004-06) 1452 RON
108 1 1 PINION (374834) 893 RON
110 1 1 NUT M8 (896369) 558 RON
111 1 1 576485-01 - Indisponibil
111 1 1 REPAIR KIT (582137-00) 12861 RON
111 1 1 375864 - Indisponibil
111 1 1 CLAMSHELL SET (576485-02) 7940 RON
111 1 1 CLAMSHELL SET (581360-00) 6821 RON
112 1 1 374847 - Indisponibil
112 1 1 SWITCH SIGNAL LUX L4 (579318-00) 2347 RON
113 1 1 570725 - Indisponibil
113 1 1 PUMP SA (571037-01) 3018 RON
113 1 1 OIL LEAK REPAIR KIT (577090-00) 10512 RON
114 1 1 WORM OIL PUMP (374832) 105 RON
115 1 1 374838-01 - Indisponibil
115 1 1 PIPE LONG (374838-03) 781 RON
116 1 1 374838-02 - Indisponibil
116 1 1 PIPE. SHORT (374838-05) 558 RON
116 1 1 OIL LEAK REPAIR KIT (577090-00) 10512 RON
117 1 1 S.A.GEARBOX (376155) 6821 RON
118 1 1 ACTUATOR BRAKE GK (374863) 558 RON
119 1 1 CAM RING (374867) 1452 RON
120 1 1 SPRING BRAKE (376640) 558 RON
121 1 1 GEAR & SPINDLE (374830-49) 17335 RON
121 1 1 374830 - Indisponibil
123 1 1 OIL LEAK REPAIR KIT (577090-00) 10512 RON
123 1 1 374822 - Indisponibil
123 1 1 GEARCASE COVER (576197-01) 7940 RON
123 1 1 SA GEARCASE COVER (581359-00) 9282 RON
124 1 1 376812 - Indisponibil
124 1 1 N542284 - Indisponibil
125 1 1 SPIKED BUMPER GK (374866) 893 RON
126 1 1 SCREW M5 X 30 (376626) 558 RON
127 1 1 S.A.CHAIN COVER (376358) 3466 RON
127 1 1 COVER (374857) 3466 RON
127 1 1 COVER (374857-00) 3018 RON
127 1 1 COVER GK (581154-00) 3018 RON
128 1 1 CAM TENSIONER (374854) 1452 RON
129 1 1 CLAMP TENSIONER (376160) 1229 RON
130 1 1 SCREW H M6X35 (853727-00) 558 RON
130 1 1 BOLT M6 X 35 HEX. (570566) 558 RON
131 1 1 SPRING TENSIONER (374875) 558 RON
132 1 1 KNOB BLACK (MOULD) (90536926) 2124 RON
132 1 1 KNOB TENSIONER GK (571140-00) 1117 RON
133 1 1 CHAIN BAR 435MM (369090-10) 20467 RON
133 1 1 CHAIN BAR 343MM (369090-08) 14315 RON
133 1 1 CHAIN BAR 389MM (369090-09) 14315 RON
134 1 1 SLIDER TENSIONER (581153-00) 1117 RON
134 1 1 ADJUSTER SA (374855) 1117 RON
135 1 2 S.A.LEADWIRE (376175) 558 RON
136 1 1 SLIDING NUT (842845) 781 RON
137 1 1 sS.A.LEADWIRE (376174) 2347 RON
138 1 1 TERMINAL BLOCK (373883) 781 RON
139 1 1 CORDSET ( AR ) (573379-00) 4137 RON
139 1 1 330048-25 - Indisponibil
140 1 1 @ HOUSING SET (MOSS GREEN) CORD CLAMP (994808) Indisponibil Indisponibil
141 1 2 SCREW NO.6 X 12.7 (821057) 558 RON
142 1 1 CORD PROTECTOR (770235) 558 RON
143 1 1 LINK LOCK OFF (374843) 781 RON
144 1 2 SPRING (374842) 558 RON
145 1 1 BUTTON LOCK-OFF GK (374841) 558 RON
146 1 1 TRIGGER GK (374018) 558 RON
147 1 1 REPAIR KIT (582137-00) 12861 RON
147 1 1 SA SCREW CAP (581400-00) 190 RON
147 1 1 LID (374840) 558 RON
147 1 1 CAP (577229-00) 2347 RON
148 1 1 REPAIR KIT (582137-00) 12861 RON
148 1 1 SA OIL TANK GK (580568-00) 3018 RON
148 1 1 TANK (374877) 3466 RON
149 1 15 SCREW 8-16 X 3/4 (849256) 558 RON
150 1 1 GUARD ACTUATOR GK (374846) 558 RON
151 1 1 SPRING (GUARD) (374845) 558 RON
152 1 1 HANDLE FRONT GK (374597) 3018 RON
153 1 1 GUARD - CHAINSAW (374844-00) 4472 RON
153 1 1 GUARD CHAINSAW (374844-01) 2795 RON
153 1 1 GUARD (374844) 4472 RON
153 1 1 GUARD (374844-02) 3466 RON
154 1 1 376587-03 - Indisponibil
154 1 1 SHEATH CHAIN 40CM GK (376587-01) 2347 RON
154 1 1 SHEATH CHAIN 35CM GK (376587-02) 3018 RON
155 1 2 BRUSH 230V SA (370983-02) 2124 RON
156 1 2 SCREW 8-32 X 65 (844217-03) 558 RON
157 1 1 SCREW M4X8 TAPTITE (376582) 558 RON
158 1 1 BRAND LABEL (576479-04) 781 RON
158 1 1 BRAND LABEL (374849-01) 893 RON
158 1 1 374849-02 - Indisponibil
158 1 1 374849-03 - Indisponibil
158 1 1 374849-05 - Indisponibil
158 1 1 374849-06 - Indisponibil
158 1 1 374849-07 - Indisponibil
158 1 1 374849-04 - Indisponibil
159 1 1 WRENCH SW10 (325194-00) 781 RON
161 1 1 PLATE SPRING (570552) 781 RON
162 1 1 SCREW NO4 X 12 (570567) 558 RON
163 1 1 SPRING RETURN (570565) 781 RON
164 1 1 REPAIR KIT (572516-00) 5031 RON
164 1 1 REPAIR KIT (572516-02) 5591 RON
165 1 1 572516-01 - Indisponibil
165 1 1 REPAIR KIT (572516-02) 5591 RON
167 1 1 WASHER (323830-00) 558 RON
200 1 1 CHECK VALVE (575707-00) 2347 RON
