MOTOFIERASTRAU BLACK+DECKER CS2245 Type 1
[CS2245 Type 1]
MOTOFIERASTRAU BLACK+DECKER CS2245 Type 1
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU BLACK+DECKER CS2245 Type 1
Click pentru a mari
MOTOFIERASTRAU BLACK+DECKER CS2245 Type 1
Click pentru a mari

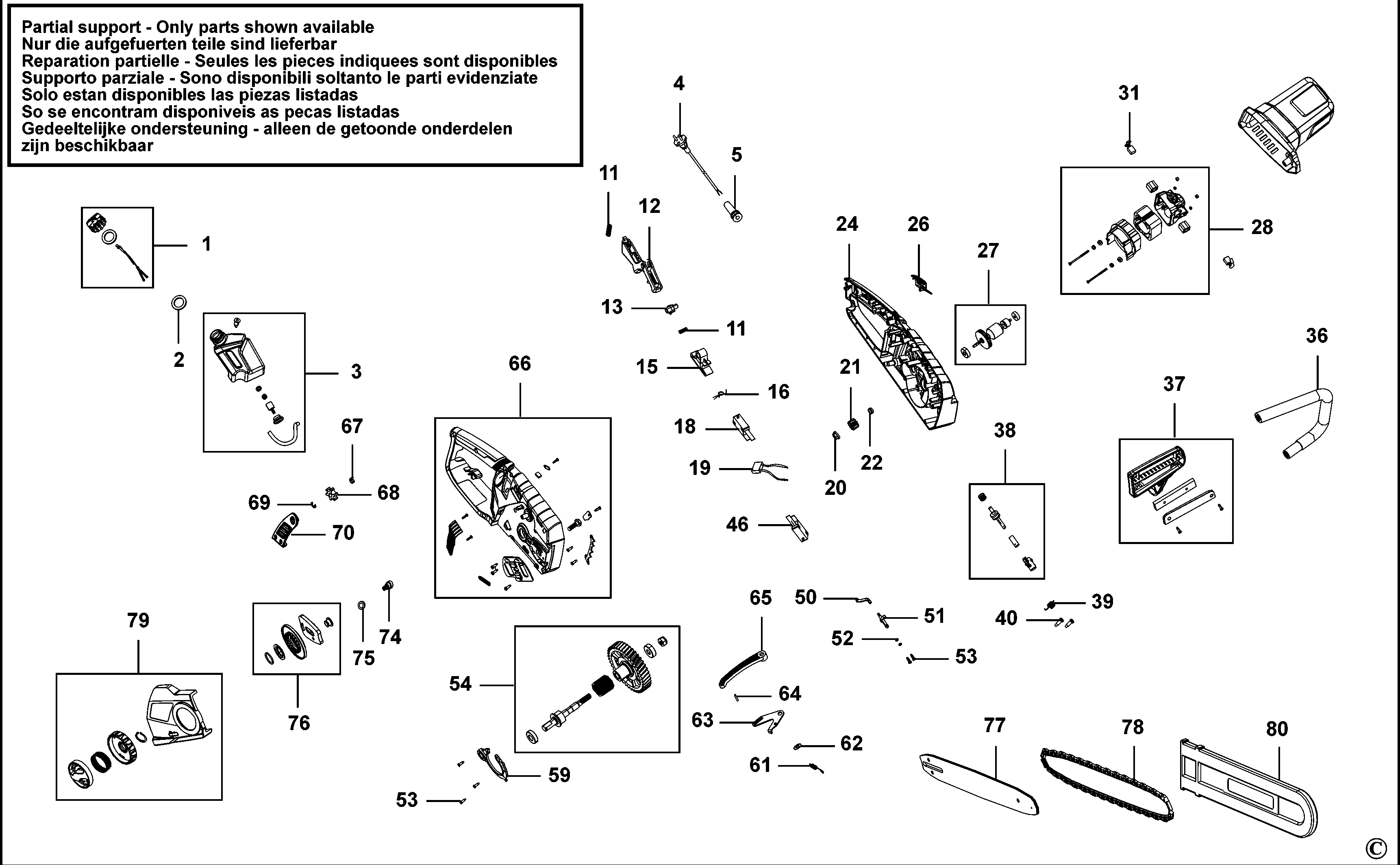

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CAP SA (1004698-95) 114 RON
2 1 1 O RING (1004698-96) 588 RON
3 1 1 RESERVOIR SA (1004698-97) 3268 RON
4 1 1 CORDSET (1004699-00) 16689 RON
5 1 1 CORD PROTECTOR (1004698-05) 588 RON
11 1 2 SPRING (1004698-11) 588 RON
12 1 1 TRIGGER (1004699-01) 114 RON
13 1 1 BUTTON (1004699-02) 944 RON
15 1 1 CONNECTING ROD (1004698-15) 668 RON
16 1 1 SPRING (1004698-16) 588 RON
18 1 1 MICRO SWITCH (1004699-03) 2182 RON
19 1 1 CAPACITOR (1004698-26) 668 RON
20 1 1 NUT (1004698-20) 588 RON
21 1 1 PINION (1004698-21) 944 RON
22 1 1 BUSHING (1004698-22) 588 RON
24 1 1 HOUSING LH (1004699-04) 15469 RON
26 1 1 PANEL (1004699-05) 588 RON
27 1 1 ARMATURE SA (1004699-06) 23244 RON
28 1 1 FIELD SA (1004699-07) 23244 RON
31 1 1 BRUSH PAIR (1004699-08) 2556 RON
36 1 1 HANDLE (1004699-09) 1933 RON
37 1 1 PLATE (1004699-10) 741 RON
38 1 1 PUMP SA (1004698-66) 1933 RON
39 1 1 SPRING (1004699-11) 588 RON
40 1 2 BOLT (1004699-16) 588 RON
46 1 1 MICRO SWITCH (1004699-12) 2182 RON
50 1 1 TUBE OIL (1004698-40) 1772 RON
51 1 1 OUTLET (1004698-39) 588 RON
52 1 2 O RING (1004698-38) 588 RON
53 1 5 SCREW (1004697-51) 588 RON
54 1 1 OUTPUT SHAFT SA (1004698-67) 10241 RON
59 1 1 DUST GUARD (1004698-63) 82 RON
61 1 1 SPRING (1004698-43) 588 RON
62 1 1 SPACER (1004698-44) 588 RON
63 1 1 WASHER (1004695-08) 558 RON
64 1 1 PIN (1004698-47) 588 RON
65 1 1 CONNECTING ROD (1004698-48) 668 RON
66 1 1 HOUSING RH (1004699-13) 16689 RON
67 1 1 SPRING (1004698-50) 588 RON
68 1 1 SPROCKET (1004699-14) 944 RON
69 1 1 RETAINER (1004697-79) 588 RON
70 1 1 SUPPORT (1004699-15) 3268 RON
74 1 1 SCREW (1004698-84) 588 RON
75 1 1 SEAL (1004699-17) 588 RON
76 1 1 TENSION BLOCK (1004699-18) 3954 RON
77 1 1 BAR CHAIN (1004699-19) 15469 RON
78 1 1 CHAIN (1004699-20) 12361 RON
79 1 1 END CAP SA (1004699-21) 6688 RON
80 1 1 SHEATH (1004699-22) 2796 RON
