MOTOFIERASTRAU BLACK+DECKER CS2040 Type 1
[CS2040 Type 1]
MOTOFIERASTRAU BLACK+DECKER CS2040 Type 1
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU BLACK+DECKER CS2040 Type 1
Click pentru a mari
MOTOFIERASTRAU BLACK+DECKER CS2040 Type 1
Click pentru a mari

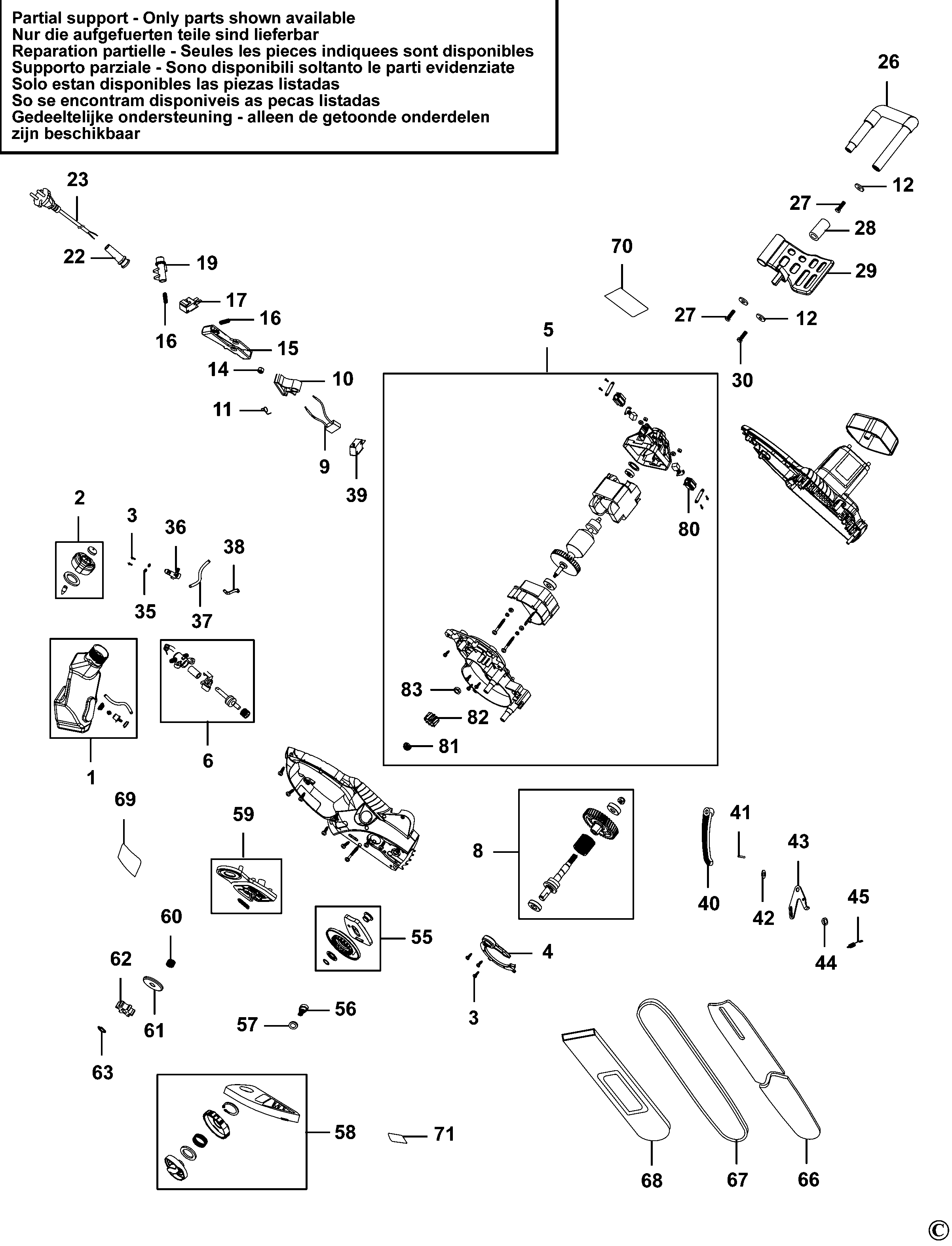

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 RESERVOIR SA (1004698-61) 2556 RON
2 1 1 CAP SA (1004698-62) 944 RON
3 1 5 SCREW (1004697-53) 588 RON
4 1 1 DUST GUARD (1004698-63) 82 RON
5 1 1 MOTOR SA (1004698-64) 44688 RON
6 1 1 PUMP SA (1004698-66) 1933 RON
8 1 1 OUTPUT SHAFT SA (1004698-67) 10241 RON
9 1 1 CAPACITOR (1004698-68) 668 RON
10 1 1 CONNECTING ROD (1004698-15) 668 RON
11 1 1 SPRING (1004698-16) 588 RON
12 1 4 WASHER (1004695-08) 558 RON
14 1 1 PULLEY (1004698-69) 588 RON
15 1 1 TRIGGER (1004698-70) 944 RON
16 1 2 SPRING (1004698-11) 588 RON
17 1 1 MICRO SWITCH (1004698-71) 3268 RON
19 1 1 BUTTON (1004698-72) 588 RON
22 1 1 CORD PROTECTOR (1004698-73) 588 RON
23 1 1 CORDSET (1004698-75) 16689 RON
26 1 1 HANDLE (1004698-76) 4355 RON
27 1 2 SCREW (1004698-77) 588 RON
28 1 1 COVER (1004698-78) 668 RON
29 1 1 PLATE (1004698-79) 4355 RON
30 1 1 SCREW (1004697-54) 588 RON
35 1 2 O RING (1004698-38) 588 RON
36 1 1 JOINT (1004698-80) 588 RON
37 1 1 TUBE OIL (1004698-40) 1772 RON
38 1 1 SPRING (1004698-81) 588 RON
39 1 1 MICRO SWITCH (1004698-82) 1772 RON
40 1 1 CONNECTING ROD (1004698-48) 668 RON
41 1 1 PIN (1004698-47) 588 RON
42 1 1 SPACER (1004698-44) 588 RON
43 1 1 BRAKE (1004699-23) 588 RON
44 1 1 SLEEVE (1004698-46) 588 RON
45 1 1 SPRING (1004698-43) 588 RON
55 1 1 TENSION BLOCK (1004698-83) 3954 RON
56 1 1 SCREW (1004698-84) 588 RON
57 1 1 SEAL (1004698-85) 588 RON
58 1 1 END CAP SA (1004698-86) 4355 RON
59 1 1 INSERT (1004698-87) 2796 RON
60 1 1 SPRING (1004698-50) 588 RON
61 1 1 CAP (1004698-88) 588 RON
62 1 1 1004698-51 - Indisponibil
62 1 1 SPROCKET (1004700-58) 1318 RON
63 1 1 RETAINER (1004697-79) 588 RON
66 1 1 BAR CHAIN 40CM (1004698-89) 10241 RON
67 1 1 CHAIN (1004698-90) 11337 RON
68 1 1 SHEATH (1004698-91) 2556 RON
69 1 1 WARNING LABEL (1004698-92) 588 RON
70 1 1 RATING LABEL (1004698-93) 588 RON
71 1 1 BRAND LABEL (1004698-94) 588 RON
80 1 1 BRUSH PAIR (1004698-65) 2182 RON
81 1 1 NUT (1004698-20) 588 RON
82 1 1 PINION (1004698-21) 944 RON
83 1 1 BUSHING (1004698-22) 588 RON
