MOTOFIERASTRAU BLACK+DECKER CS1840 Type 1
[CS1840 Type 1]
MOTOFIERASTRAU BLACK+DECKER CS1840 Type 1
Click pentru a mari
Imagini suplimentare
MOTOFIERASTRAU BLACK+DECKER CS1840 Type 1
Click pentru a mari
MOTOFIERASTRAU BLACK+DECKER CS1840 Type 1
Click pentru a mari

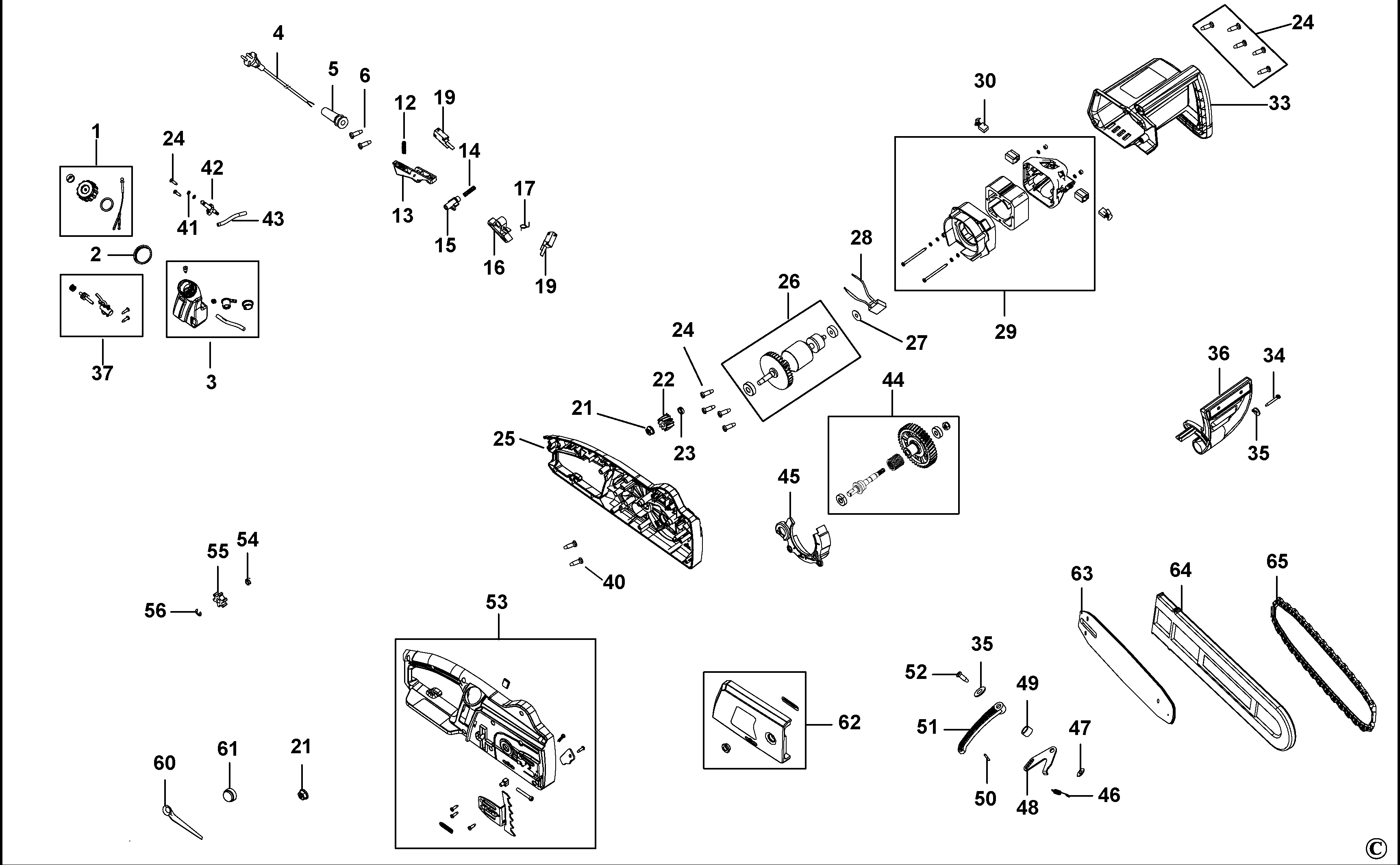

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CAP SA (1004700-39) 668 RON
2 1 1 SEAL (1004698-02) 588 RON
3 1 1 RESERVOIR SA (1004698-03) 2796 RON
4 1 1 CORDSET (1004698-60) 15469 RON
5 1 1 CORD PROTECTOR (1004698-05) 588 RON
6 1 2 SCREW (1004697-51) 588 RON
12 1 1 SPRING (1004698-11) 588 RON
13 1 1 1004698-12 - Indisponibil
13 1 1 TRIGGER (1004700-55) 668 RON
14 1 1 SPRING (1004698-13) 588 RON
15 1 1 BUTTON (1004698-14) 588 RON
16 1 1 CONNECTING ROD (1004698-15) 668 RON
17 1 1 SPRING (1004698-16) 588 RON
19 1 2 MICRO SWITCH (1004698-18) 1933 RON
21 1 2 NUT (1004698-20) 588 RON
22 1 1 PINION (1004698-21) 944 RON
23 1 1 BUSHING (1004698-22) 588 RON
24 1 11 SCREW (1004697-77) 588 RON
25 1 1 HOUSING LH (1004698-23) 10241 RON
26 1 1 ARMATURE SA (1004698-24) 20216 RON
27 1 1 SPACER (1004698-25) 588 RON
28 1 1 CAPACITOR (1004698-26) 668 RON
29 1 1 FIELD SA (1004698-27) 15469 RON
30 1 1 BRUSH PAIR (1004700-35) 1630 RON
33 1 1 COVER REAR (1004698-31) 9012 RON
34 1 2 SCREW (1004698-32) 588 RON
35 1 2 WASHER (1004695-08) 558 RON
36 1 1 PLATE (1004700-36) 2556 RON
37 1 1 PUMP SA (1004698-34) 1772 RON
40 1 1 BOLT (1004699-16) 588 RON
41 1 2 O RING (1004698-38) 588 RON
42 1 1 OUTLET (1004698-39) 588 RON
43 1 1 TUBE OIL (1004698-40) 1772 RON
44 1 1 OUTPUT SHAFT SA (1004698-41) 10241 RON
45 1 1 DUST GUARD (1004700-37) 668 RON
46 1 1 SPRING (1004698-43) 588 RON
47 1 1 SPACER (1004698-25) 588 RON
48 1 1 BRAKE (1004700-38) 668 RON
49 1 1 SLEEVE (1004698-46) 588 RON
50 1 1 PIN (1004698-47) 588 RON
51 1 1 CONNECTING ROD (1004698-48) 668 RON
52 1 1 SCREW (1004697-74) 588 RON
53 1 1 HOUSING RH (1004698-49) 12361 RON
54 1 1 SPRING (1004698-50) 588 RON
55 1 1 SPROCKET (1004699-14) 944 RON
56 1 1 RETAINER (1004697-79) 588 RON
60 1 1 WRENCH SPECIAL (1004697-89) 944 RON
61 1 1 CAP (1004698-55) 588 RON
62 1 1 END CAP SA (1004698-56) 3268 RON
63 1 1 BAR CHAIN 40CM (1004698-89) 10241 RON
64 1 1 SHEATH (1004698-91) 2556 RON
65 1 1 CHAIN (1004698-90) 11337 RON
