Top » Piese de schimb » PIESE BLACK & DECKER » FSMH13101SM Type 1

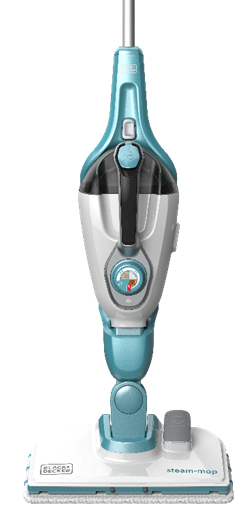

MOP CU ABUR BLACK+DECKER FSMH13101SM Type 1
[FSMH13101SM Type 1]
MOP CU ABUR BLACK+DECKER FSMH13101SM Type 1
Click pentru a mari
Imagini suplimentare
MOP CU ABUR BLACK+DECKER FSMH13101SM Type 1
Click pentru a mari
MOP CU ABUR BLACK+DECKER FSMH13101SM Type 1
Click pentru a mari
MOP CU ABUR BLACK+DECKER FSMH13101SM Type 1
Click pentru a mari

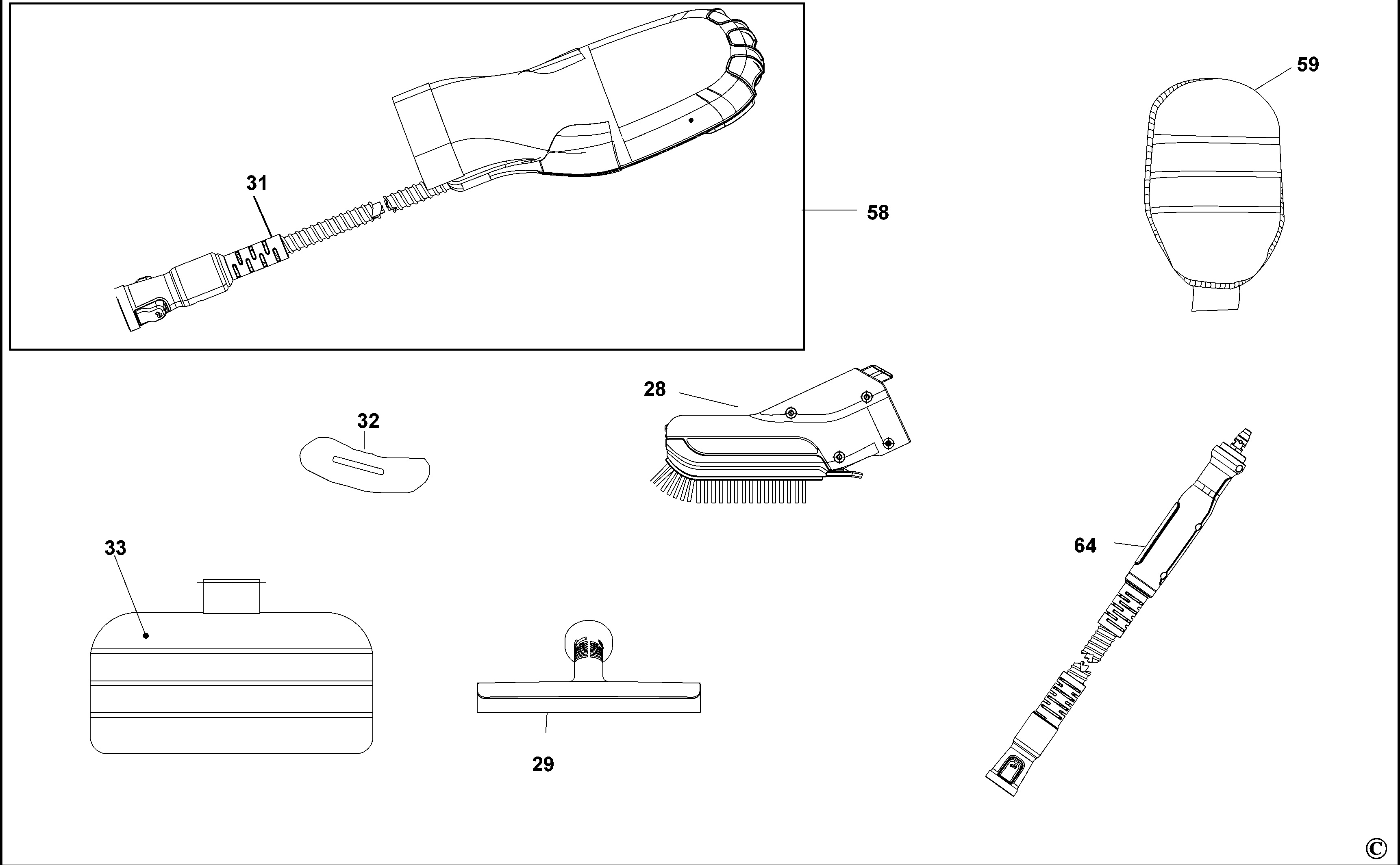

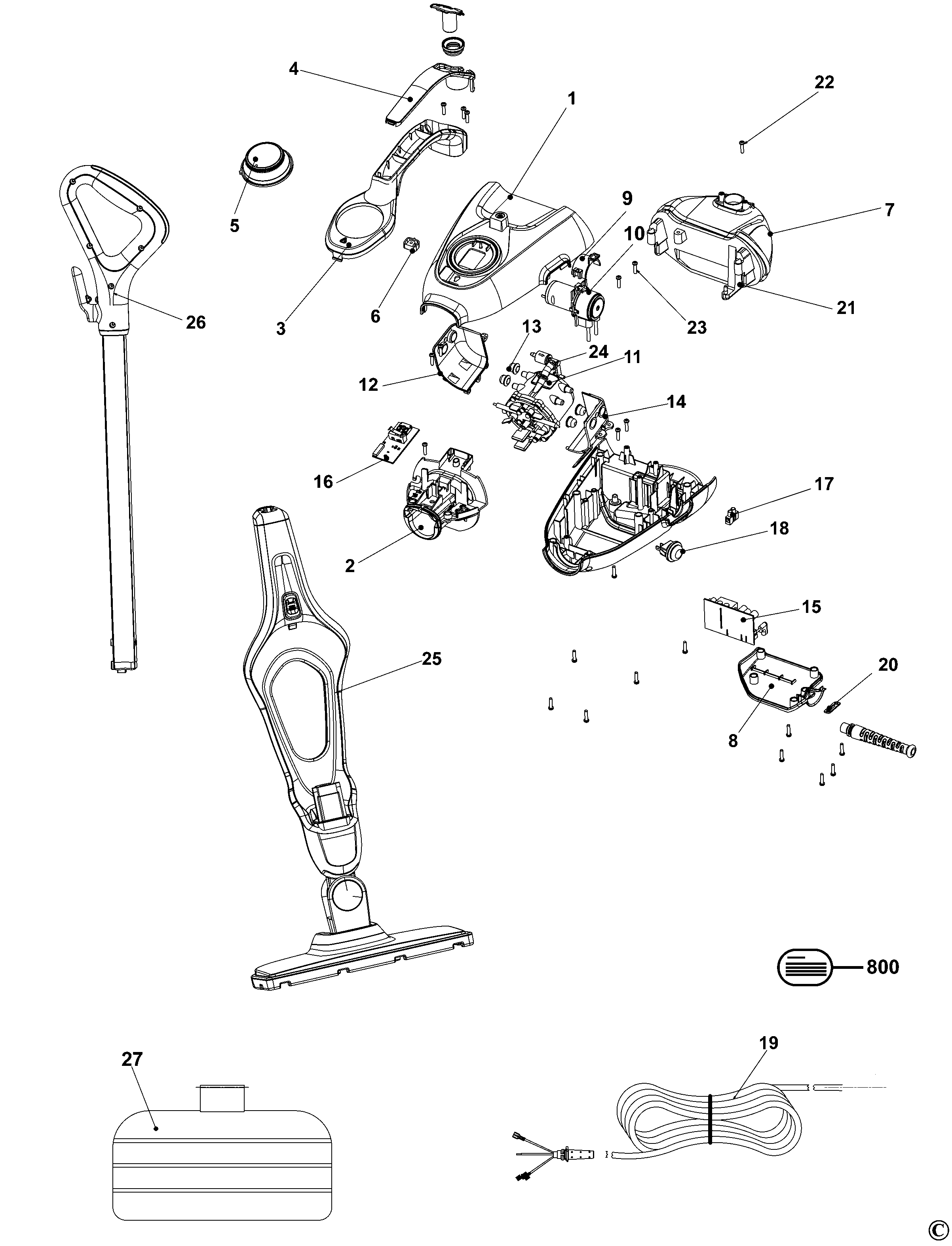

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING (90637063) 5370 RON
2 1 1 OUTLET (90638373) 3268 RON
3 1 1 HANDLE SA (90638922) 1933 RON
4 1 1 COVER (90639591) 1318 RON
5 1 1 DIAL PLATE (90619694) 588 RON
6 1 1 CLIP (90623773) 588 RON
7 1 1 TANK (90619686) 741 RON
8 1 1 COVER (90619691) 944 RON
9 1 1 CLAMP (90632999) 588 RON
10 1 1 PUMP SA (90624976) 11337 RON
11 1 1 90636779 - Indisponibil
11 1 1 BOILER SA (N888928) 25728 RON
12 1 1 BRACKET LH (90581691) 114 RON
13 1 4 RUBBER (90578187) 588 RON
14 1 1 BRACKET RH (90581692) 114 RON
15 1 1 PCB (90623068-01) 6688 RON
16 1 1 N581101 - Indisponibil
16 1 1 90623067 - Indisponibil
17 1 1 TERMINAL (90581491) 588 RON
18 1 1 SWITCH SA (90376599) 114 RON
19 1 1 90627849 - Indisponibil
19 1 1 CORDSET (N825060) 16689 RON
20 1 1 CLAMP CORD CORNER (329301-00) 558 RON
21 1 1 CLIP (90587265) 558 RON
22 1 23 SCREW (143062-02) 558 RON
22 1 1 SCREW (NA006018) 588 RON
23 1 2 SCREW (90595772-01) 588 RON
24 1 1 CLIP (90579511) 558 RON
25 1 1 BODY (90619679) 24962 RON
25 1 1 BODY (90637716) 30769 RON
26 1 1 HANDLE SA (90619683) 741 RON
27 1 2 PAD SA (90585868) 3466 RON
28 1 1 BRUSH (90603964) 12361 RON
29 1 1 HOLDER RUBBER (90586489) 3466 RON
31 1 1 HOSE SA (N524615) 10241 RON
31 1 1 HOSE SA (90576418) 10512 RON
31 1 1 HOSE SA (N524612) 12361 RON
32 1 1 PAD (90609979) 1318 RON
33 1 1 PAD SA (90585868) 3466 RON
58 1 1 HOSE SA (N530271) 28836 RON
58 1 1 90636827 - Indisponibil
58 1 1 90635962 - Indisponibil
59 1 1 PAD VELCRO (90638382) 2182 RON
64 1 1 90619680 - Indisponibil
64 1 1 90587015 - Indisponibil
64 1 1 HOSE SA (N524615) 10241 RON
800 1 1 RATING LABEL (90637611) 82 RON
