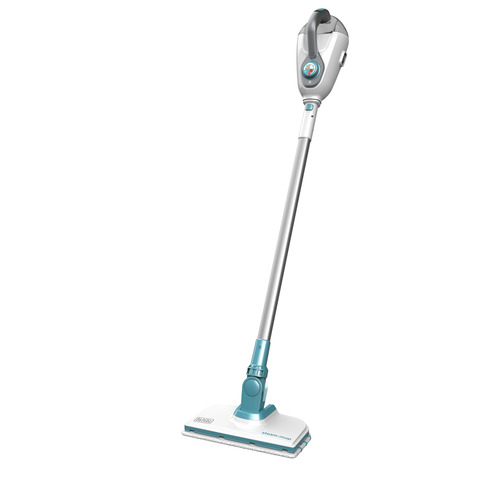

MOP CU ABUR BLACK+DECKER FSMH1300FX Type 3
[FSMH1300FX Type 3]

Imagini suplimentare

Click pentru a mari

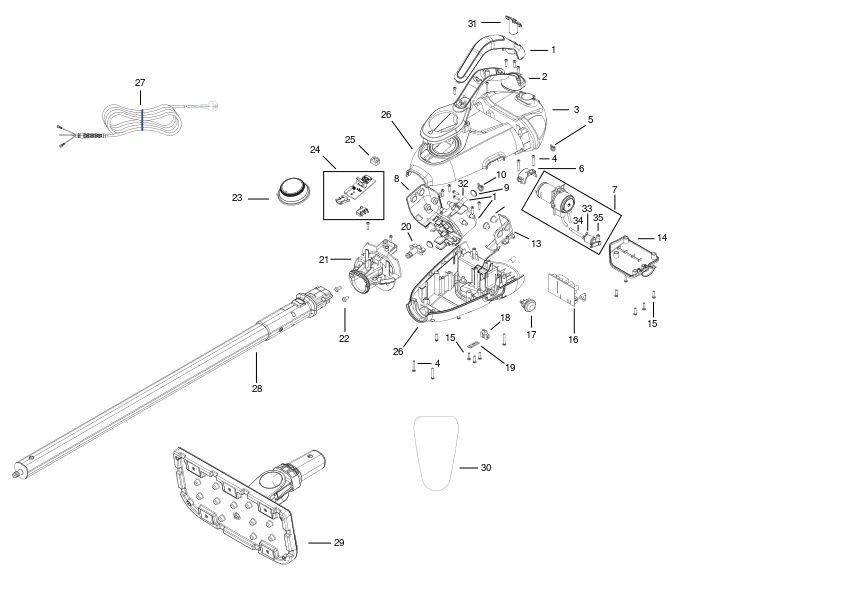

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)	Cumpara
1	1	1	HANDLE COVER (90629657)	11⁴ RON
2	1	1	HANDLE SA (90638923)	19³³ RON
3	1	1	TANK (90619686)	74¹ RON
4	1	7	SCREW (90595772-01)	5⁸⁸ RON
5	1	1	CLIP (90587265)	5⁵⁸ RON
6	1	1	CLAMP (90632999)	5⁸⁸ RON
7	1	1	PUMP SA (90624976)	113³⁷ RON
8	1	1	BRACKET LH (90581691)	11⁴ RON
9	1	1	CLIP (90579511)	5⁵⁸ RON
10	1	2	492141-00	-	Indisponibil
11	1	1	N814210	-	Indisponibil
12	1	4	RUBBER (90578187)	5⁸⁸ RON
13	1	1	BRACKET RH (90581692)	11⁴ RON
14	1	1	COVER (90619691)	9⁴⁴ RON
15	1	21	SCREW (143062-02)	5⁵⁸ RON
15	1	19	SCREW (NA006018)	5⁸⁸ RON
16	1	1	PCB (90623068-01)	66⁸⁸ RON
17	1	1	SWITCH SA (90376599)	11⁴ RON
18	1	1	TERMINAL (90581491)	5⁸⁸ RON
19	1	1	CLAMP CORD CORNER (329301-00)	5⁵⁸ RON
20	1	1	OUTLET (90619690)	25⁵⁶ RON
21	1	1	NOZZLE (N868588)	17⁷² RON
22	1	2	SCREW PLASTIC 4 * 8 (330065-04)	5⁵⁸ RON
23	1	1	DIAL PLATE (90619694)	5⁸⁸ RON
24	1	1	PCB (90623068-01)	66⁸⁸ RON
25	1	1	CLIP (90623773)	5⁸⁸ RON
26	1	1	HOUSING (90637063)	53⁷⁰ RON
27	1	1	CORDSET (N824997)	136⁹⁷ RON
28	1	1	TUBE SA (90630325)	166⁸⁹ RON
29	1	1	HEAD SA (N548300)	185⁶⁸ RON
30	1	1	N813517	-	Indisponibil
30	1	1	RATING PLATE (NA003661)	9⁴⁴ RON
31	1	1	CAP (90629658)	6⁶⁸ RON
32	1	1	PIPE (N839082)	5⁸⁸ RON
33	1	1	CLIP (90587265)	5⁵⁸ RON
34	1	1	PIPE (90622128)	5⁸⁸ RON
35	1	1	VALVE (90589659)	5⁵⁸ RON

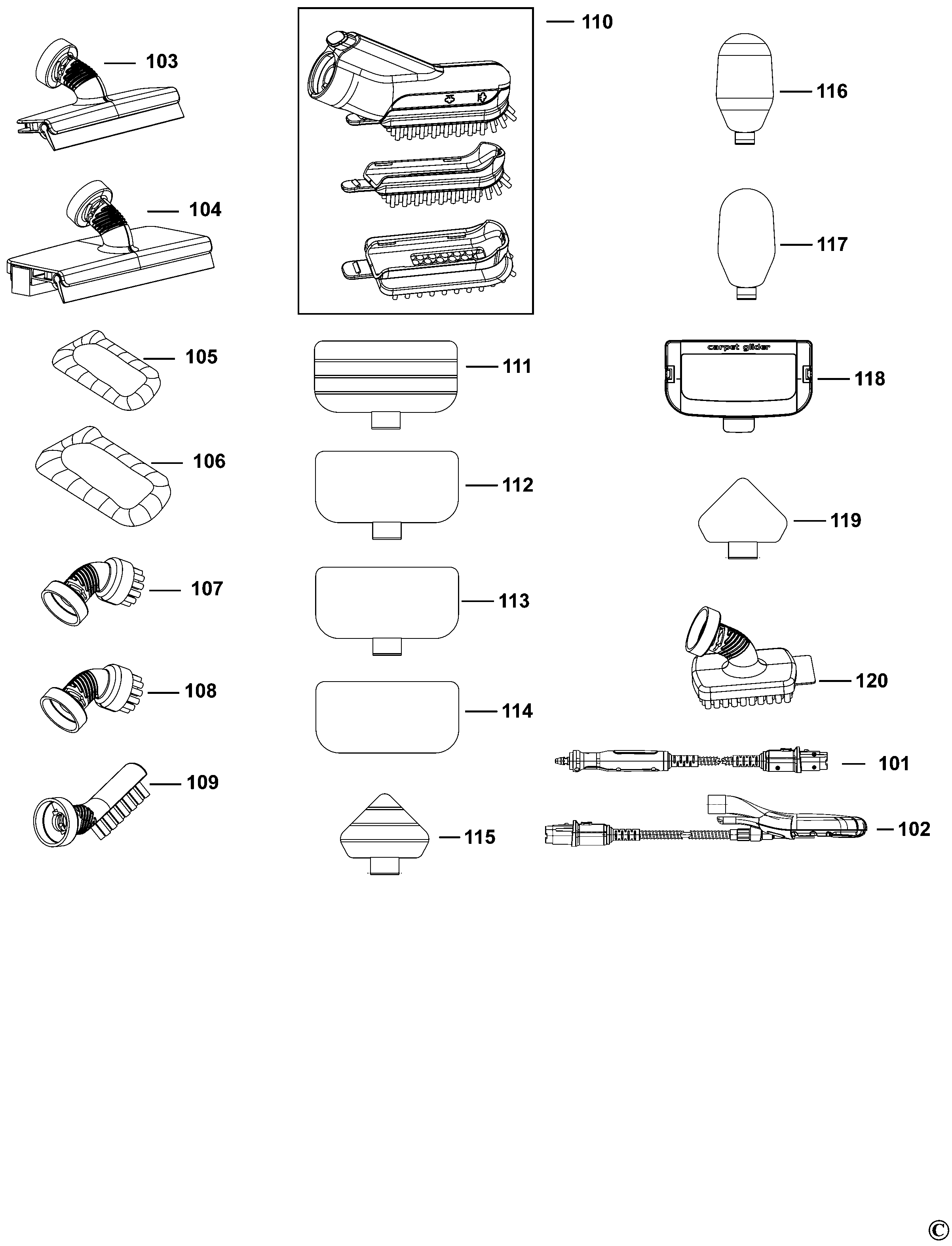

101	1	1	HOSE SA (N524615)	102⁴¹ RON
103	1	1	HOLDER RUBBER (90586489)	34⁶⁶ RON
105	1	1	PAD (90609979)	13¹⁸ RON
107	1	1	BRUSH (90586093-05)	17⁷² RON
109	1	1	TOOL BRUSH (90586474-00)	19³³ RON
111	1	1	PAD SA (90585868)	34⁶⁶ RON
