Top » Piese de schimb » PIESE BLACK & DECKER » BHSM1615 Type 1

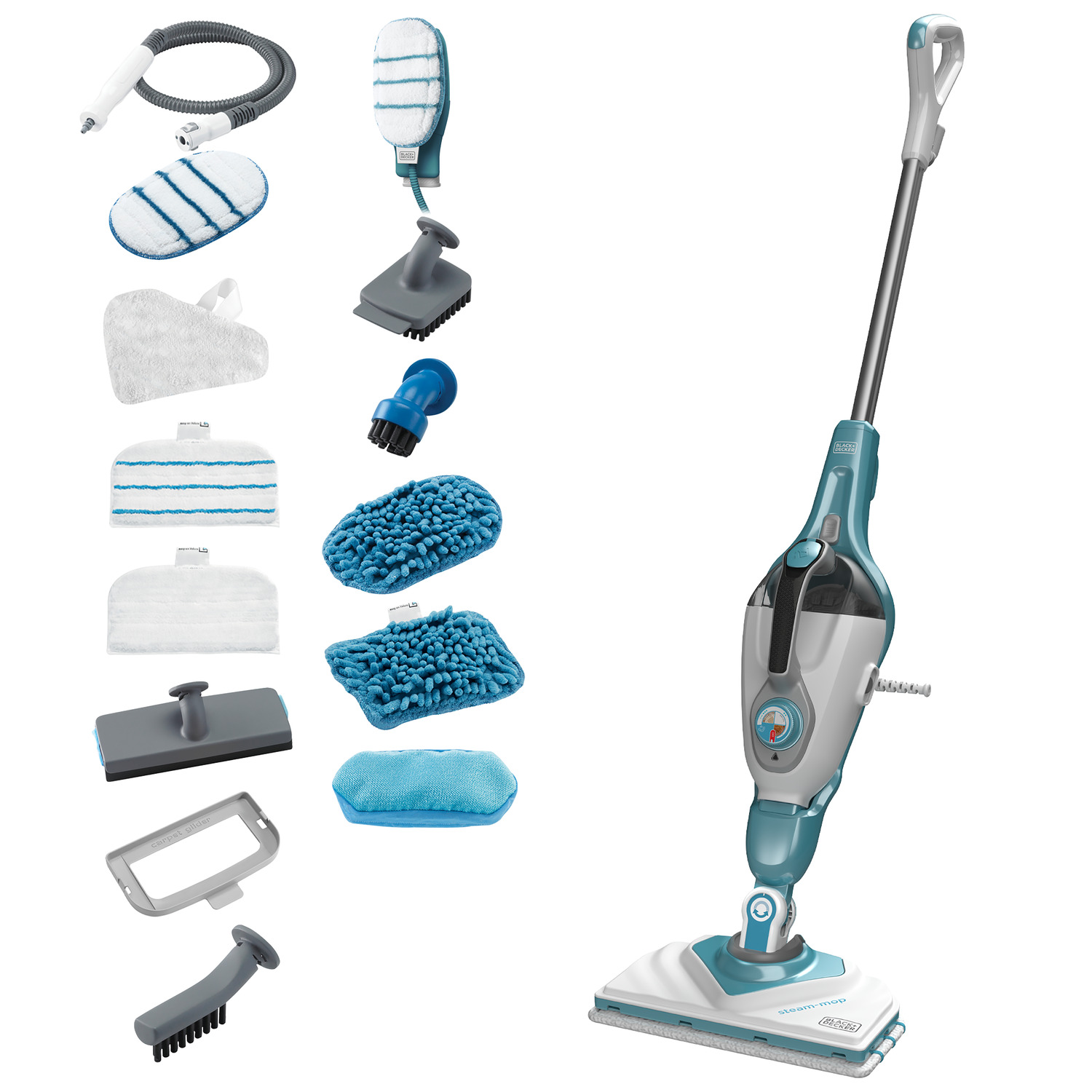

MOP CU ABUR BLACK+DECKER BHSM1615 Type 1
[BHSM1615 Type 1]
MOP CU ABUR BLACK+DECKER BHSM1615 Type 1
Click pentru a mari
Imagini suplimentare
MOP CU ABUR BLACK+DECKER BHSM1615 Type 1
Click pentru a mari
MOP CU ABUR BLACK+DECKER BHSM1615 Type 1
Click pentru a mari
MOP CU ABUR BLACK+DECKER BHSM1615 Type 1
Click pentru a mari

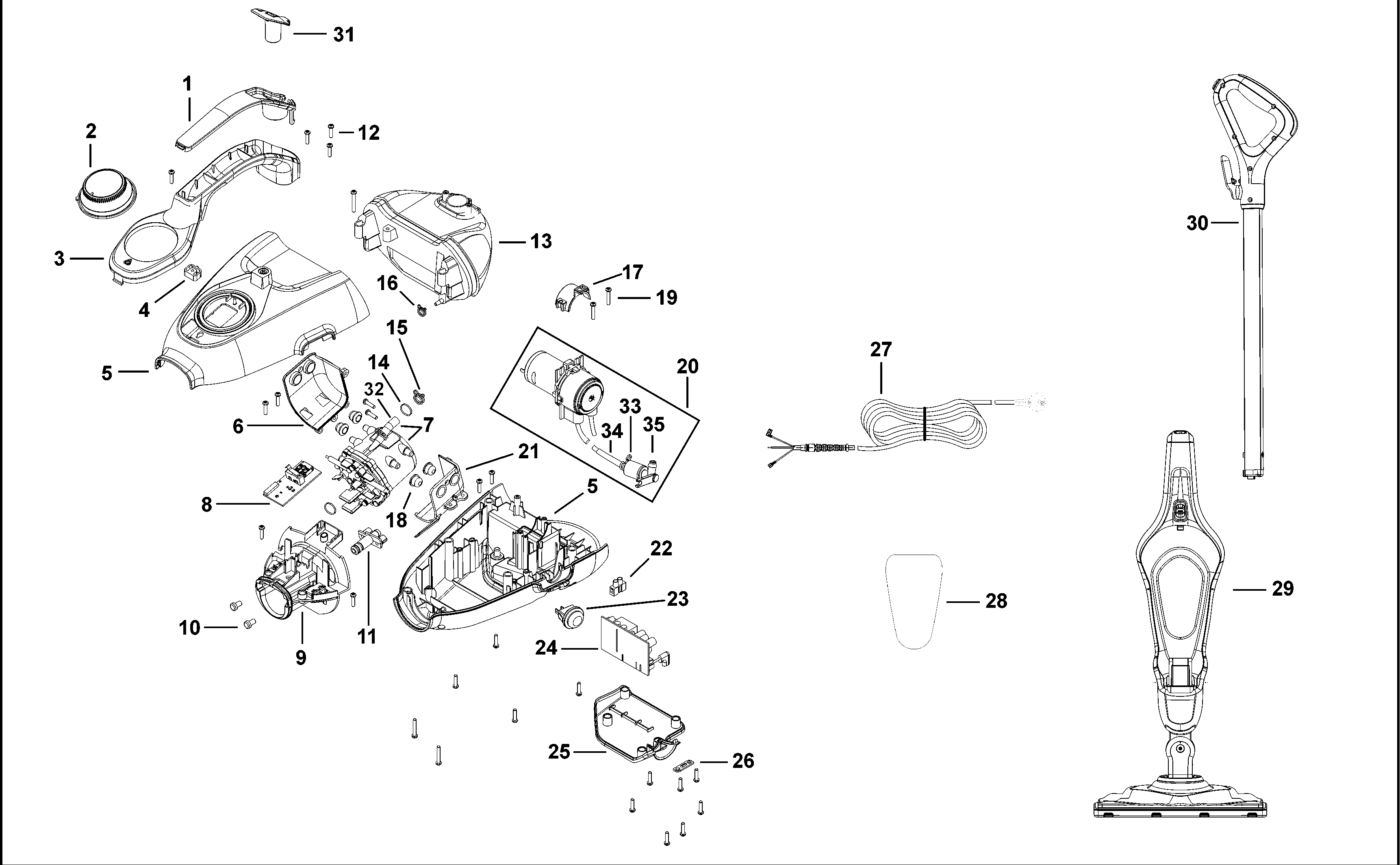

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 COVER (N850540) 1772 RON
1 1 1 COVER (N850987) 1772 RON
1 1 1 COVER (90639591) 1318 RON
2 1 1 DIAL PLATE (90619694) 588 RON
2 1 1 DIAL PLATE (N850522) 588 RON
2 1 1 DIAL PLATE (N850605) 588 RON
3 1 1 HANDLE SA (90638922) 1933 RON
4 1 1 CLIP (90623773) 588 RON
5 1 1 HOUSING (90637063) 5370 RON
6 1 1 BRACKET LH (90581691) 114 RON
7 1 1 N814210 - Indisponibil
7 1 1 BOILER SA (NA006404) 30769 RON
8 1 1 PCB (N618504) 741 RON
9 1 1 OUTLET (90619690) 2556 RON
10 1 2 SCREW PLASTIC 4 * 8 (330065-04) 558 RON
11 1 1 NOZZLE (N868588) 1772 RON
12 1 19 SCREW (143062-02) 558 RON
12 1 1 SCREW (NA006018) 588 RON
13 1 1 TANK (90619686) 741 RON
14 1 1 492141-00 - Indisponibil
15 1 1 CLIP (90579511) 558 RON
16 1 1 CLIP (90587265) 558 RON
17 1 1 CLAMP (90632999) 588 RON
18 1 4 RUBBER (90578187) 588 RON
19 1 7 SCREW (90595772-01) 588 RON
20 1 1 PUMP SA (90624976) 11337 RON
21 1 1 BRACKET RH (90581692) 114 RON
22 1 1 TERMINAL (90581491) 588 RON
23 1 1 SWITCH SA (90376599) 114 RON
24 1 1 PCB (90623068-01) 6688 RON
25 1 1 COVER (90619691) 944 RON
26 1 1 CLAMP CORD CORNER (329301-00) 558 RON
27 1 1 CORDSET (N824999) 16689 RON
28 1 1 RATING PLATE (N813513) 944 RON
29 1 1 N850566 - Indisponibil
29 1 1 N850988 - Indisponibil
29 1 1 BODY (NA007150) 33797 RON
29 1 1 BODY (NA007297) 33797 RON
29 1 1 BODY (NA007168) 25728 RON
30 1 1 HANDLE SA (N850970) 12361 RON
30 1 1 HANDLE SA (N807717) 741 RON
30 1 1 HANDLE SA (N850505) 741 RON
31 1 1 CAP (N850591) 588 RON
31 1 1 CAP (N850543) 588 RON
32 1 1 PIPE (N839082) 588 RON
33 1 1 CLIP (90587265) 558 RON
34 1 1 PIPE (90622128) 588 RON
35 1 1 VALVE (90589659) 558 RON
101 1 1 HOSE SA (N524615) 10241 RON
102 1 1 HOSE SA (N530271) 28836 RON
103 1 1 HOLDER RUBBER (90586489) 3466 RON
104 1 1 HOLDER RUBBER (90586490) 5031 RON
105 1 1 000000-04 - Indisponibil
106 1 1 PAD (90641029) 2182 RON
107 1 1 BRUSH (90586093-05) 1772 RON
108 1 1 BRUSH (90586093-08) 2182 RON
109 1 1 TOOL BRUSH (90586474-00) 1933 RON
110 1 1 000000-04 - Indisponibil
110 1 1 BRUSH (90603964) 12361 RON
111 1 1 PAD SA (90585868) 3466 RON
112 1 1 PAD (90594463) 5370 RON
113 1 1 000000-04 - Indisponibil
114 1 1 PAD (90622110) 1933 RON
115 1 1 000000-04 - Indisponibil
115 1 1 CLEANING PAD (90586861) 2795 RON
116 1 1 PAD VELCRO (90639611) 2182 RON
117 1 1 PAD VELCRO (90639613) 2556 RON
118 1 1 TOOL CARPET (90585491) 190 RON
119 1 1 PAD SA (90628784) 1933 RON
120 1 1 BRUSH (90588389-02) 3268 RON
