Top » Piese de schimb » PIESE BLACK & DECKER » LM2000 Type 1

MASINA DE TUNS IARBA BLACK+DECKER LM2000 Type 1
[LM2000 Type 1]
MASINA DE TUNS IARBA BLACK+DECKER LM2000 Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE TUNS IARBA BLACK+DECKER LM2000 Type 1
Click pentru a mari
MASINA DE TUNS IARBA BLACK+DECKER LM2000 Type 1
Click pentru a mari

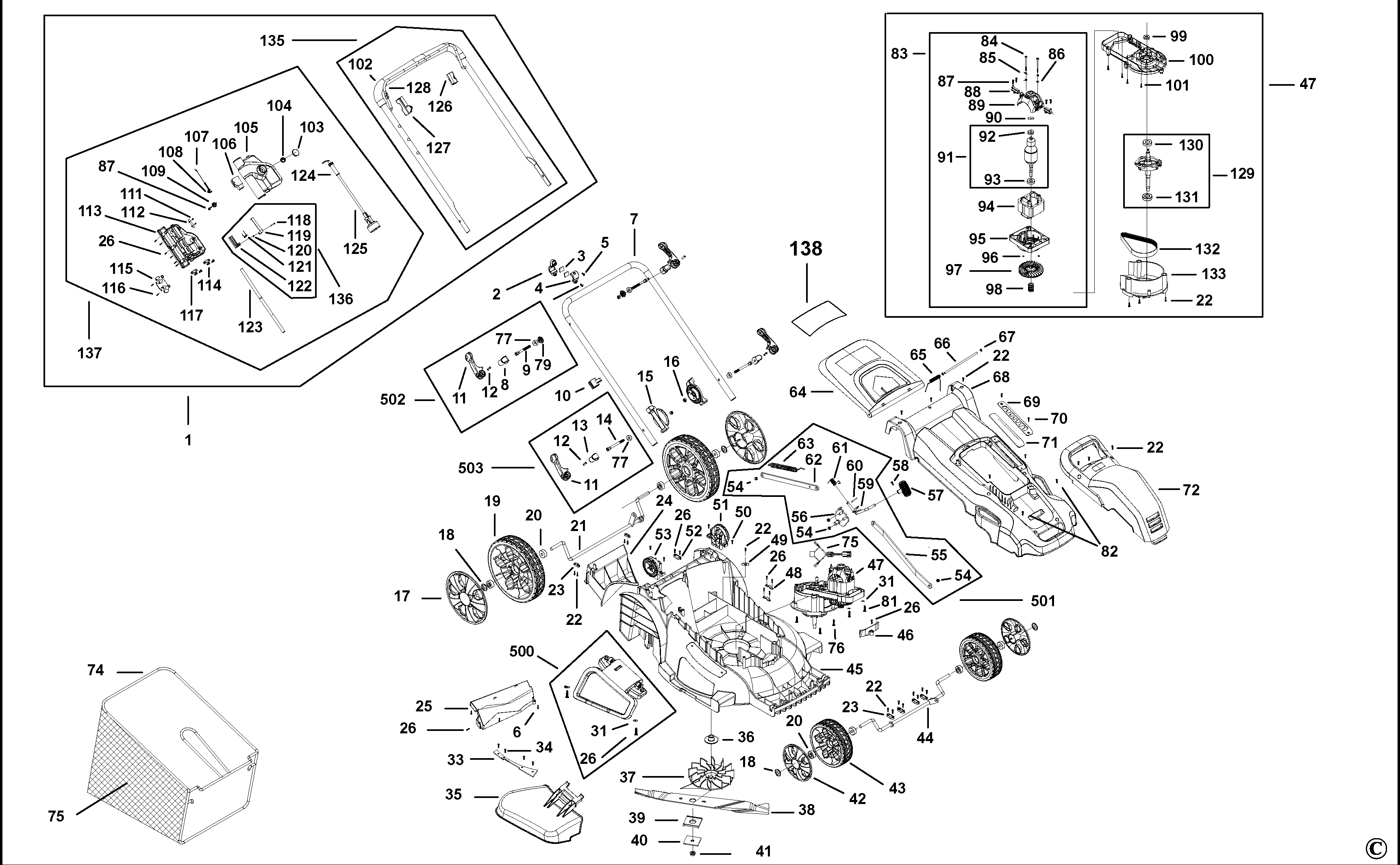

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE SA (1004728-73) 32327 RON
2 1 1 COVER (1004705-83) 588 RON
3 1 2 GASKET (1004705-84) 588 RON
4 1 1 COVER (1004705-85) 588 RON
5 1 1 SCREW (1004728-88) 588 RON
6 1 4 SCREW (1004707-03) 588 RON
7 1 1 LOWER HANDLE (1004728-77) 9012 RON
8 1 2 SEAT (1004705-89) 668 RON
9 1 2 CONNECTING ROD (1004705-91) 944 RON
10 1 1 CABLE GUIDE (1004705-95) 588 RON
11 1 4 FASTENER (1004729-66) 2556 RON
12 1 4 PIN (1004705-88) 588 RON
13 1 2 SEAT (1004705-98) 588 RON
14 1 1 CONNECTING ROD (1004706-00) 82 RON
15 1 2 ADJUSTER (1004706-01) 1933 RON
16 1 4 NUT (1004695-01) 558 RON
17 1 2 COVER (1004706-02) 1772 RON
18 1 4 RETAINER (1004706-03) 588 RON
19 1 2 WHEEL REAR (1004706-05) 10241 RON
20 1 8 COLLAR (1004706-04) 588 RON
21 1 1 AXLE REAR (1004706-06) 6688 RON
22 1 23 SCREW (1004728-89) 588 RON
23 1 2 RETAINING PLATE (1004706-07) 588 RON
24 1 1 INSERT (1004706-10) 4827 RON
25 1 1 GUIDE (1004706-18) 2556 RON
26 1 17 SCREW (1004707-27) 588 RON
31 1 2 WASHER (1004706-12) 588 RON
33 1 1 PLATE (1004706-78) 1630 RON
34 1 4 SCREW (1004728-25) 588 RON
35 1 1 SIDE EXTRUSION (1004728-34) 4827 RON
36 1 1 SLEEVE (1004729-11) 3268 RON
37 1 1 FAN (1004728-97) 5370 RON
38 1 1 BLADE (1004706-29) 10241 RON
39 1 1 BOARD (1004728-98) 82 RON
40 1 1 COVER (1004729-12) 114 RON
41 1 1 NUT (1004729-13) 588 RON
42 1 2 COVER (1004706-32) 944 RON
43 1 2 WHEEL FRONT (1004706-33) 6688 RON
44 1 1 AXLE FRONT (1004706-34) 6688 RON
45 1 1 CHASSIS (1004728-80) 55455 RON
46 1 1 SCREEN (1004729-00) 588 RON
47 1 1 MOTOR SA (1004728-91) 78485 RON
48 1 1 RETAINING PLATE (1004706-38) 588 RON
49 1 1 WASHER (1004706-64) 668 RON
50 1 4 SCREW (1004728-28) 588 RON
51 1 1 Gear (1004706-13) 2796 RON
52 1 1 CLAMP (1004728-94) 588 RON
53 1 1 Gear (1004706-11) 2796 RON
54 1 8 NUT (1004706-57) 588 RON
55 1 1 CONNECTING ROD (1004728-95) 2796 RON
56 1 1 SUPPORT PLATE (1004706-58) 3954 RON
57 1 1 ELEVATING HANDLE (1004706-66) 1630 RON
58 1 1 SCREW (1004706-65) 588 RON
59 1 1 LINK (1004706-59) 2182 RON
60 1 1 COTTER PIN (1004706-61) 588 RON
61 1 1 SPRING TORSION (1004706-60) 588 RON
62 1 1 CONNECTING ROD (1004729-02) 2556 RON
63 1 1 SPRING TORSION (1004706-63) 944 RON
64 1 1 GRASSFLAP (1004728-81) 741 RON
65 1 1 SPRING TORSION (1004706-83) 82 RON
66 1 1 SHAFT (1004728-51) 1630 RON
67 1 2 CIRCLIP (1004706-74) 588 RON
68 1 1 HOUSING UPPER (1004729-19) 23244 RON
69 1 1 ADJUSTER PLATE (1004706-54) 2182 RON
70 1 2 SCREW (1004706-55) 588 RON
71 1 1 SLEEVE (1004706-53) 82 RON
72 1 1 COVER (1004729-03) 10241 RON
73 1 1 GRASSBAG (1004728-09) 30769 RON
74 1 1 FRAME (1004705-97) 11337 RON
75 1 1 BATTERY CONNECTOR (1004728-84) 2556 RON
76 1 3 SCREW (1004729-14) 588 RON
77 1 4 PAD (1004729-04) 588 RON
79 1 2 LOCK KNOB (1004707-39) 3268 RON
81 1 2 SCREW (1004729-18) 588 RON
82 1 2 SCREW (1004728-62) 588 RON
83 1 1 MOTOR (1004728-90) 49827 RON
84 1 2 SCREW (1004729-51) 588 RON
85 1 2 WASHER SPRING (1004729-52) 588 RON
86 1 1 GASKET (1004729-53) 588 RON
87 1 5 SCREW (1004728-85) 588 RON
88 1 1 BRUSH PAIR (1004729-05) 2796 RON
89 1 1 SUPPORT (1004729-54) 1933 RON
90 1 1 WASHER SPRING (1004729-50) 588 RON
91 1 1 ARMATURE SA (1004729-30) 24962 RON
92 1 1 BEARING (1004729-48) 1772 RON
93 1 1 BEARING (1004729-49) 1933 RON
94 1 1 FIELD (1004729-01) 18568 RON
95 1 1 COVER (1004729-55) 3268 RON
96 1 2 NUT (1004729-56) 588 RON
97 1 1 FAN (1004730-16) 5370 RON
98 1 1 WHEEL (1004729-47) 2182 RON
99 1 1 BEARING (1004729-57) 114 RON
100 1 1 FRAME (1004729-58) 6688 RON
101 1 4 SCREW (1004729-59) 588 RON
102 1 1 FOAM (1004705-56) 1772 RON
103 1 1 BUTTON (1004705-58) 588 RON
104 1 1 SPRING (1004705-59) 588 RON
105 1 1 SWITCH COVER (1004728-75) 588 RON
106 1 1 SWITCH (1004728-76) 3268 RON
107 1 1 CABLE (1004729-38) 1318 RON
108 1 1 HOOK (1004729-36) 11337 RON
109 1 1 BOTTOM PLATE (1004705-64) 588 RON
111 1 2 BOLT (5170016-95) 588 RON
112 1 1 GUIDE (1004705-75) 588 RON
113 1 1 SWITCH COVER (1004728-82) 2796 RON
115 1 1 GUIDE BLOCK (1004728-83) 588 RON
116 1 2 SCREW (1004728-86) 588 RON
117 1 1 CABLE CLAMP (1004705-79) 588 RON
118 1 1 SCREW (1004694-84) 1229 RON
119 1 1 CATCHPLATE (1004694-83) 558 RON
120 1 1 NUT (1004694-87) 558 RON
121 1 1 SPRING TORSION (1004694-85) 558 RON
122 1 1 GUIDE (1004729-37) 588 RON
123 1 1 CABLE (1004729-10) 4355 RON
124 1 1 CORD PROTECTOR (1004728-87) 588 RON
125 1 1 CORDSET (1004729-06) 2796 RON
126 1 1 SLEEVE INSULATING (1004729-07) 1772 RON
127 1 1 SUPPORT (1004729-08) 82 RON
128 1 1 BAR (1004729-09) 3268 RON
129 1 1 BRAKE SA (1004729-64) 10241 RON
130 1 1 BEARING (1004729-60) 1933 RON
131 1 1 BEARING (1004729-61) 2182 RON
132 1 1 BELT (1004728-92) 3268 RON
133 1 1 BASEPLATE (1004729-62) 3268 RON
134 1 3 SCREW (1004728-89) 588 RON
135 1 1 HANDLE SA (1004729-35) 16689 RON
136 1 1 SWITCH LOCK-ON (1004729-32) 1933 RON
137 1 1 SWITCHBOX SA (1004729-63) 18568 RON
138 1 1 RATING PLATE (1004730-01) 668 RON
500 1 1 OUTLET (1004729-28) 741 RON
501 1 1 ADJUSTER HEIGHT (1004729-29) 15469 RON
502 1 1 CLAMP SA (1004729-33) 12361 RON
503 1 1 CLAMP SA (1004729-34) 6688 RON
