MASINA DE TUNS IARBA BLACK+DECKER GR348 Type 1
[GR348 Type 1]
MASINA DE TUNS IARBA BLACK+DECKER GR348 Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE TUNS IARBA BLACK+DECKER GR348 Type 1
Click pentru a mari

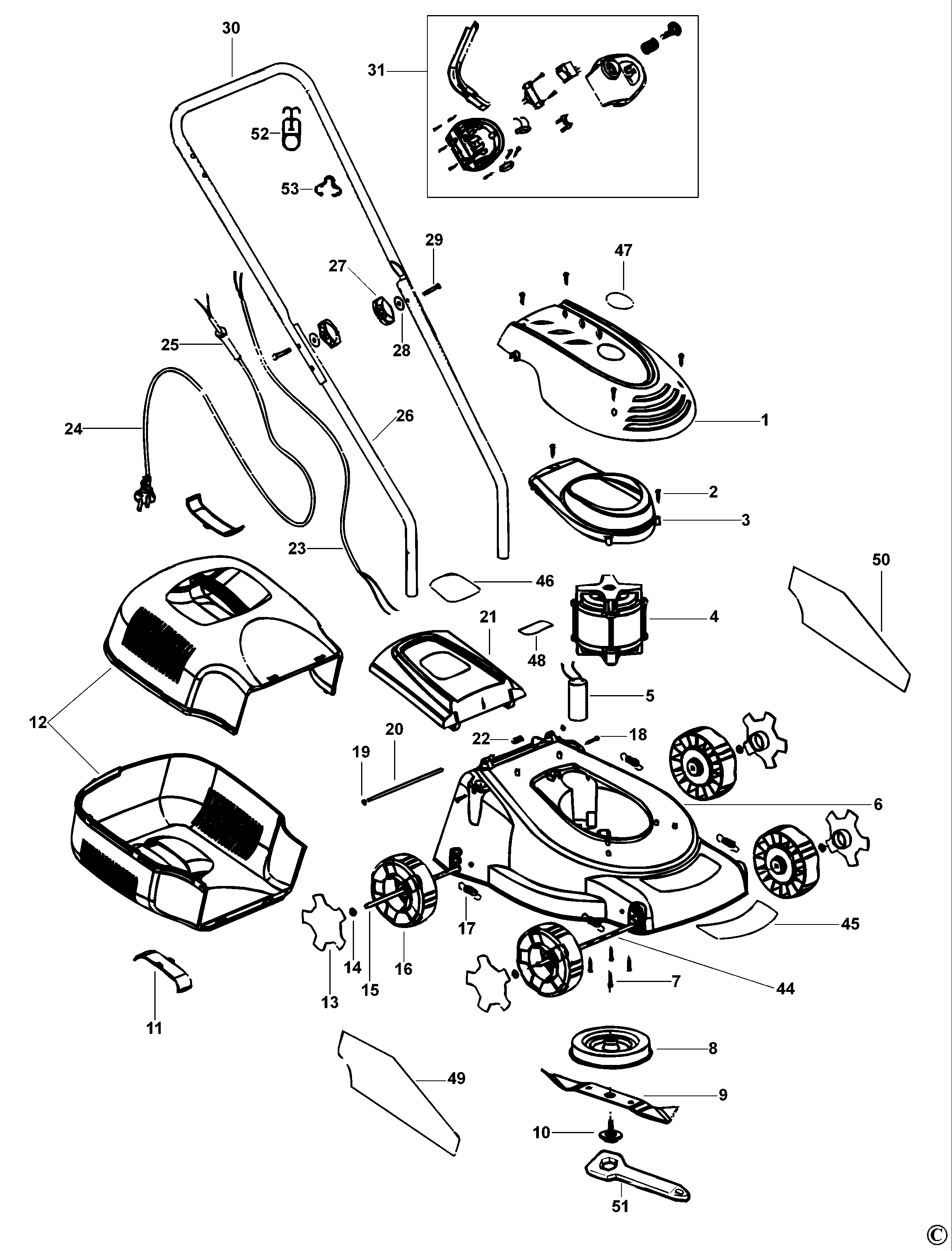

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 COVER (596093-00) 5591 RON
2 1 3 SCREW (596028-00) 558 RON
3 1 1 MOTOR COVER (596029-00) 2124 RON
4 1 1 MOTOR (596094-00) 62298 RON
5 1 1 596095-00 - Indisponibil
6 1 1 CUTTER DECK (596096-00) 15993 RON
7 1 4 SCREW (596033-00) 558 RON
8 1 1 FAN (596034-00) 190 RON
9 1 1 BLADE (596097-00) 3466 RON
10 1 1 BLADE BOLT (596036-00) 781 RON
11 1 2 INSERT (596037-00) 893 RON
12 1 1 GRASSBOX (596038-00) 7940 RON
13 1 4 COVER (596039-00) 781 RON
14 1 4 596040-00 - Indisponibil
15 1 1 AXLE REAR (596098-00) 1229 RON
16 1 4 WHEEL (596042-00) 4137 RON
17 1 4 SPRING (596043-00) 781 RON
18 1 2 SCREW (596044-00) 558 RON
19 1 2 RING (596045-00) 558 RON
20 1 1 ROD (596046-00) 893 RON
21 1 1 596047-00 - Indisponibil
22 1 1 SPRING (596048-00) 781 RON
23 1 1 MOTOR CABLE (596049-00) 893 RON
25 1 1 CORD PROTECTOR (596051-00) 558 RON
26 1 2 LOWER HANDLE SET (596052-00) 2347 RON
27 1 2 KNOB (596053-00) 781 RON
28 1 2 WASHER (596054-00) 558 RON
29 1 2 BOLT (596055-00) 558 RON
30 1 1 HANDLE UPPER (596056-00) 3466 RON
31 1 1 596088-00 - Indisponibil
44 1 1 AXLE FRONT (596099-00) 1229 RON
45 1 1 BRAND LABEL (596090-00) 893 RON
46 1 1 RATING PLATE (596100-00) 893 RON
47 1 1 WARNING LABEL (596092-00) 893 RON
48 1 1 RATING PLATE (596061-00) 893 RON
49 1 1 LABEL (596062-00) 190 RON
50 1 1 LABEL (596063-00) 190 RON
51 1 1 SPANNER BLADE (597564-00) 1229 RON
52 1 1 CABLE GUIDE (597565-00) 781 RON
53 1 1 CLIP CABLE (597566-00) 558 RON
