MASINA DE TUNS GAZON CU ACUMULATOR BLACK+DECKER GRC4736 Type H1
[GRC4736 Type H1]
MASINA DE TUNS GAZON CU ACUMULATOR BLACK+DECKER GRC4736 Type H1
Click pentru a mari
Imagini suplimentare
MASINA DE TUNS GAZON CU ACUMULATOR BLACK+DECKER GRC4736 Type H1
Click pentru a mari
MASINA DE TUNS GAZON CU ACUMULATOR BLACK+DECKER GRC4736 Type H1
Click pentru a mari

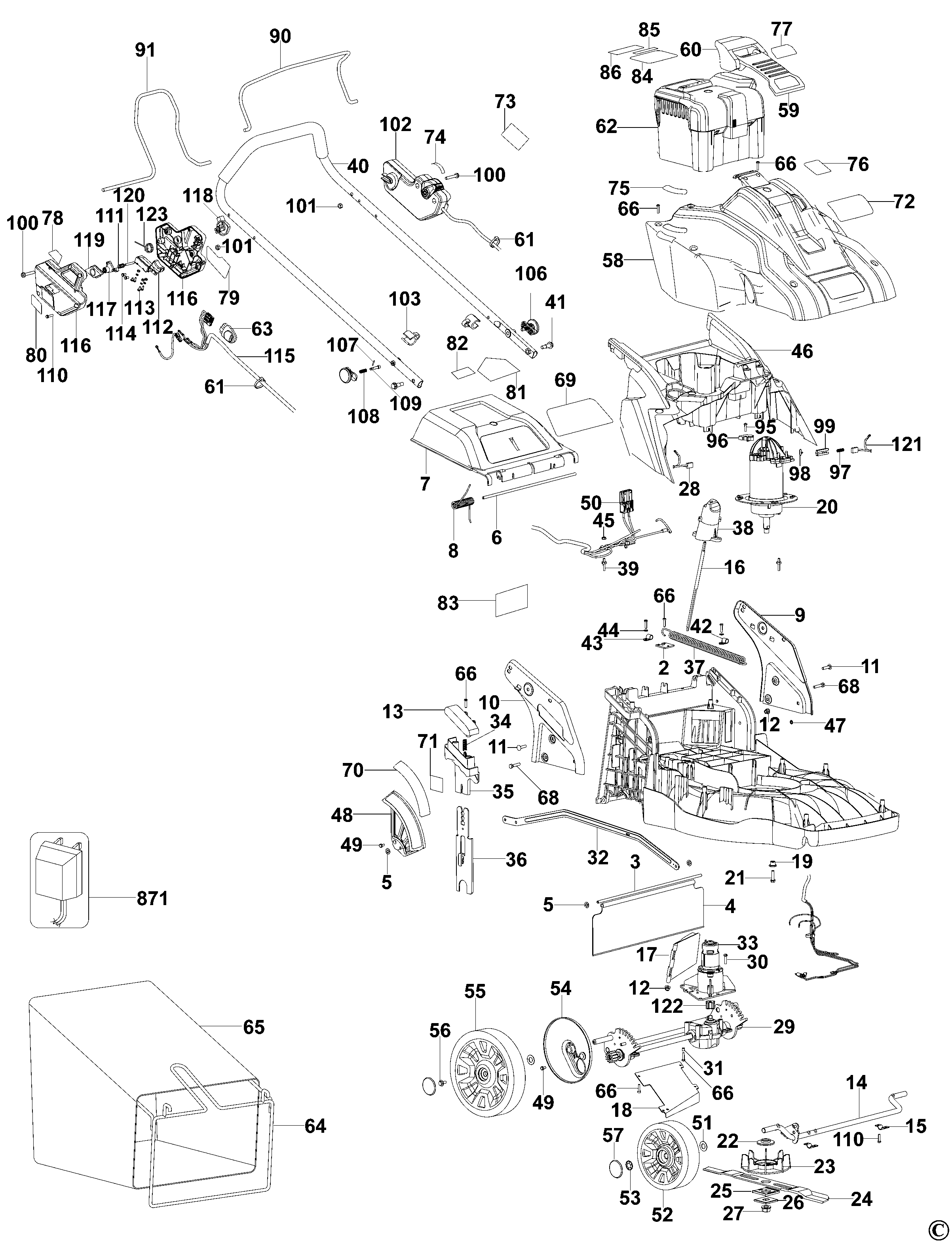

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 PLATE (90150275) 781 RON
3 1 1 ROD (90560546) 1229 RON
4 1 1 FLAP (90151278) 3466 RON
5 1 1 RETAINER (241658-03) 558 RON
6 1 1 ROD (90560547) 1229 RON
7 1 1 GRASSFLAP (90556984) 6821 RON
8 1 1 SPRING (242380-00) 190 RON
9 1 1 PLATE SA (90560820) 10512 RON
10 1 1 PLATE SA (90560821) 10512 RON
11 1 1 CARRIAGE BOLT (98128-25) 558 RON
12 1 1 NUT (90560803) 558 RON
13 1 1 HANDLE UPPER (90555016) 190 RON
14 1 1 AXLE (242364-05) 5591 RON
15 1 1 LIAISON (242363-00) 558 RON
16 1 1 ROD (90555668) 2347 RON
17 1 1 DOOR (90153286) 2347 RON
18 1 1 PLATE (90139684) 3018 RON
19 1 1 SPACER (241594-02) 781 RON
20 1 1 MOTOR SA (90589084) 86681 RON
20 1 1 MOTOR SA (90560494) 86681 RON
21 1 1 SCREW (243679-00) 558 RON
22 1 1 SPACER (680812-00) 105 RON
23 1 1 FAN (90547431) 3466 RON
24 1 1 BLADE METAL (90541433-01) 10512 RON
24 1 1 BLADE METAL (90541433) 12861 RON
25 1 1 WASHER INSULATING (90541434) 781 RON
26 1 1 SPACER (092715-00) 781 RON
26 1 1 92715-00 - Indisponibil
27 1 1 NUT (90561895) 781 RON
28 1 1 BRUSH LEAD (90560495) 3466 RON
29 1 1 TRANSMISSION SA (90563946) 59725 RON
30 1 1 SCREW (330019-73) 588 RON
31 1 1 SPACER (90558819) 781 RON
32 1 1 CONNECTING ROD (90136118) 3466 RON
33 1 1 MOTOR & GEARCASE (90555912) 25164 RON
34 1 1 SPRING (241656-00) 558 RON
35 1 1 HANDLE UPPER (90138316) 2347 RON
36 1 1 LEVER (90138315) 2795 RON
37 1 1 SPRING (90560321) 3466 RON
38 1 1 KNOB SA (90562058) 2347 RON
39 1 1 STUD (90551430) 781 RON
40 1 1 HANDLE UPPER (90560898) 15993 RON
41 1 1 BOLT (90104297) 781 RON
42 1 1 CLIP (90564441) 558 RON
43 1 1 CLIP (90564442) 558 RON
44 1 1 99361-10 - Indisponibil
45 1 1 LOCK NUT (241693-00) 558 RON
46 1 1 HOUSING SA (90153493-01) 15993 RON
47 1 1 WASHER SPECIAL (605111-00) 558 RON
48 1 1 INDICATOR (90556000) 2347 RON
49 1 1 SCREW (330045-13) 558 RON
50 1 1 CONNECTOR (90546217) 9282 RON
51 1 1 WASHER (242488-00) 558 RON
52 1 1 WHEEL (90556107) 4137 RON
53 1 1 Washer Lock (90568031) 558 RON
54 1 1 COVER (90555873) 1452 RON
55 1 1 WHEEL (90134361) 11519 RON
56 1 1 BOLT (90560897) 558 RON
57 1 1 CAP (90556609) 558 RON
58 1 1 HOUSING FRONT (90153492) 17335 RON
59 1 1 LEVER LOCK (90546535) 3466 RON
60 1 1 CLAMP (90546536) 2795 RON
61 1 1 TIE (239715-06) 558 RON
62 1 1 BATTERY 36V - 1.3AH (90556514-01) 216872 RON
62 1 1 BATTERY 3.6V - 1.2AH (90589023) 202891 RON
63 1 1 SAFETY KEY (90530033) 17335 RON
64 1 1 FRAME (90547825) 9282 RON
65 1 1 GRASSBAG (242501-05) 11519 RON
65 1 1 GRASSBAG (242501-06) 10512 RON
66 1 28 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
68 1 1 SCREW (488772-00) 558 RON
70 1 1 LABEL (90560411) 781 RON
71 1 1 LABEL (90560412) 558 RON
72 1 1 LABEL (90560413) 893 RON
73 1 1 LABEL (90560414) 558 RON
74 1 1 LABEL (90560415) 558 RON
75 1 1 LABEL (90560417) 558 RON
76 1 1 LABEL (90564186) 558 RON
77 1 1 LABEL (90564910) 558 RON
78 1 1 LABEL (90541668) 781 RON
79 1 1 WARNING LABEL (90541669) 781 RON
80 1 1 LABEL (90541818) 781 RON
81 1 1 WARNING LABEL (90508749) 893 RON
82 1 1 WARNING LABEL (90512672) 781 RON
83 1 1 WARNING LABEL (90508752) 781 RON
84 1 1 LABEL (90561303) 893 RON
85 1 1 LABEL (90560416) 781 RON
86 1 1 LABEL (90560422) 558 RON
90 1 1 ACTUATOR (90540793) 5591 RON
91 1 1 BAR (90149408) 4472 RON
95 1 1 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
96 1 1 BRUSH CAP (240808-01) 781 RON
97 1 1 BRUSH SPRING (242207-00) 558 RON
98 1 2 70162-00 - Indisponibil
99 1 1 BRUSH BOX (242274-00) 893 RON
100 1 1 SCREW (90541817) 781 RON
101 1 1 NUT (903693) 558 RON
102 1 1 SWITCH SA (90149389) 28296 RON
103 1 1 CABLE CLAMP (90560489) 781 RON
106 1 1 KNOB (90101537) 893 RON
107 1 1 SPRING (90564730) 558 RON
108 1 1 SPRING COMPRESSION (90101536) 558 RON
109 1 1 PIN (90101545) 893 RON
110 1 1 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
111 1 1 SPRING (90541477) 781 RON
112 1 1 SWITCH (638313-00) 7940 RON
113 1 1 SCREW MACHINE PAN HD (384127-01) 558 RON
114 1 2 SCREW (330019-10) 558 RON
115 1 1 CORD (90560294) 20467 RON
116 1 1 CLAMSHELL PAIR (90556171) 3466 RON
117 1 1 CRANK (90541597) 781 RON
118 1 1 CRANK (90541599) 781 RON
119 1 1 BUTTON (90541598) 781 RON
120 1 1 PIN (90541437) 781 RON
121 1 1 BRUSH & LEAD (90564126) 3466 RON
122 1 1 COUPLING (90558818) 5031 RON
123 1 1 SPRING TORSION (90568080) 781 RON
871 1 1 CHARGER (EURO) (90552113) 32770 RON
