MASINA DE TUNS GAZON CU ACUMULATOR BLACK+DECKER CLM3820 Type 1
[CLM3820 Type 1]
MASINA DE TUNS GAZON CU ACUMULATOR BLACK+DECKER CLM3820 Type 1
Click pentru a mari
Imagini suplimentare
MASINA DE TUNS GAZON CU ACUMULATOR BLACK+DECKER CLM3820 Type 1
Click pentru a mari
MASINA DE TUNS GAZON CU ACUMULATOR BLACK+DECKER CLM3820 Type 1
Click pentru a mari

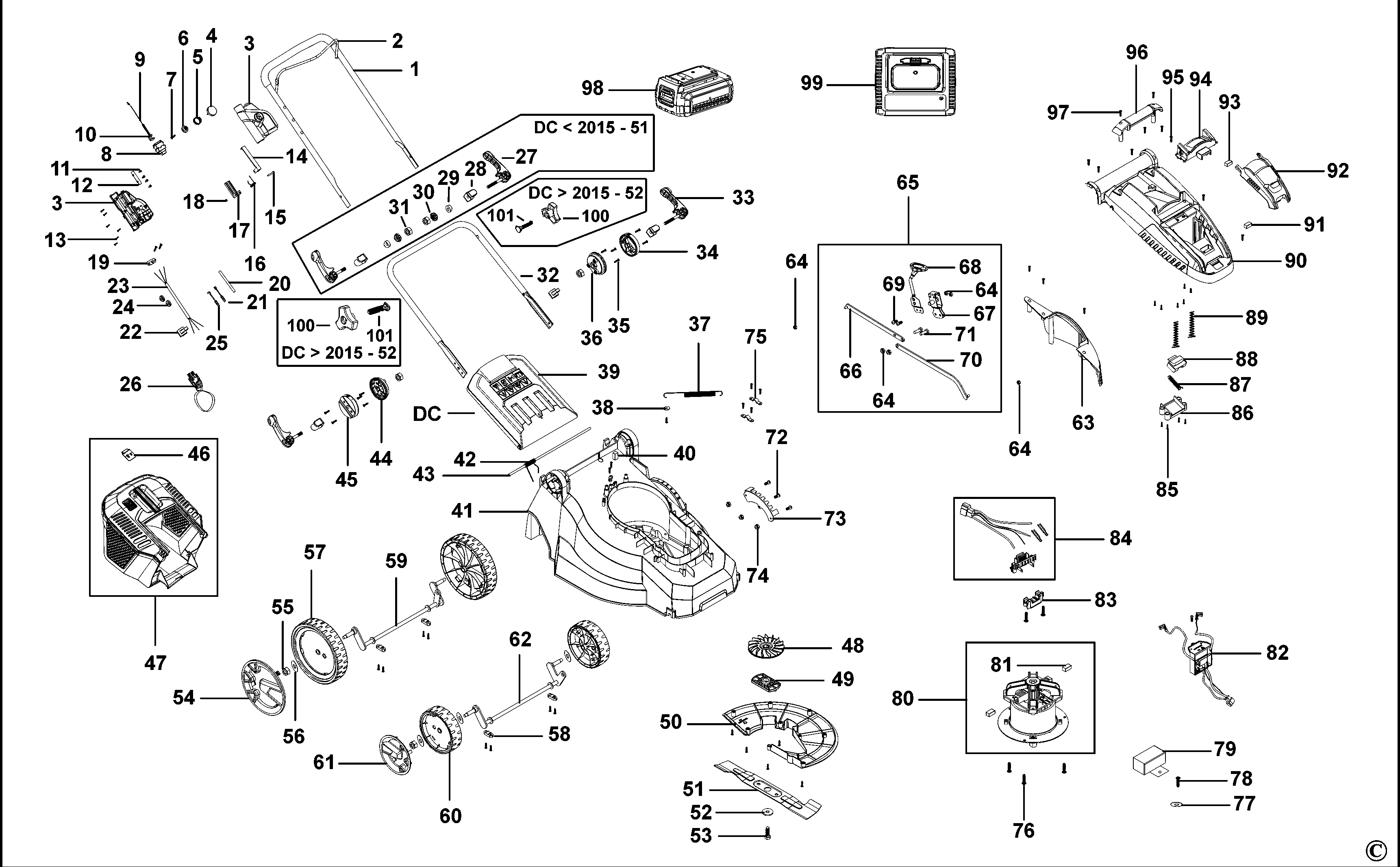

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE TUBE UPPER (1004694-70) 12861 RON
2 1 1 LEVER (1004694-71) 4137 RON
3 1 1 SWITCH COVER (1004694-72) 2347 RON
4 1 1 BUTTON (1004694-73) 558 RON
5 1 1 SPRING (1004694-74) 558 RON
6 1 1 BUTTON (1004694-75) 558 RON
7 1 1 SCREW (1004694-76) 558 RON
8 1 1 SWITCH (1004694-77) 6821 RON
9 1 1 CABLE SA (1004694-78) 14315 RON
10 1 1 CATCH (1004694-79) 558 RON
11 1 4 SCREW (1004694-80) 781 RON
12 1 1 CLAMP (1004694-81) 558 RON
13 1 49 SCREW (1004694-82) 2347 RON
14 1 1 CATCHPLATE (1004694-83) 558 RON
15 1 1 SCREW (1004694-84) 1229 RON
16 1 1 SPRING TORSION (1004694-85) 558 RON
17 1 1 GUIDE (1004694-86) 558 RON
18 1 1 NUT (1004694-87) 558 RON
19 1 2 CABLE CLAMP (1004694-88) 558 RON
20 1 1 TUBE (1004694-89) 558 RON
21 1 1 CONNECTING WIRE (1004694-90) 558 RON
22 1 2 CABLE GUIDE (1004694-91) 1452 RON
23 1 1 CABLE (1004694-92) 10512 RON
24 1 2 BUSHING (1004694-93) 558 RON
25 1 1 CONNECTING WIRE (1004694-94) 1452 RON
26 1 1 KEY (1004694-95) 3018 RON
27 1 2 LEVER (1004694-96) 5591 RON
28 1 4 PIVOT BLOCK (1004694-97) 2124 RON
29 1 2 WASHER (1004694-98) 781 RON
30 1 2 KNOB (1004695-00) 781 RON
31 1 4 NUT (1004695-01) 558 RON
32 1 1 HANDLE TUBE LOWER (1004695-02) 9282 RON
33 1 2 LEVER (1004695-03) 5591 RON
34 1 1 ADJUSTER HEIGHT LH (1004695-04) 558 RON
35 1 13 SCREW (1004695-05) 190 RON
36 1 1 ADJUSTER HEIGHT LH (1004695-06) 190 RON
37 1 1 SPRING (1004695-07) 1229 RON
38 1 1 WASHER (1004695-08) 558 RON
39 1 1 REAR FLAP (1004695-09) 5591 RON
40 1 1 STOP RUBBER (1004695-10) 558 RON
41 1 1 HOUSING (1004695-11) 39145 RON
42 1 1 SPRING TORSION (1004695-12) 781 RON
43 1 1 SHAFT (1004695-13) 105 RON
44 1 1 ADJUSTER HEIGHT RH (1004695-14) 190 RON
45 1 1 ADJUSTER HEIGHT RH (1004695-15) 190 RON
46 1 1 INDICATOR (1004695-16) 558 RON
47 1 1 GRASSBOX SA (1004695-17) 1891 RON
48 1 1 FAN (1004695-18) 2795 RON
49 1 1 BLADE MOUNT (1004695-19) 1788 RON
50 1 1 HOUSING LOWER (1004695-20) 4137 RON
51 1 1 BLADE (1004695-21) 7940 RON
52 1 1 BLADE CLAMP (1004695-22) 105 RON
53 1 1 BLADE BOLT (1004695-23) 781 RON
54 1 2 CAP (1004695-24) 1788 RON
55 1 4 LOCK NUT (1004695-25) 558 RON
56 1 4 WASHER (1004695-26) 558 RON
57 1 2 WHEEL REAR (1004695-27) 4472 RON
58 1 4 RETAINER (1004695-28) 558 RON
59 1 1 AXLE REAR (1004695-29) 11519 RON
60 1 2 WHEEL FRONT (1004695-30) 2795 RON
61 1 2 CAP (1004695-31) 105 RON
62 1 1 AXLE FRONT (1004695-32) 10512 RON
63 1 1 HOUSING LH (1004695-33) 3018 RON
64 1 6 LOCK NUT (1004695-34) 558 RON
65 1 1 ADJUSTER HEIGHT (1004695-35) 7940 RON
66 1 1 CONNECTING ROD (1004695-36) 2795 RON
67 1 1 CONNECTOR (1004695-37) 3018 RON
68 1 1 ELEVATING HANDLE (1004695-38) 781 RON
69 1 2 SCREW (1004695-39) 558 RON
70 1 1 CONNECTING ROD (1004695-40) 3018 RON
71 1 2 BOLT (1004695-41) 558 RON
72 1 1 SCREW (1004695-42) 558 RON
73 1 1 ADJUSTER PLATE (1004695-43) 3018 RON
74 1 3 NUT (1004695-44) 558 RON
75 1 2 CLAMP (1004695-45) 558 RON
76 1 3 SCREW (1004695-46) 558 RON
77 1 1 WASHER (1004695-47) 558 RON
78 1 1 SCREW (1004695-48) 558 RON
79 1 1 RESISTOR (1004695-49) 3466 RON
80 1 1 MOTOR SA (1004695-50) 102451 RON
81 1 2 BRUSH & HOLDER (1004695-51) 4137 RON
82 1 1 PCB (1004695-52) 28296 RON
82 1 1 PCB (1004745-63) 38463 RON
83 1 1 CLAMP (1004695-53) 558 RON
84 1 1 TERMINAL SA (1004746-47) 32327 RON
84 1 1 TERMINAL SA (1004695-54) 4137 RON
85 1 4 SCREW (1004695-55) 558 RON
86 1 1 CATCHPLATE (1004695-56) 781 RON
87 1 1 SPRING (1004695-57) 558 RON
88 1 1 CATCH (1004695-58) 781 RON
89 1 2 SPRING (1004695-59) 558 RON
90 1 1 HOUSING UPPER (1004695-60) 15993 RON
91 1 1 STOP RUBBER (1004695-61) 558 RON
92 1 1 BATTERY COVER (1004695-62) 4472 RON
93 1 1 BLOCK (1004695-63) 558 RON
94 1 1 HINGE (1004695-64) 1117 RON
95 1 2 SCREW (1004695-65) 558 RON
96 1 1 HANDLE (1004695-66) 893 RON
97 1 2 SCREW (1004695-67) 558 RON
98 1 1 BATTERY 36V - 2.0AH - 72WH (N694215) 78485 RON
98 1 1 36V Batteries (90604558) 112630 RON
98 1 1 90624732 - Indisponibil
99 1 1 CHARGER 36V (90616337-02) 44688 RON
99 1 1 CHARGER 36V (90567393-04) 42277 RON
99 1 1 90567393-06 - Indisponibil
100 1 2 KNOB (1004701-26) 668 RON
101 1 2 BOLT (1004701-19) 668 RON
